Wipers - Updated Diagnostics Pulse & Standard
89Oldsmobile10SUBJECT: SERVICE MANUAL UPDATE - SECTION 8A, WINDSHIELD WIPER DIAGNOSIS
MODELS/YEARS: 1989 CUTLASS SUPREME MODELS
NUMBER: 89-T-123
CORP. REF. NO: 938124
DATE: August 1989
SECTION: 8A

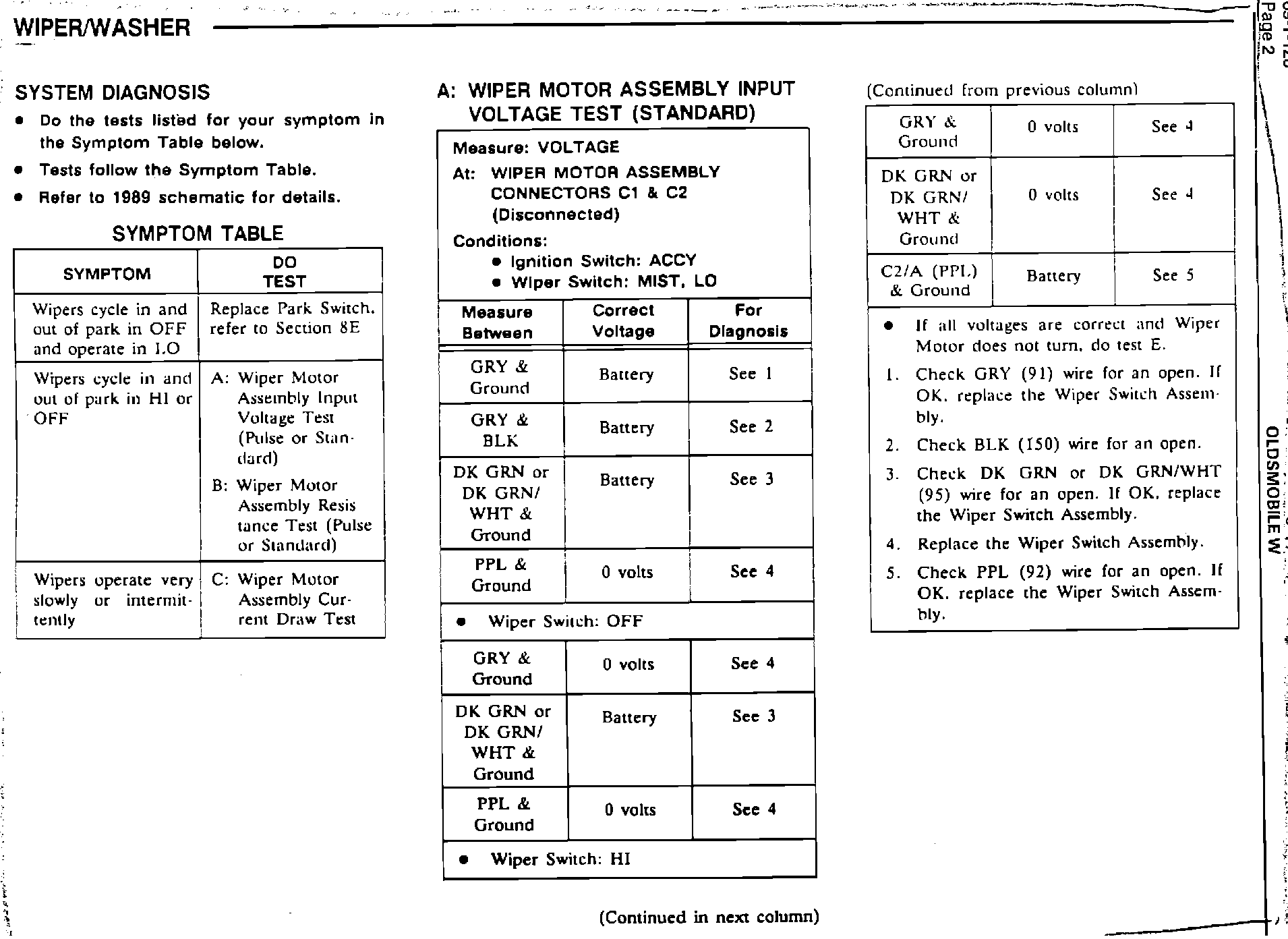

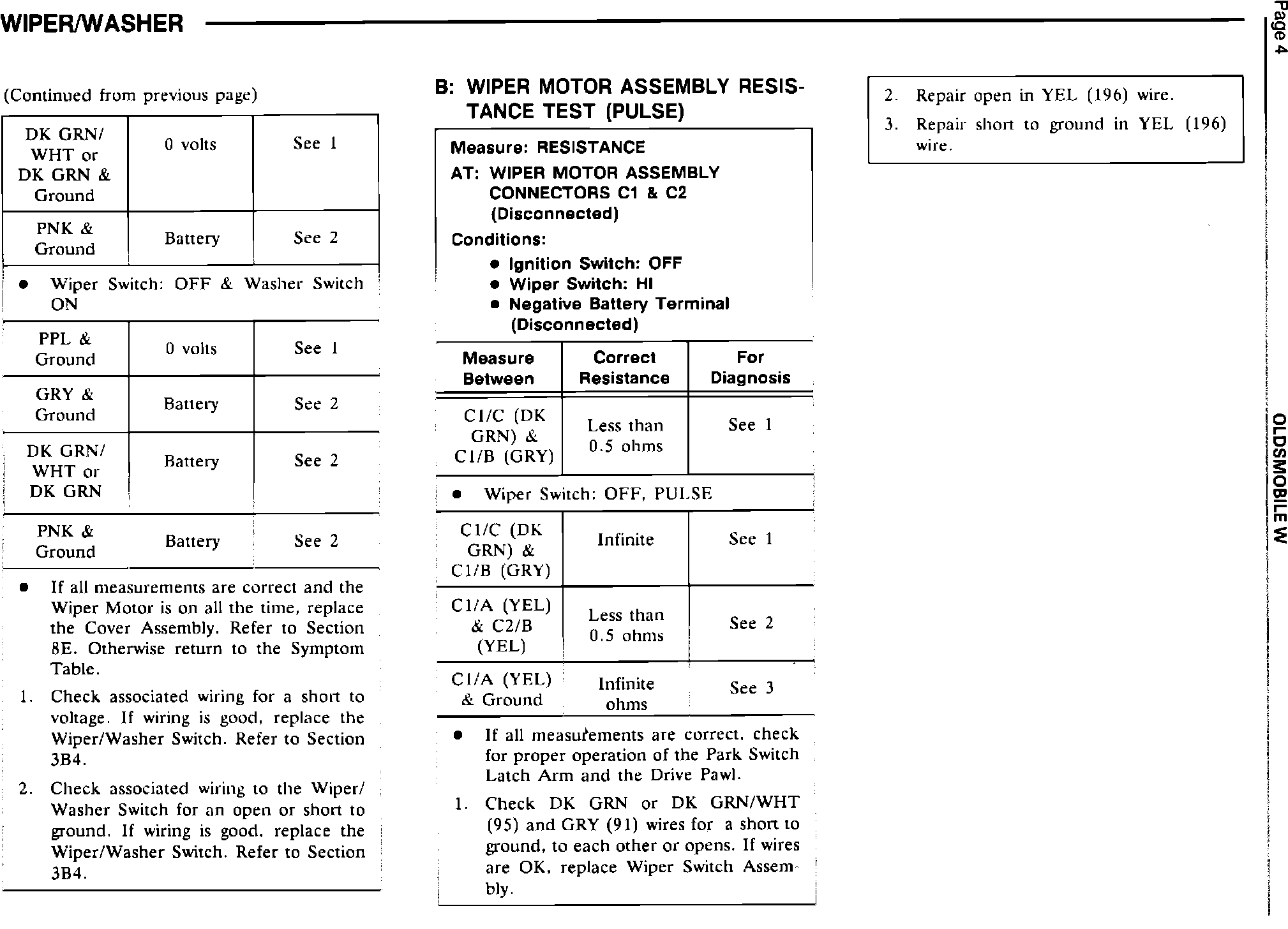

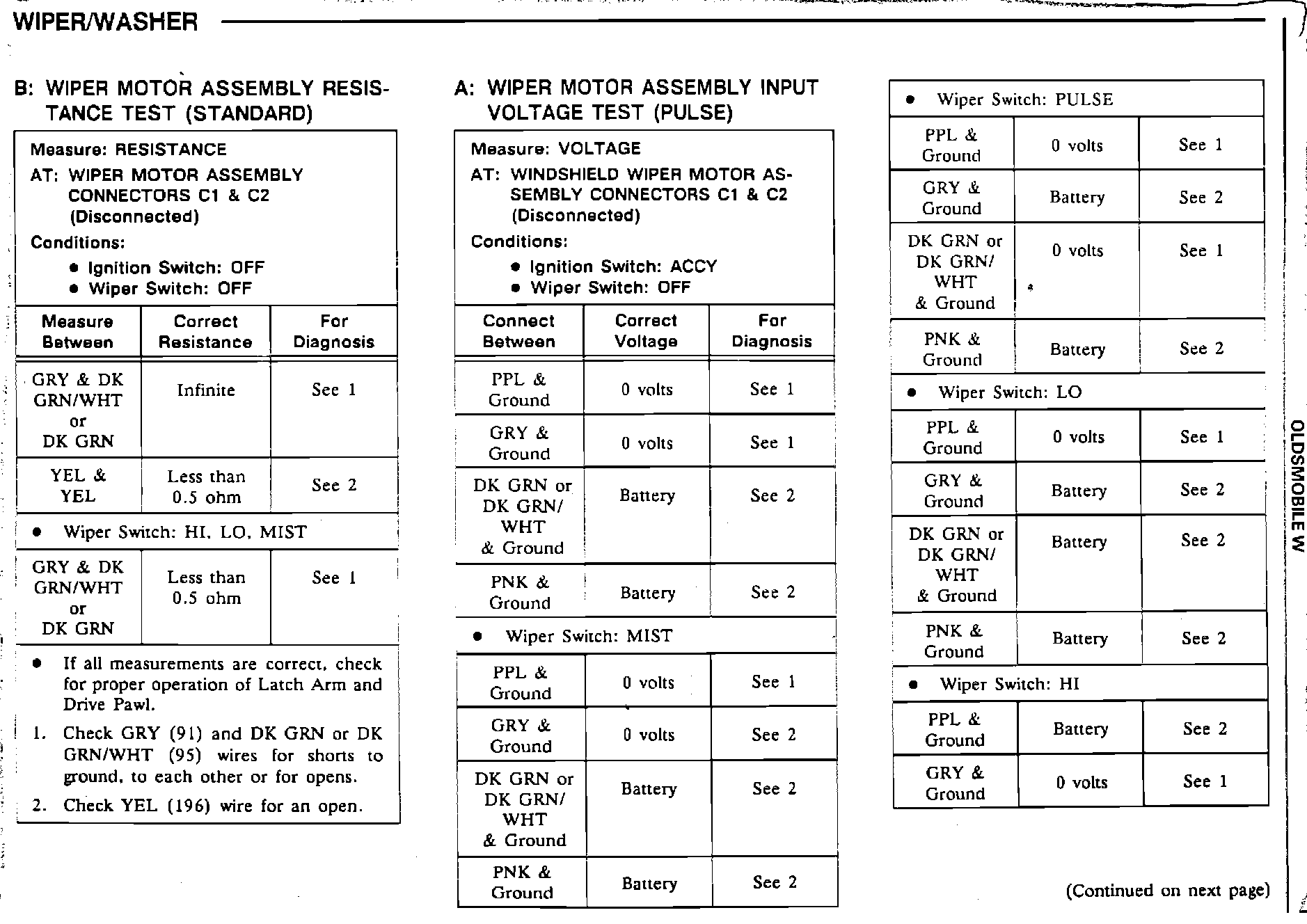

Information has been developed to provide complete windshield wiper diagnosis in Section 8A for the following Service Manual. Note that these pages affect both Standard and Pulse Windshield Wiper Systems.
1989 Oldsmobile Cutlass Supreme Pages 8A-90-1 through
8A-90-3
Pages 8A-91-2 through 8A-91-4
