Locks - Manual Update Illuminated Cylinder & Assembly
89Oldsmobile10SUBJECT: SERVICE MANUAL UPDATE, SECTION 8A AND 10 ILLUMINATED LOCK CYLINDER AND LOCK ASSEMBLY (NEW PROCEDURE)
MODELS/YEARS: 1989 CUTLASS SUPREME
NUMBER: 89-T-124
CORP. REF. NO: 931041R 938115R
DATE: August 1989
SECTION: 8A, 10
Figure 1:
Figure 2:

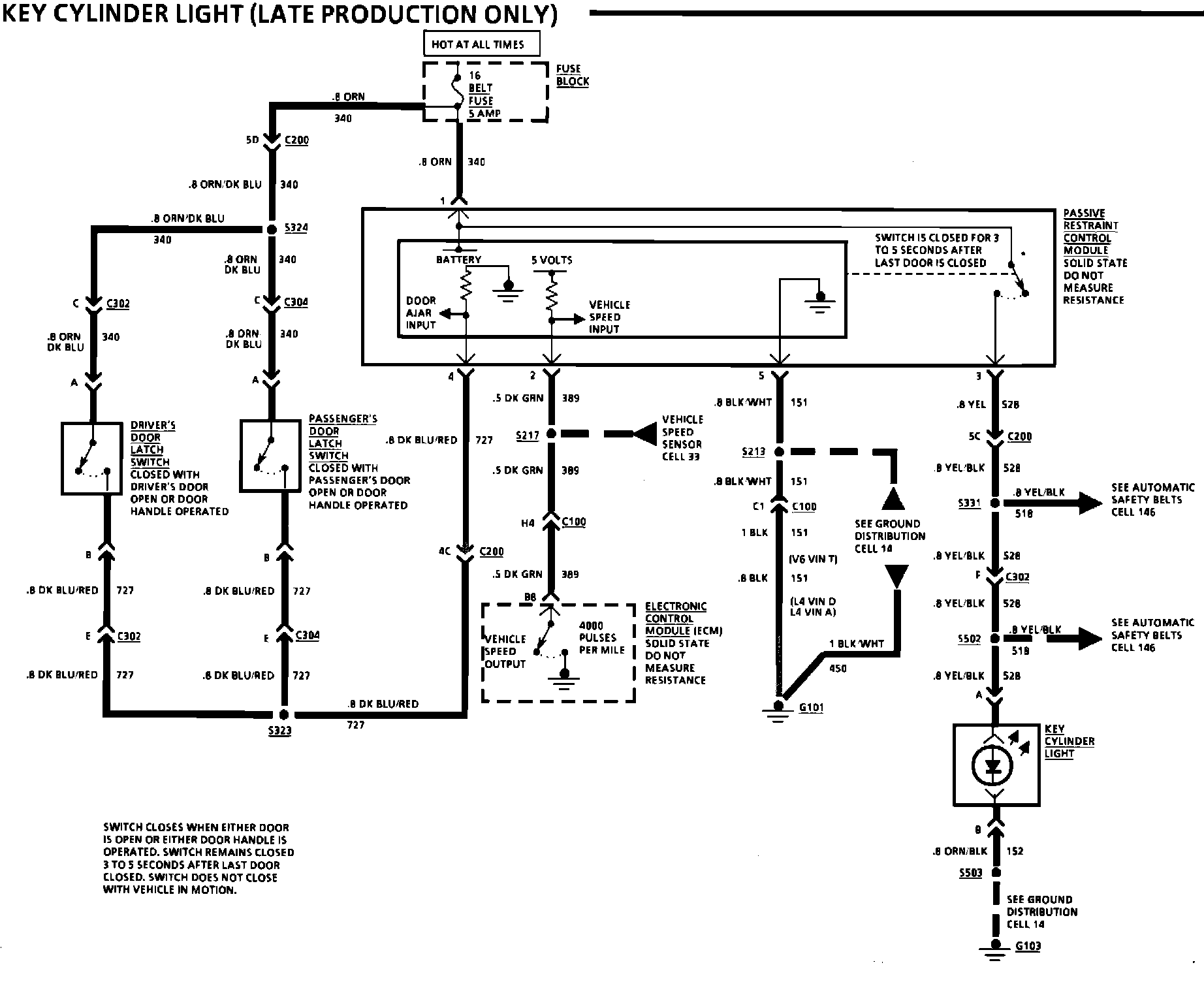

This bulletin is being issued to add diagnosis (see page 3 and 4) and replacement procedures for the illuminated door lock cylinder and lamp assembly. Please mark a reference to this bulletin in the Table of Contents in Section 8A and Section 10, page 10-5-12.

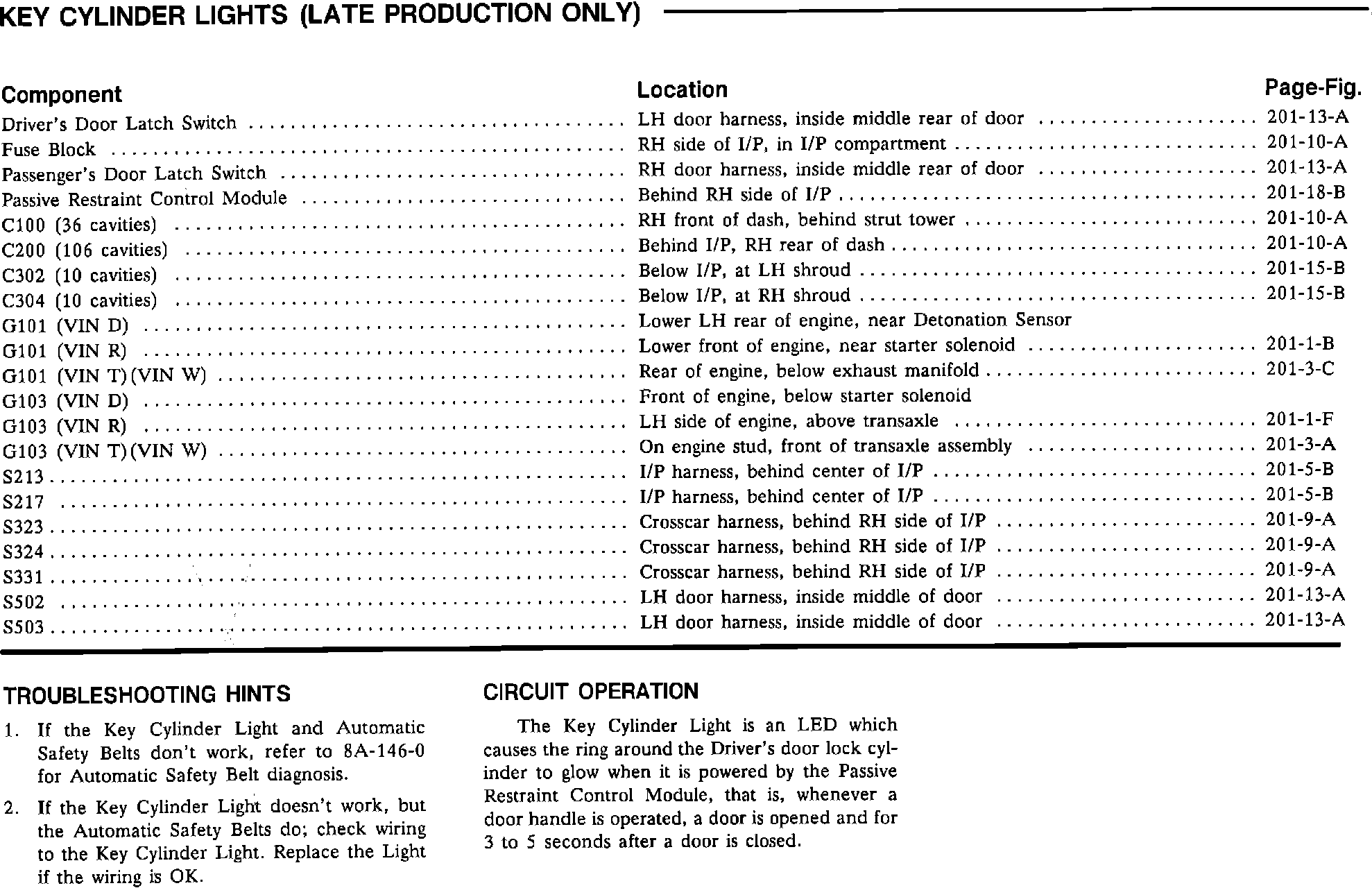

IMPORTANT: The illuminated door lock cylinder light was added to vehicles starting with VIN KD375076.
REMOVE OR DISCONNECT

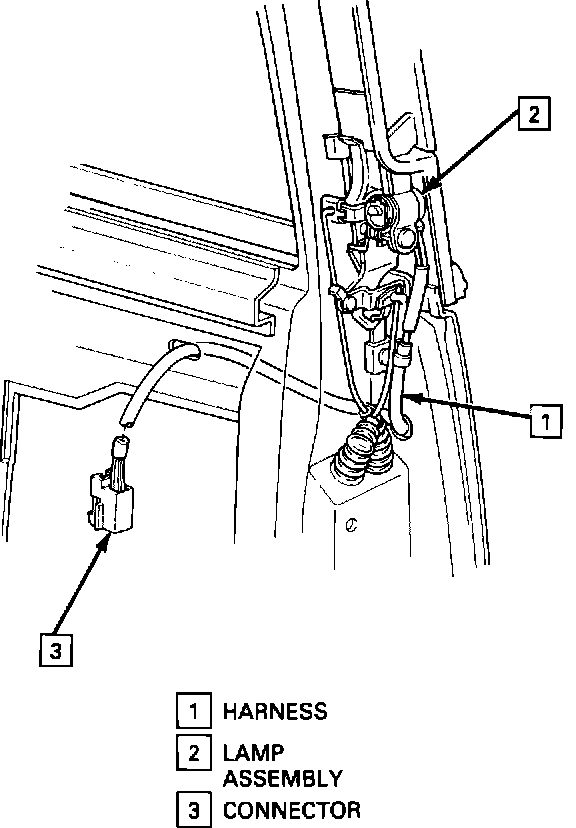

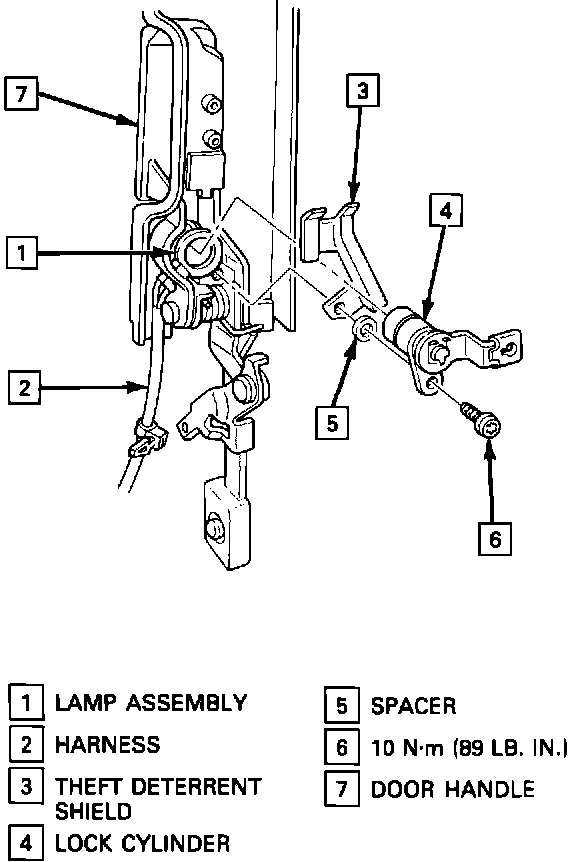

FIGURES 1 AND 2
1. Door handle cover assembly. Refer to DOORS (Section 10-5) in the Service Manual.
2. Lock cylinder to lock rod.
3. Screw securing lock cylinder to door.
4. Lock cylinder and spacer.
5. Theft deterrent shield.
6. Door trim panel. Refer to DOORS (Section 10-5) in the Service Manual.
7. Connector
8. Lamp assembly and harness from door.
INSTALL OR CONNECT
1. Lamp assembly and harness to door.
2. Connector.
3. Door trim panel. Refer to DOORS (Section 10-5) in the Service Manual.
4. Theft deterrent shield.
5. Spacer and lock cylinder.
6. Screw
- Tighten
- Screw to 10 N-m (89 in.lbs.)
7. Lock cylinder to lock rod
8. Door handle cover assembly. Refer to DOORS (Section 10-5) in the Service Manual.
Page 8A-115-0 CUTLASS SUPREME
Page 8A-115-1
CUTLASS SUPREME
