Oldsmobile
>>
1989
>>
Cutlass Supreme FWD V6-189 3.1L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

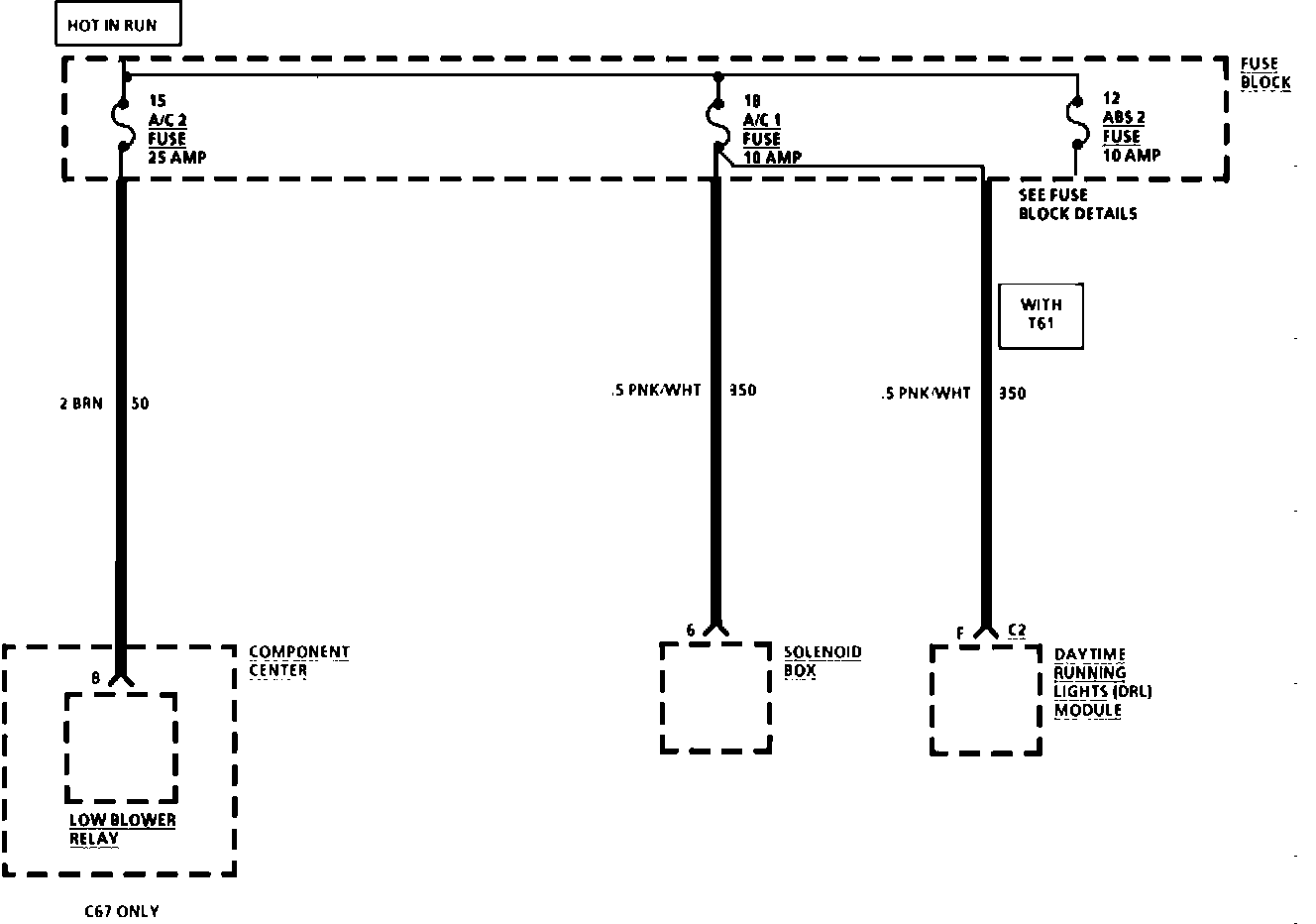

Fuses 12, 15 & 18
Fuses 12, 15 & 18
Fuse Block Details Fuses 12,15 & 18:
