Cutlass Supreme FWD V6-189 3.1L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

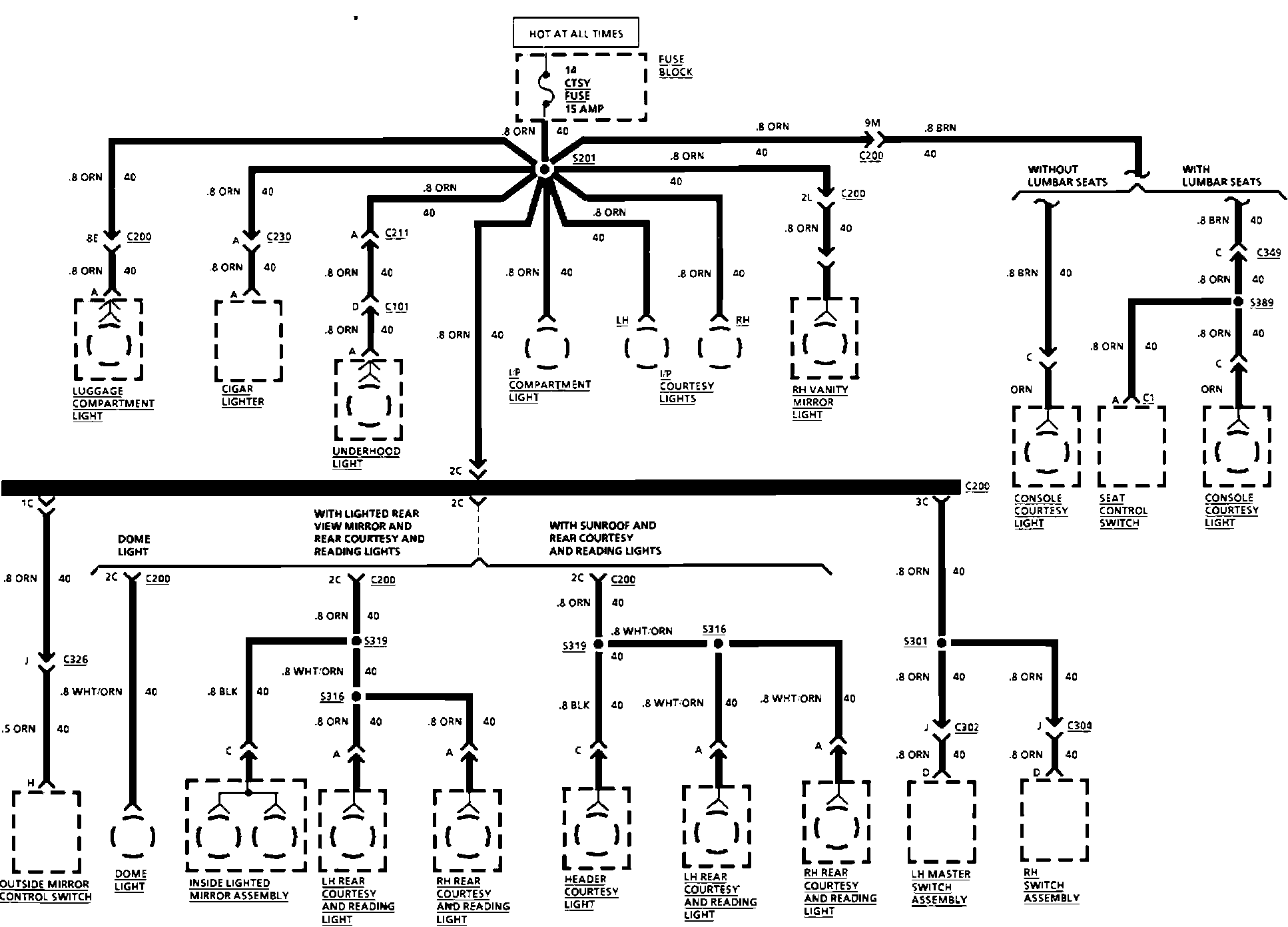

Fuse 14
Fuse 14
Fuse Block Details Fuse 14:
