System Diagnosis - Compressor Controls

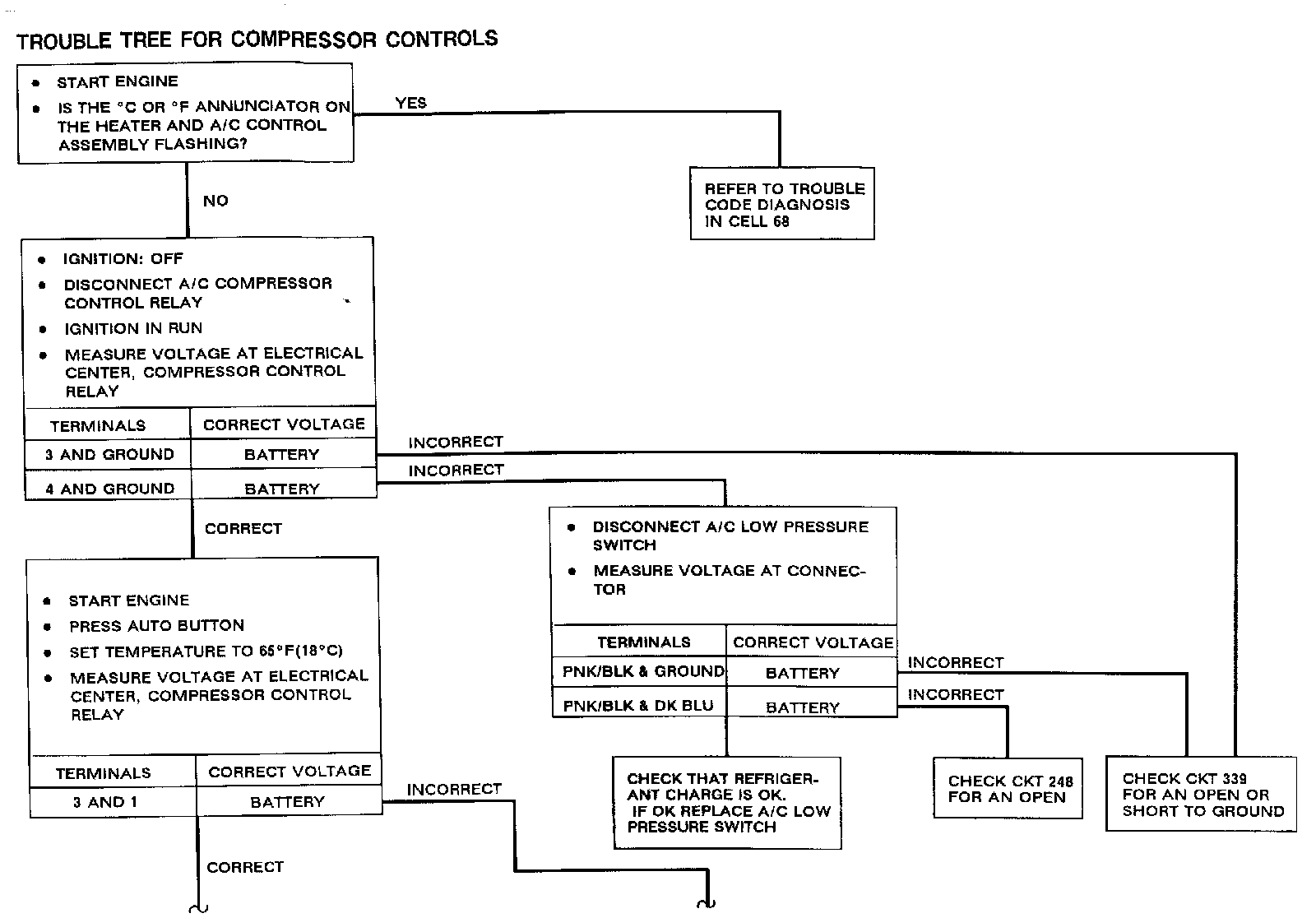

Troubleshooting Tree (Part 1 Of 2):




Part 1 of 2

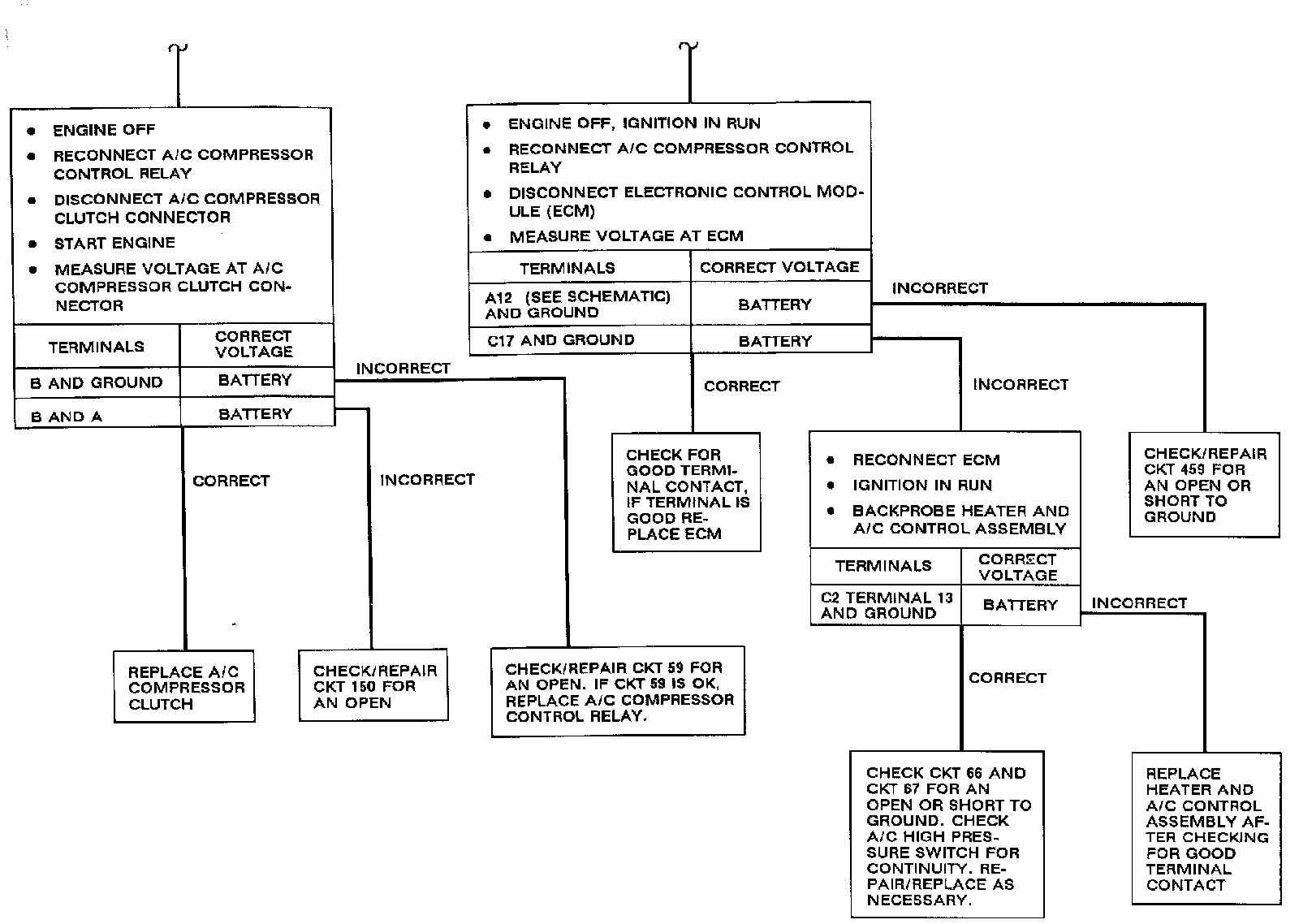

Troubleshooting Tree (Part 2 Of 2):




Part 2 of 2

^ Use the trouble tree (Part 1 and 2) to diagnose any faults involving compressor operation.
