Test D - Serial Data Line Test

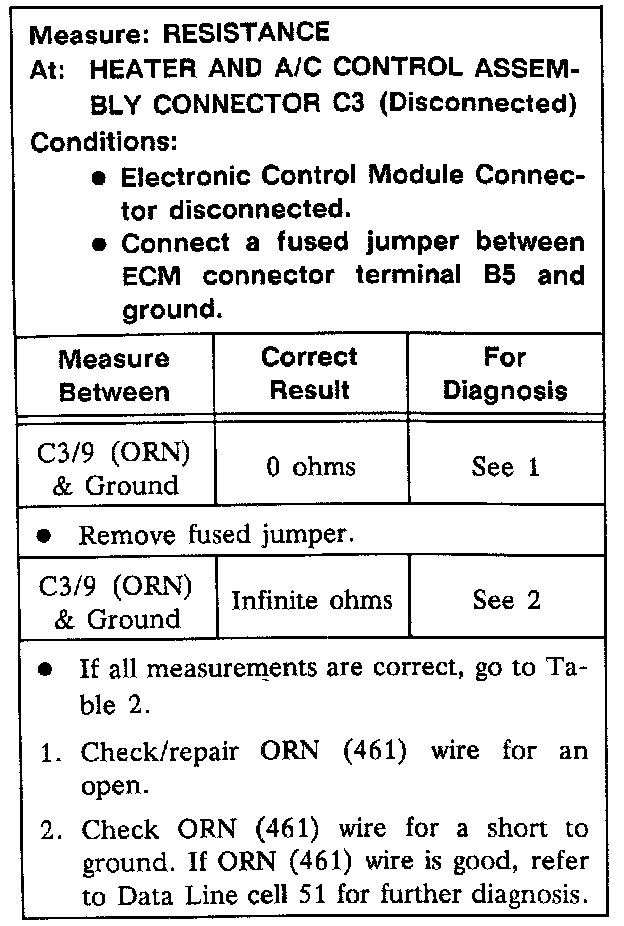

Serial Data Line Test (Table 1 Of 2):



Serial Data Line Test (Table 2 Of 2):
