Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1989
>>
Cutlass Supreme FWD V6-189 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Compressor HVAC
>>
With Automatic Controls
With Automatic Controls
Compressor Controls:

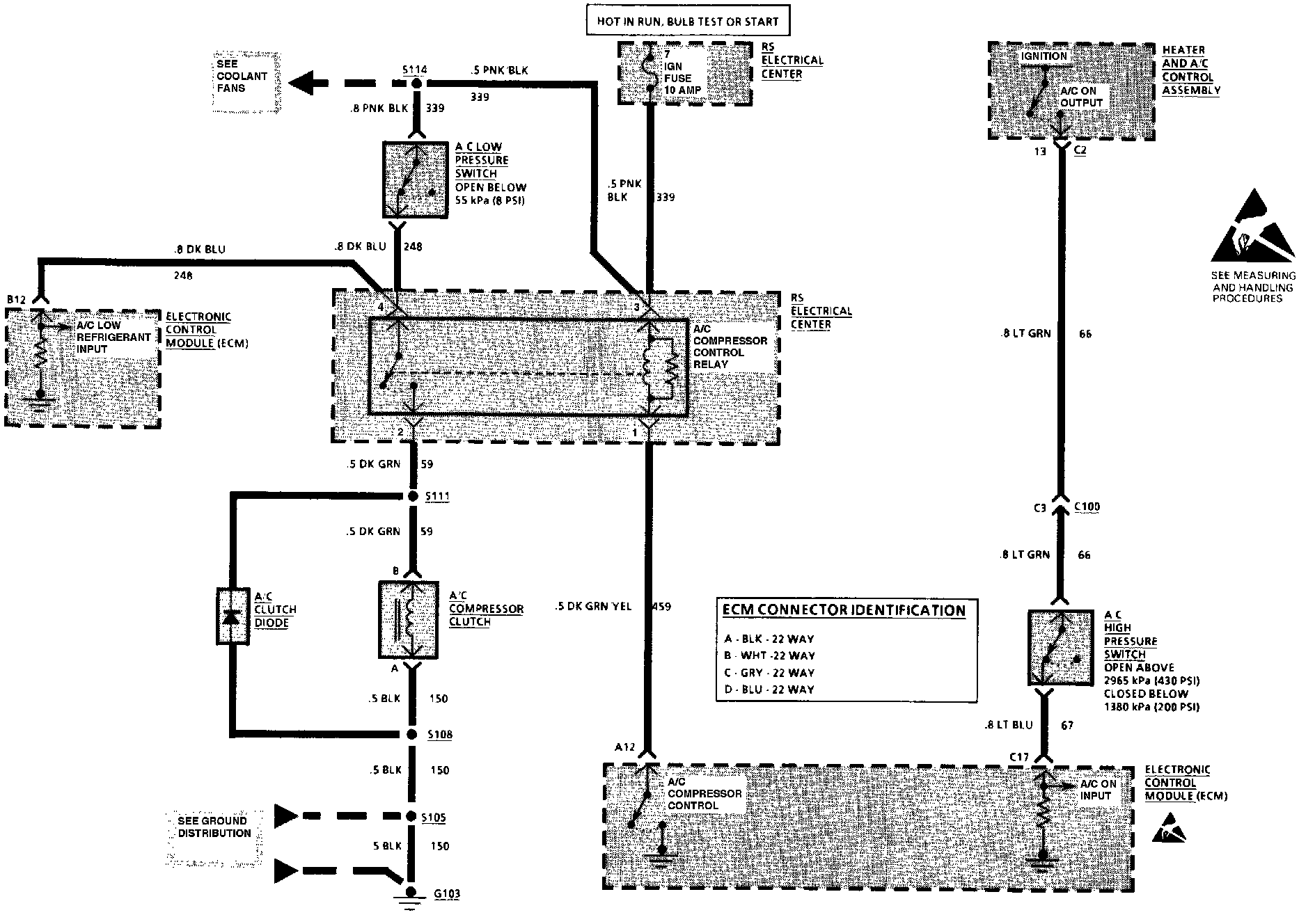

Compressor Controls w/Automatic Controls:
