Cutlass Supreme FWD V6-189 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Dimmer Switch
Dimmer Switch

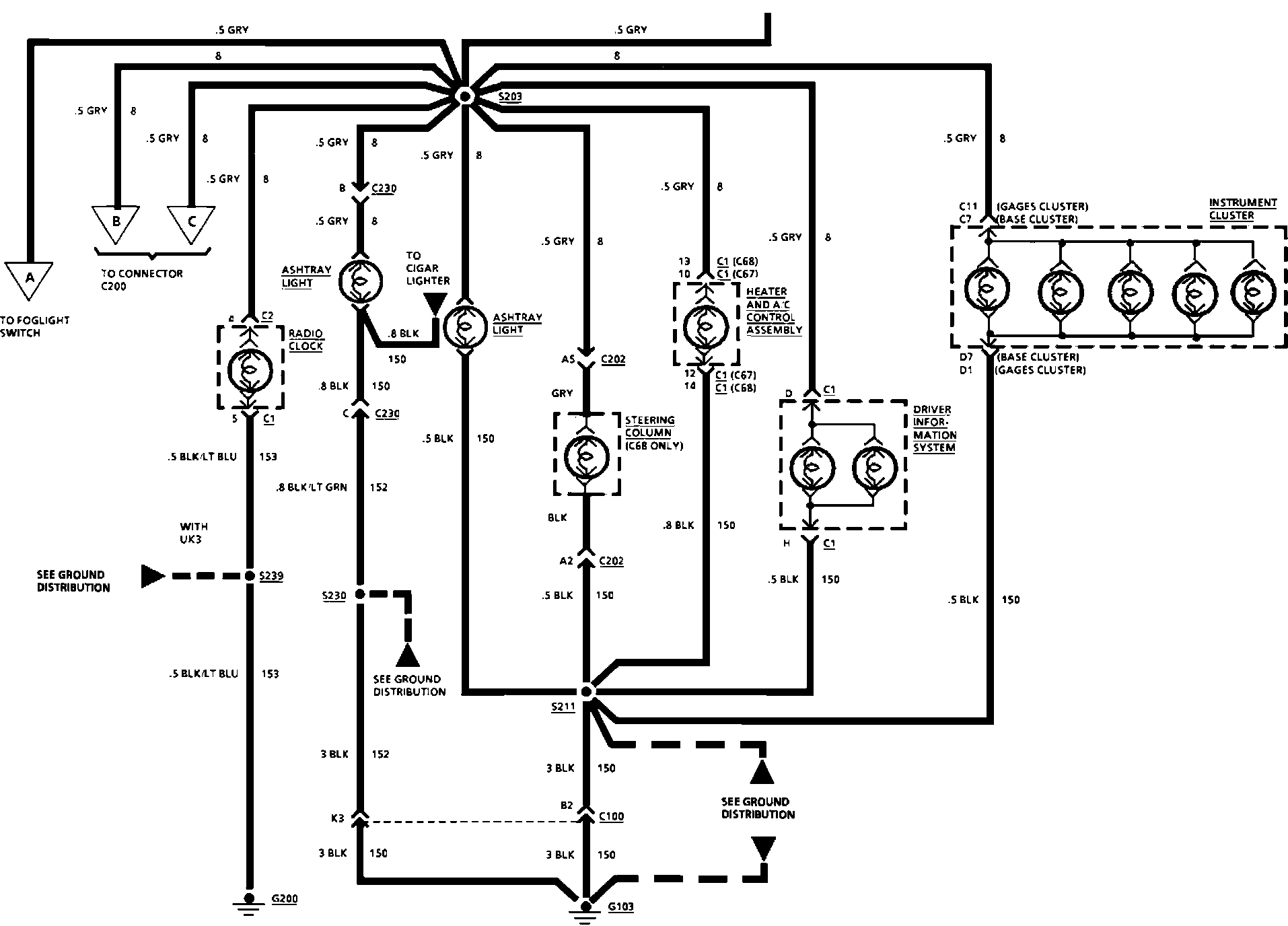

Interior Lights (Dimming) Part 1 of 3:

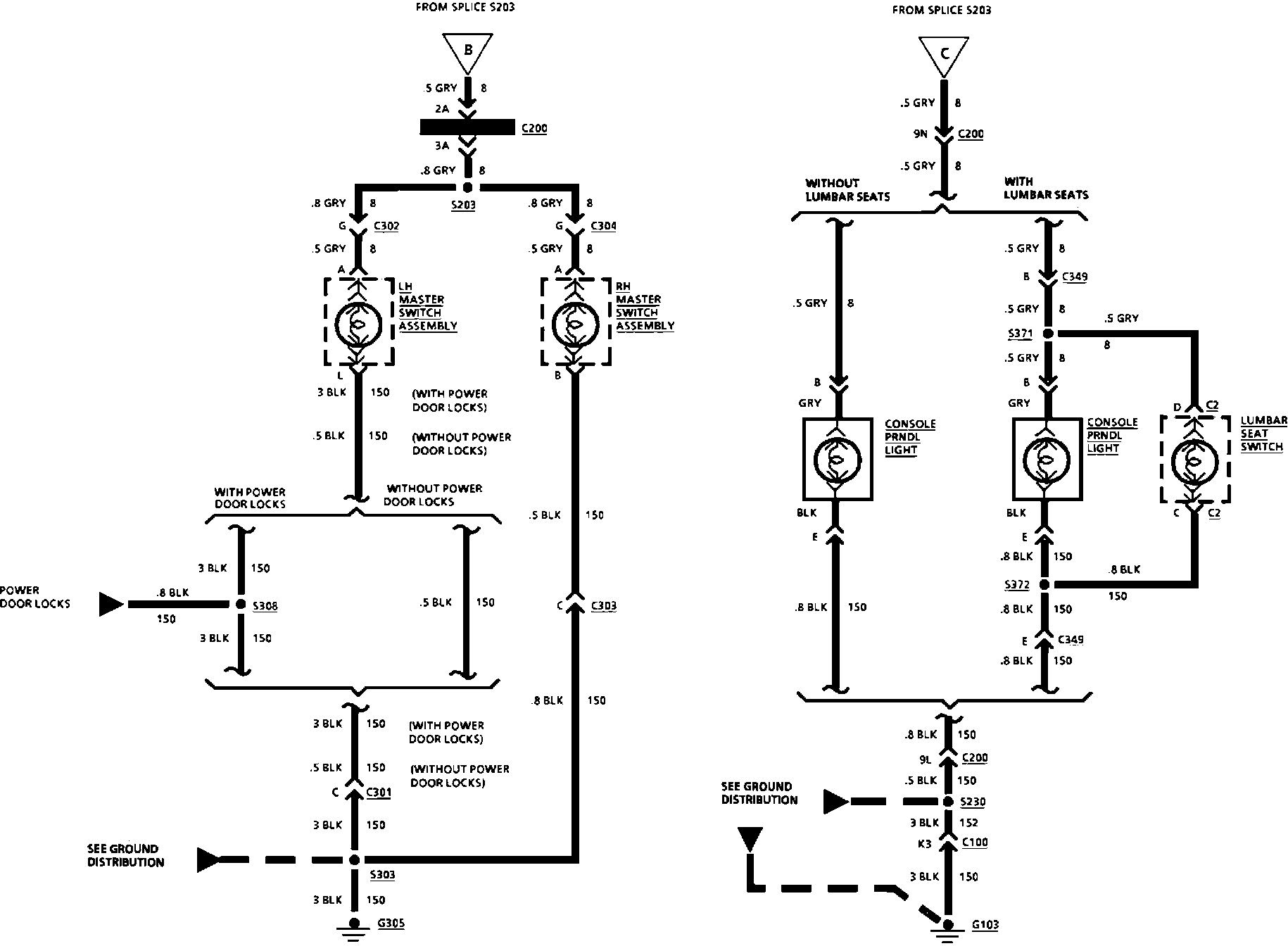

Interior Lights (Dimming) Part 2 of 3:

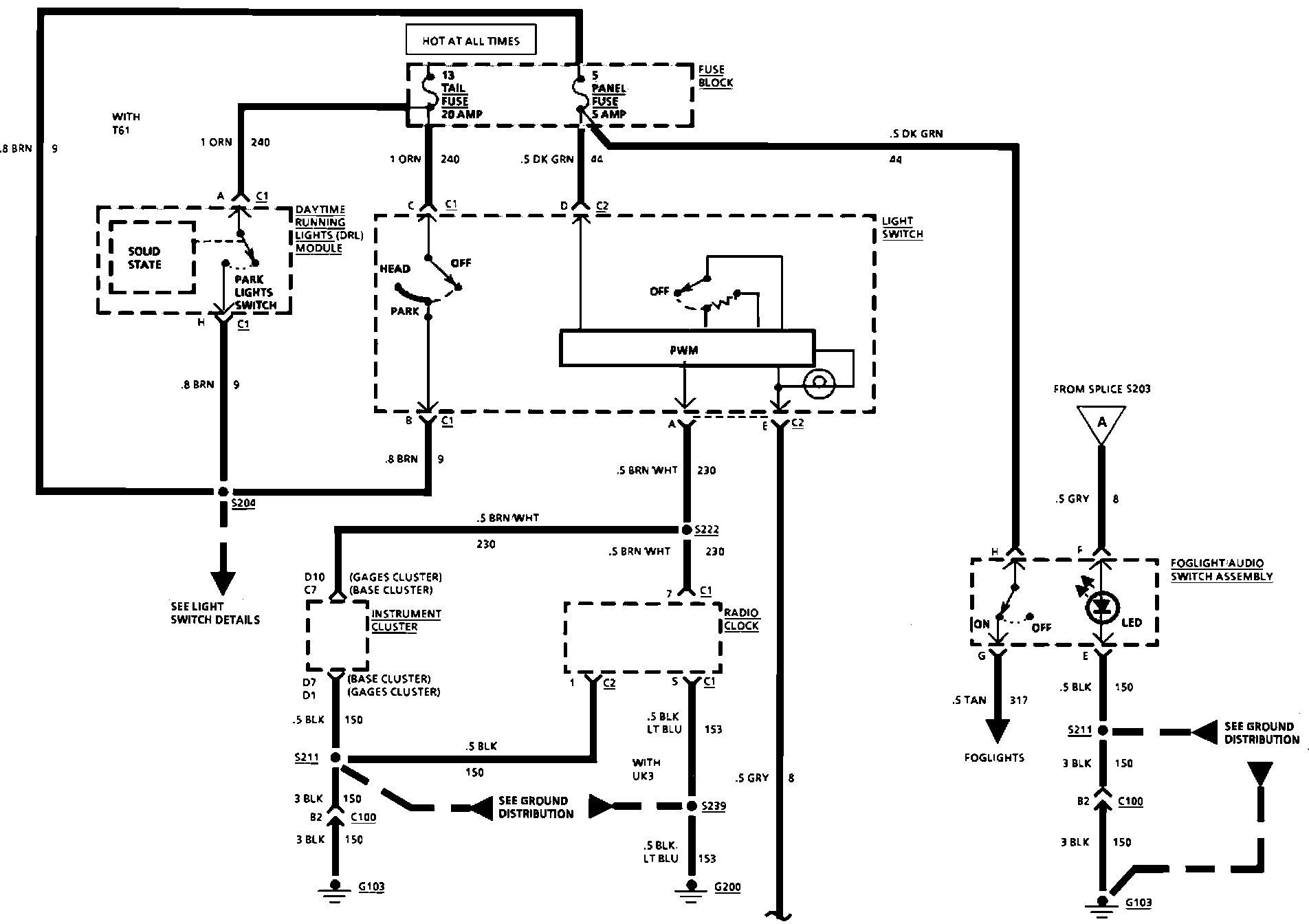

Interior Lights (Dimming) Part 3 of 3:
