Test B - Outside Temperature Sensor Test

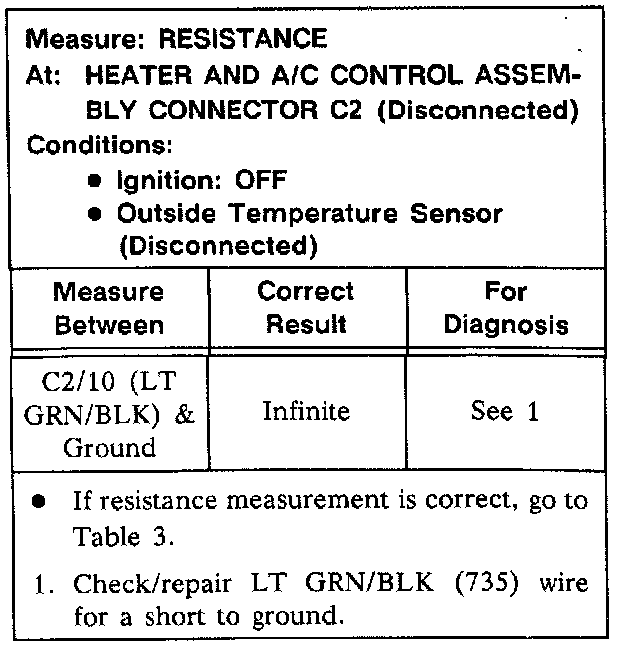

Outside Temperature Sensor Test (Table 1 Of 3):

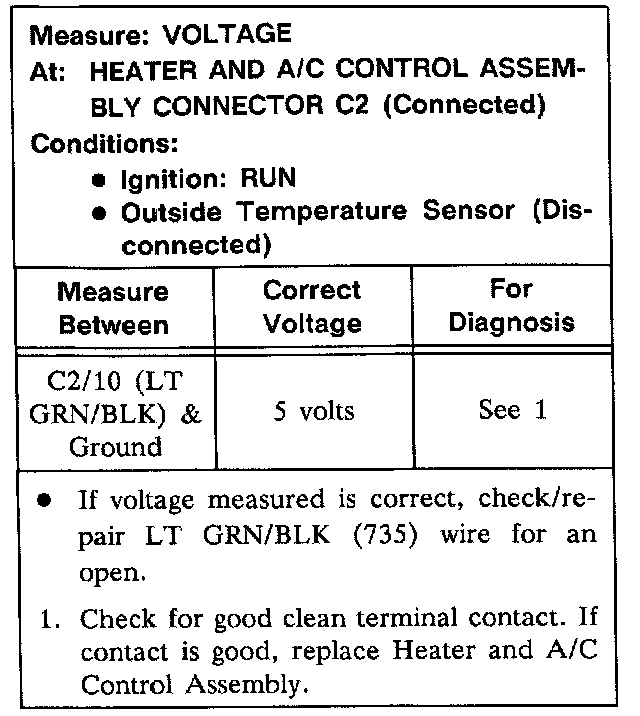

Outside Temperature Sensor Test (Table 2 Of 3):

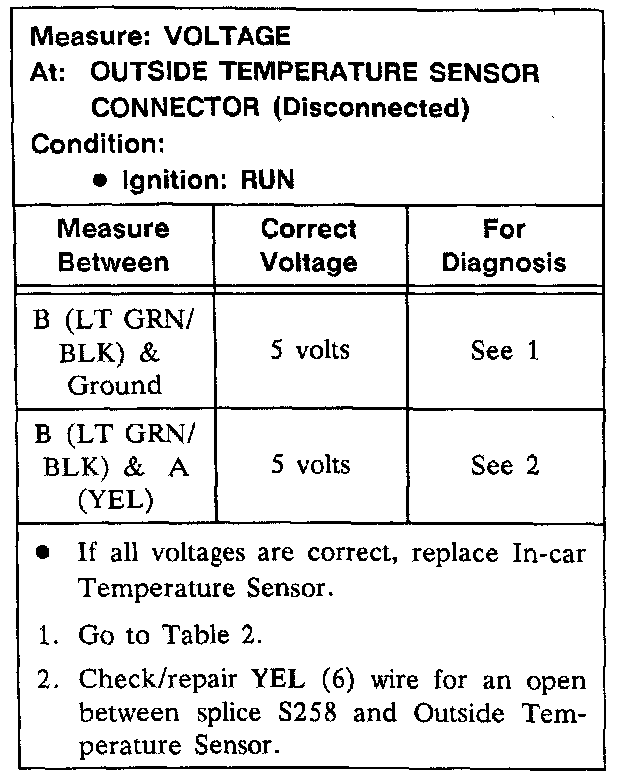

Outside Temperature Sensor Test (Table 3 Of 3):
