Test A - In-Vehicle Temperature Sensor Test

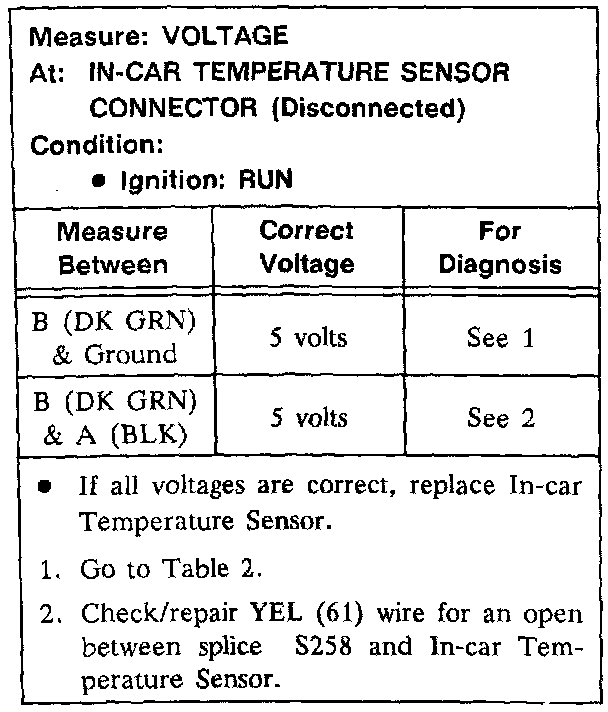

In-Vehicle Temperature Sensor Test (Table 1 Of 3):

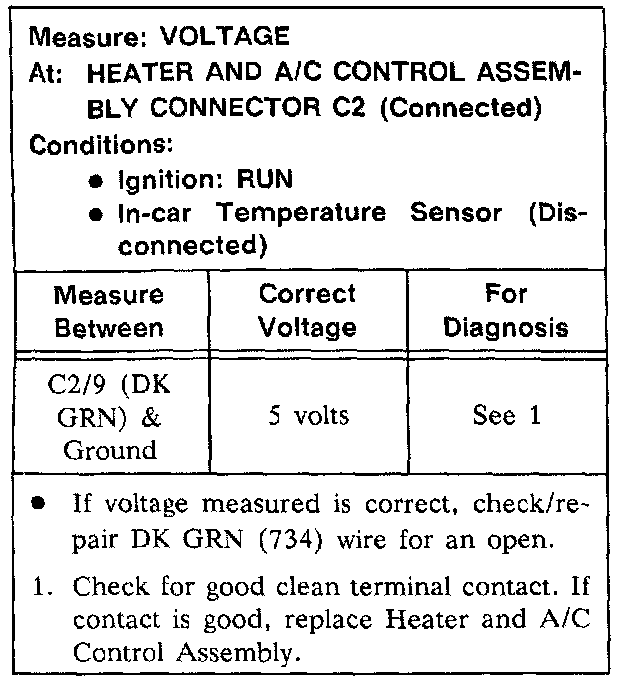

In-Vehicle Temperature Sensor Test (Table 2 Of 3):

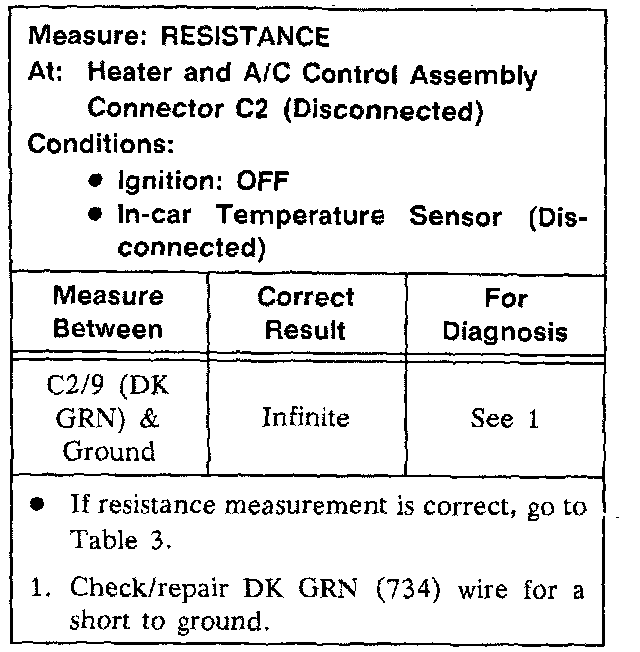

In-Vehicle Temperature Sensor Test (Table 3 Of 3):
