Home >> Oldsmobile >> 1989 >> Cutlass Supreme FWD V6-173 2.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Diagrams >> Electrical Diagrams >> With Automatic Controls

With Automatic Controls

Air Conditioning. Blower Controls. With Automatic Controls:

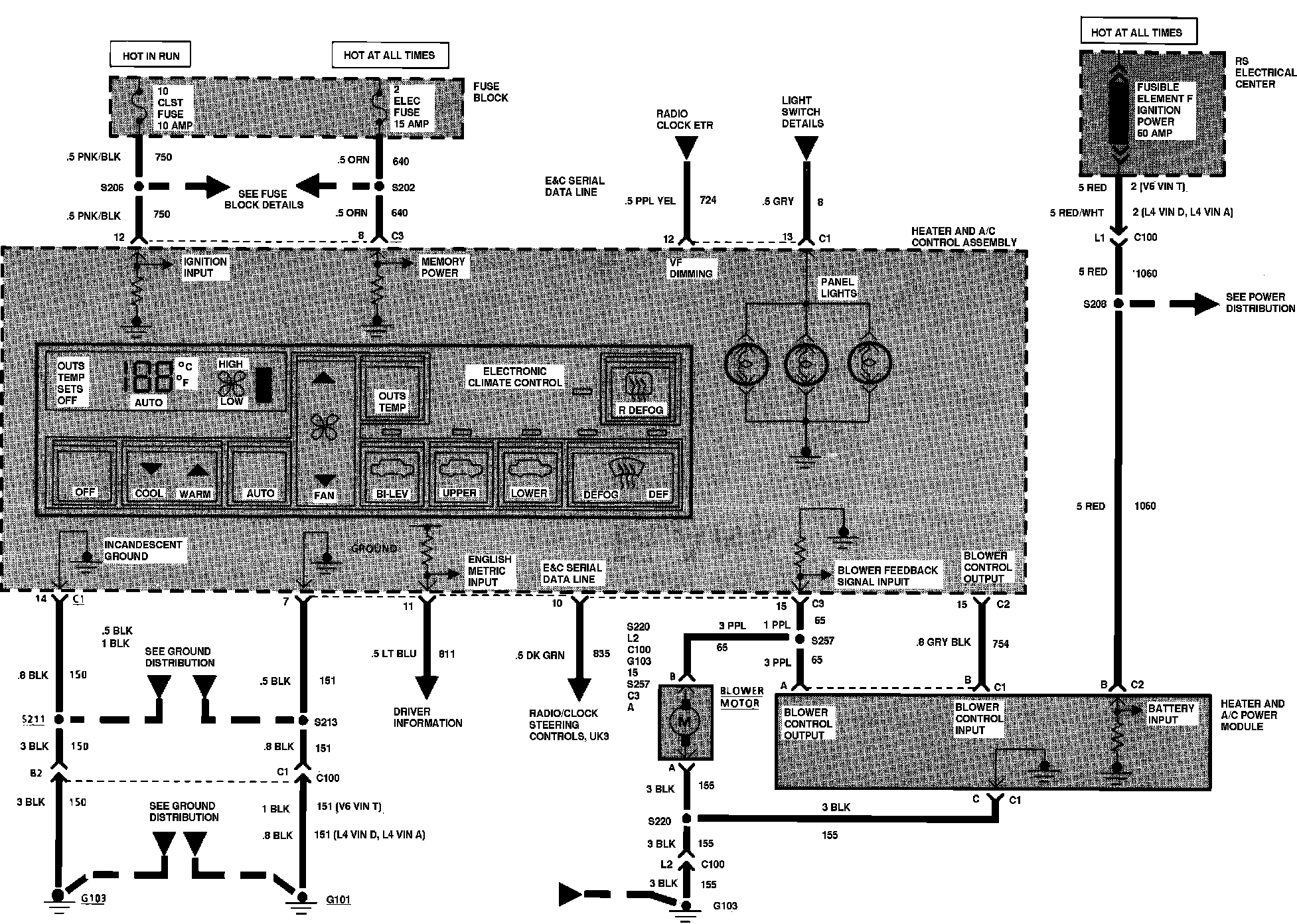

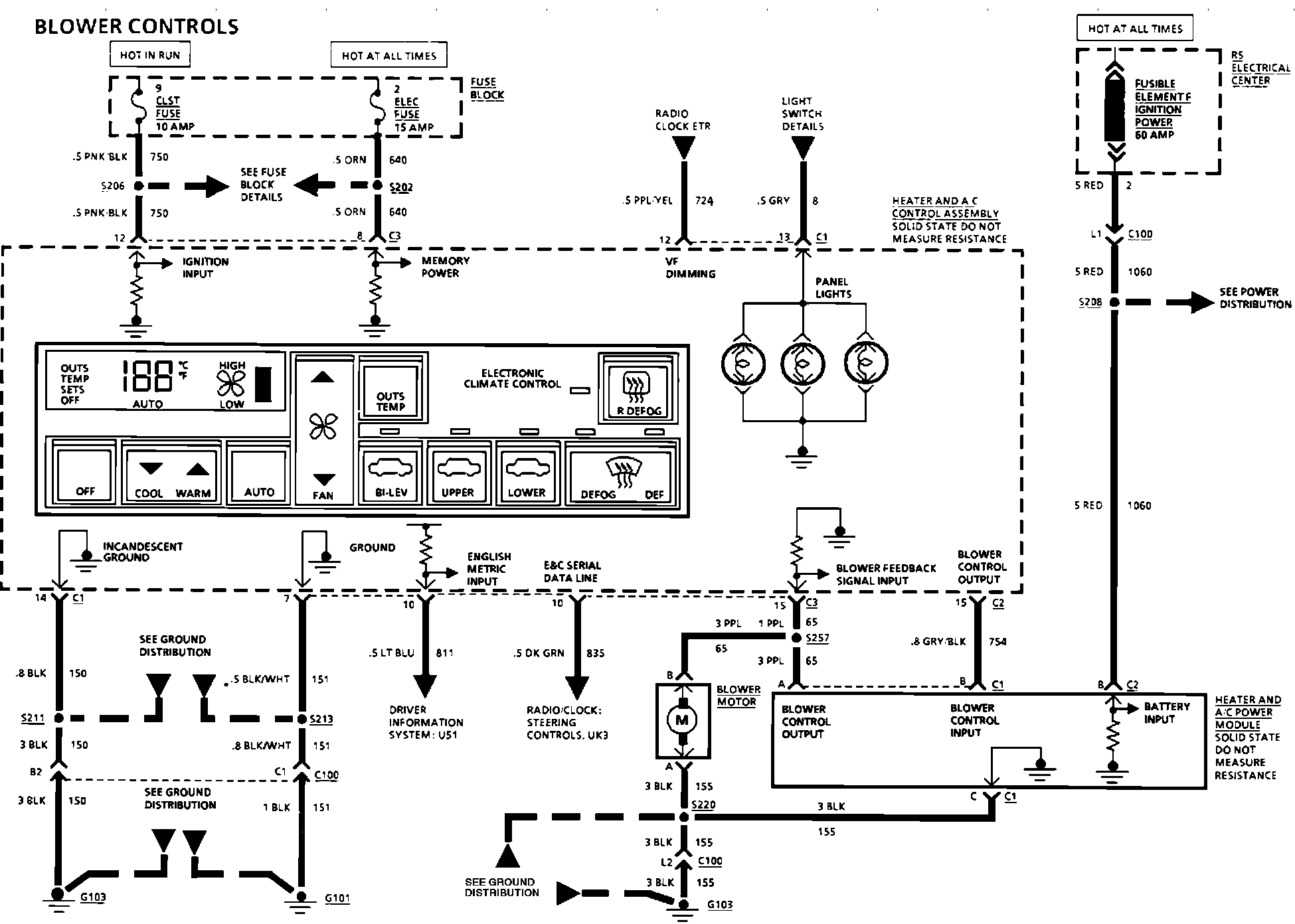

Blower Controls w/Automatic Controls:
