Home
>>
Oldsmobile
>>
1989
>>
Cutlass Supreme FWD V6-173 2.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
System Diagram
>>
Starting System
>>
With Manual
With Manual

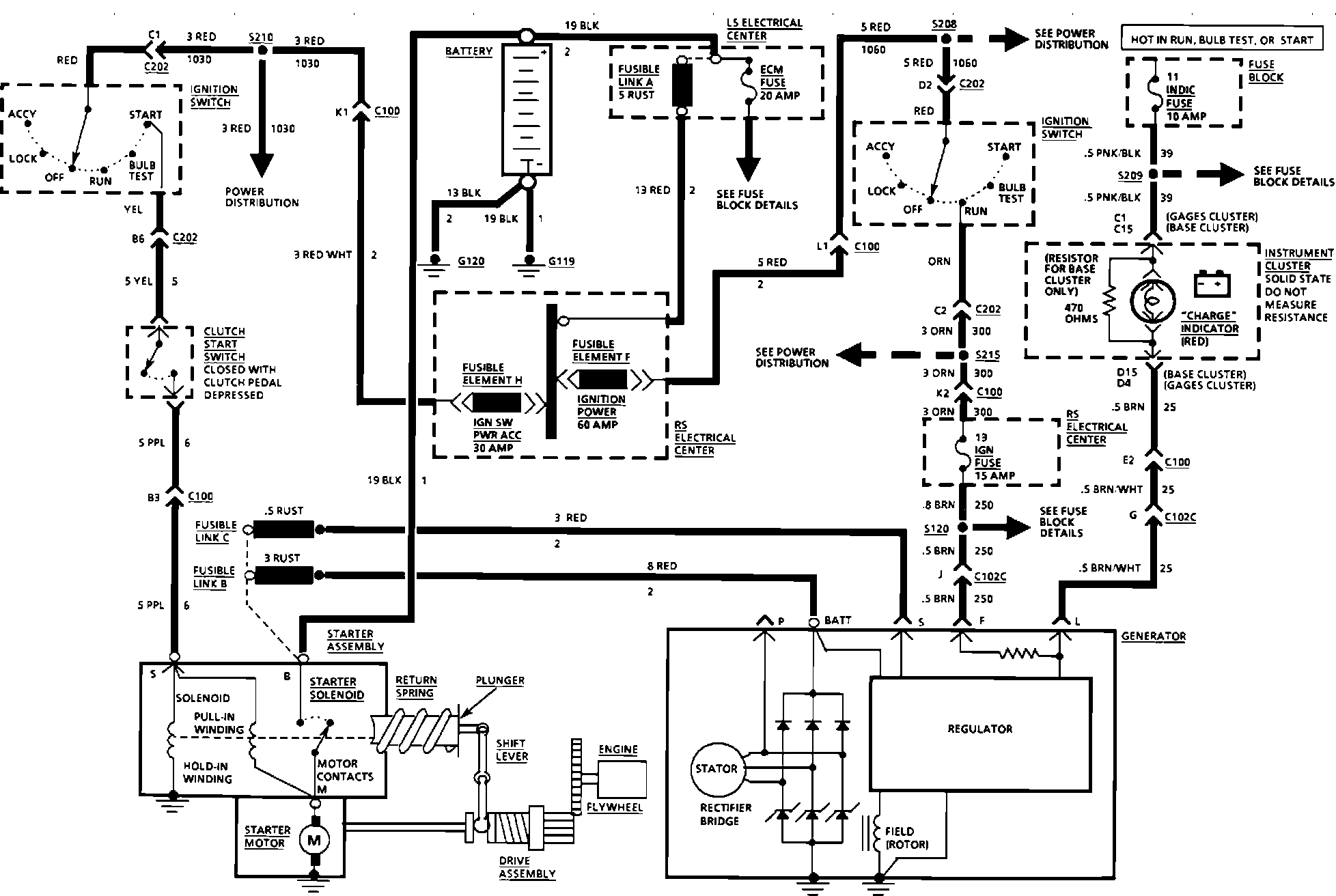

Charging & Starter System w/Manual Transaxle:
