Vehicle - Updated Lifting & Jacking Points
89oldsmobileSUBJECT SERVICE MANUAL UPDATE - SECTION 0A-6, VEHICLE
LIFTING AND JACKING POINTS PROCEDURE
MODELS/YEARS 1989 CUTLASS CIERA
NUMBER: 89-T-71
CORP. REF. NO: 932001
DATE: May 1989
SECTION: 0A

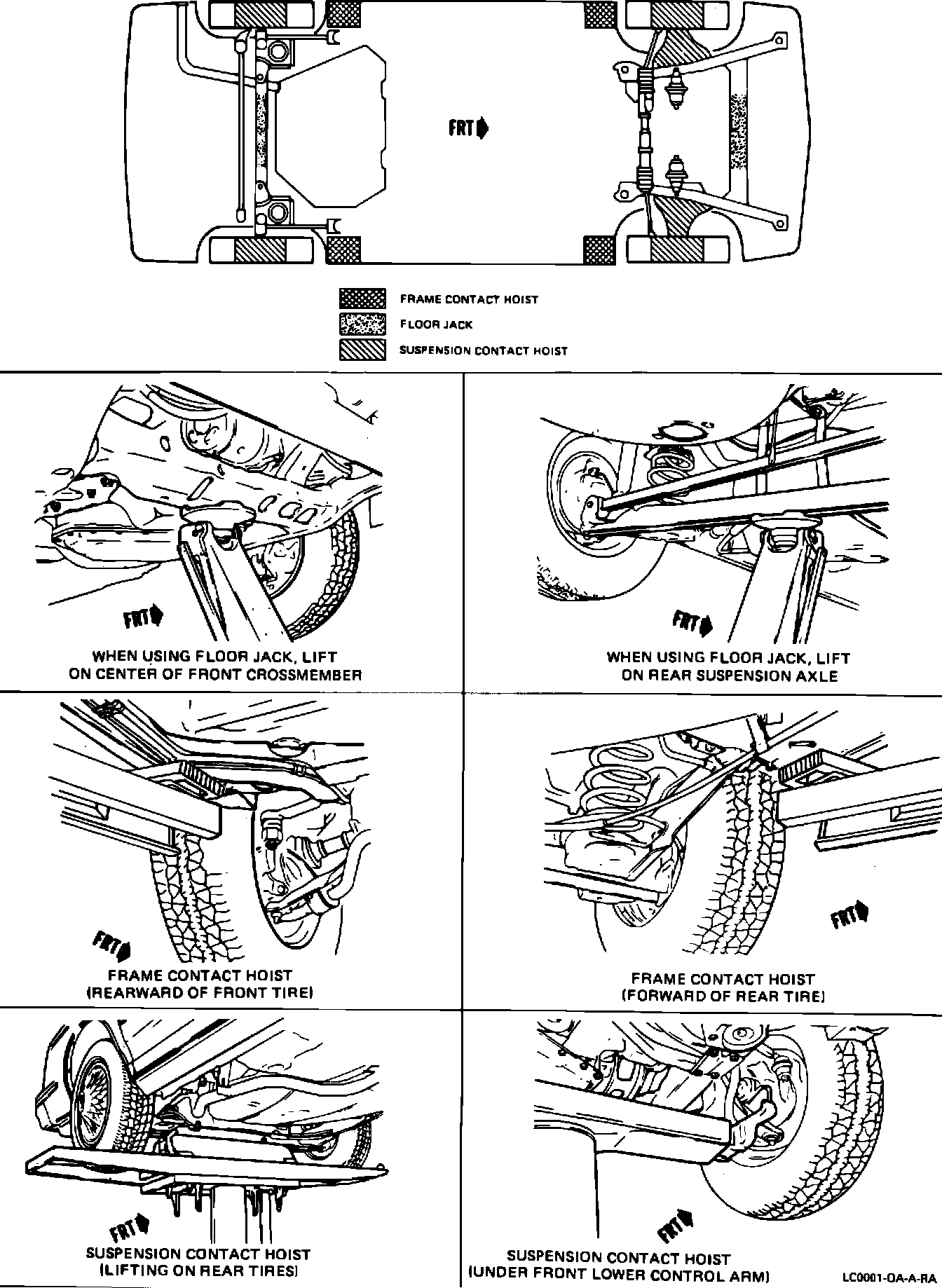

Figure 1:
Figure 1 is being provided to supersede what is shown in the 1989 Cutlass Ciera Service Manual illustrating vehicle "Lifting and Jacking Points".
When utilizing a frame contact hoist, hoist pads must be maintained in a horizontal position as shown in revised illustration.
NOTICE: Care must also be taken to insure that hoist pad is NOT positioned in such a manner that contact with nylon fuel lines can occur at the left front lifting location.
