SUBJECT SERVICE MANUAL UPDATE - SECTION BA
ELECTRICAL DIAGNOSIS (INCORRECT WIRING HARNESS CONNECTOR INFORMATION FOR DRIVER INFORMATION SYSTEM - RPO U51)

MODELS/YEARS 1989 CUTLASS CIERA/CUTLASS CRUISER
NUMBER: 89-T-61

CORP.REF.NO: 978101


DATE: April 1989

SECTION: 8A

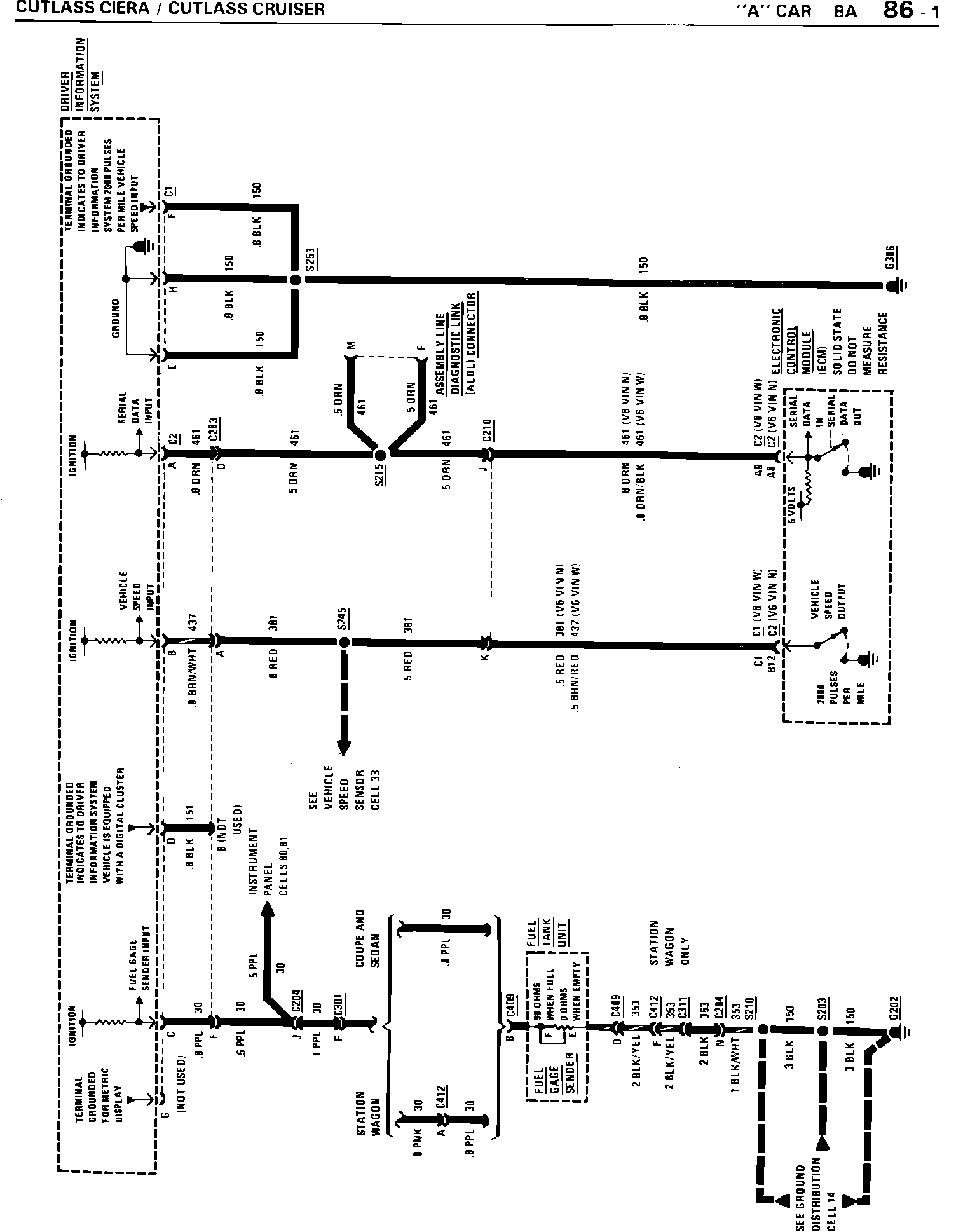

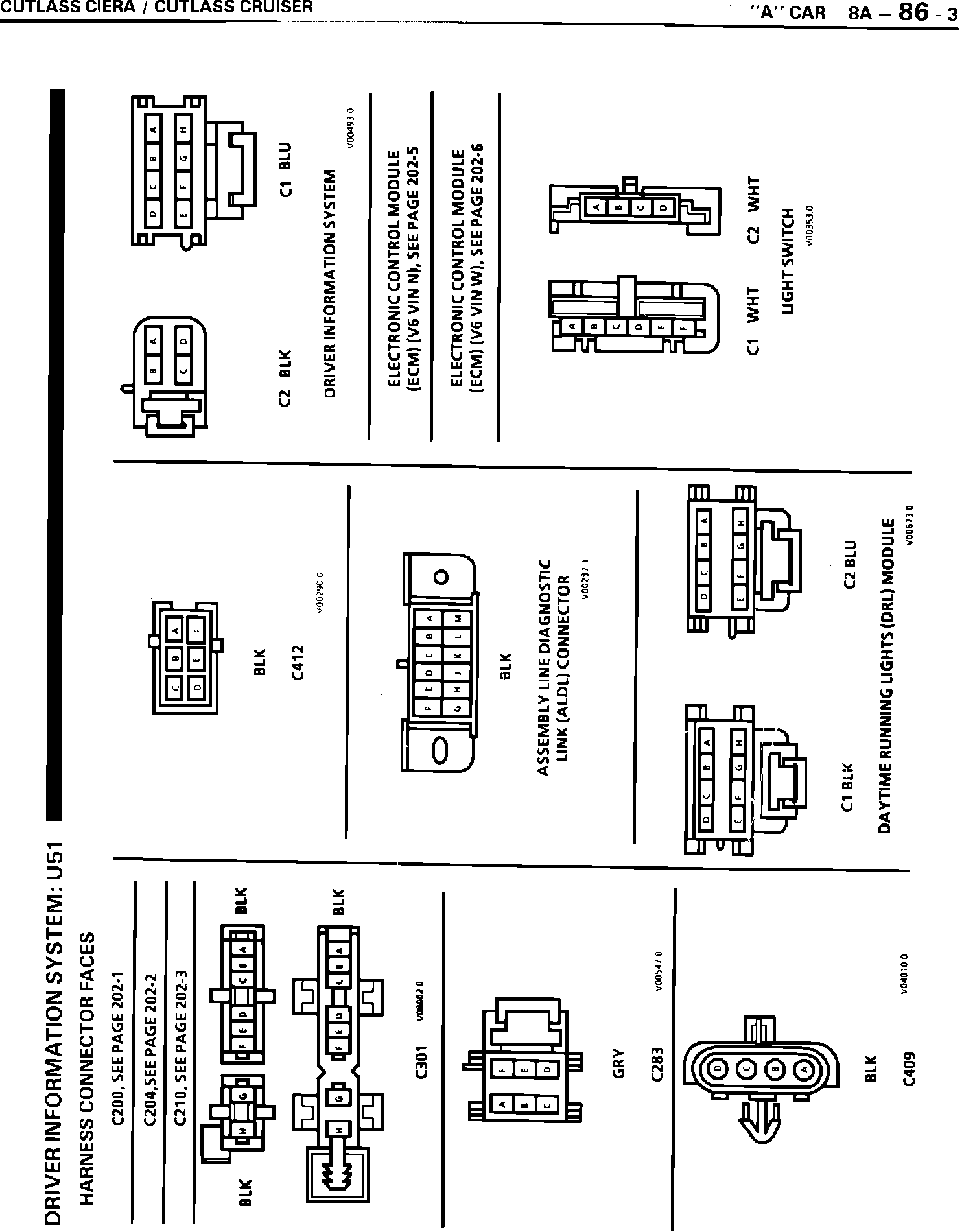

Pages 8A- 86-1 and 8A- 86-3 contain incorrect wiring harness connector information for the Driver Information System. These pages have been corrected and are reproduced as part of this bulletin. Please mark references to this bulletin on the above pages in your 1989 Cutlass Ciera and Cutlass Cruiser Service Manual.
