Oldsmobile
>>
1989
>>
Cutlass Ciera Cruiser V6-3300 3.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Stop
Stop

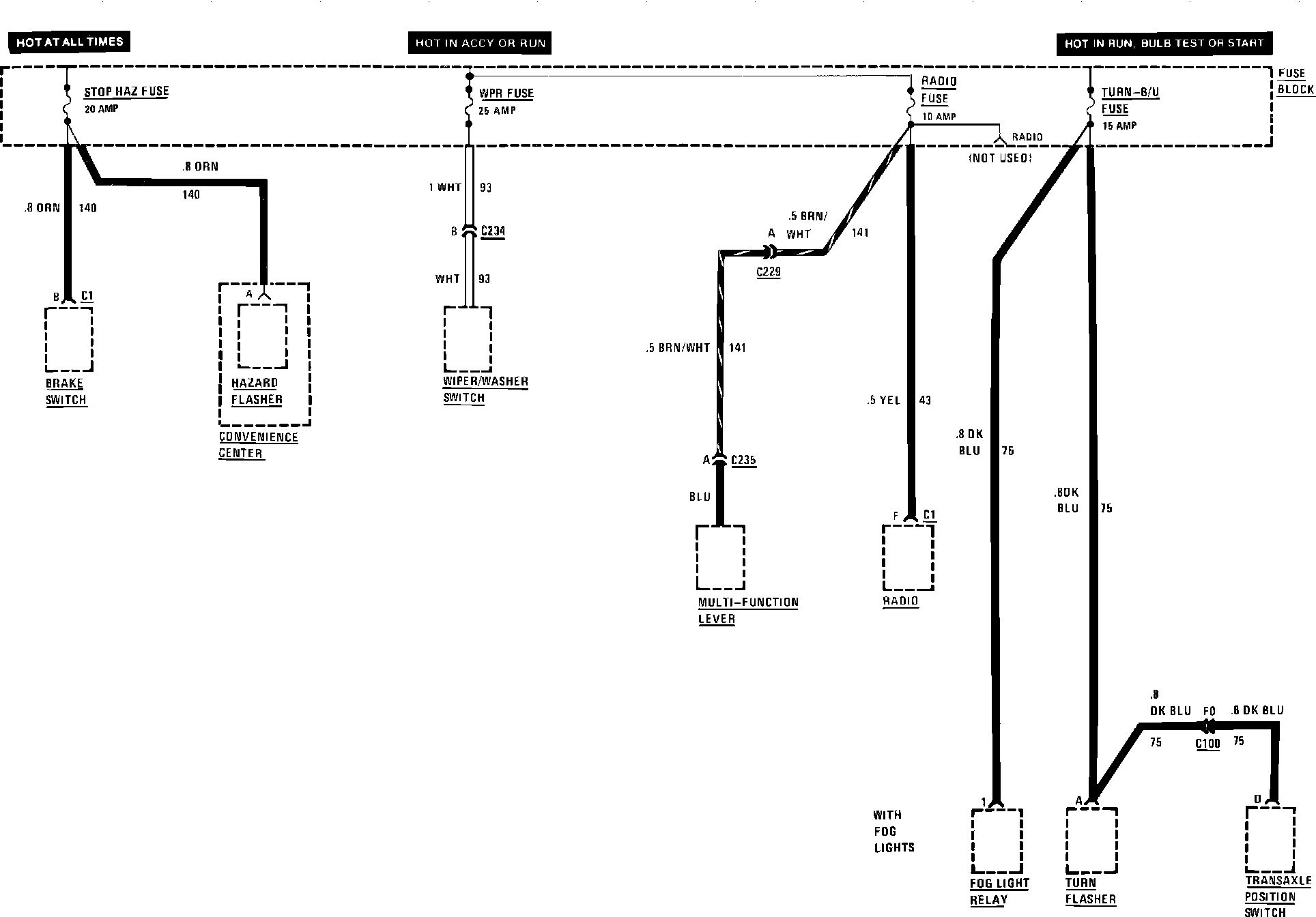

Fuse Block Details (Hazard, Radio, Stop, Turn/Back-Up & Wiper Fuse):
