Oldsmobile
>>
1989
>>
Cutlass Ciera Cruiser V6-3300 3.3L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Circuit Breaker
>>
Diagrams
>>
Electrical Diagrams
>>
Windows
Windows

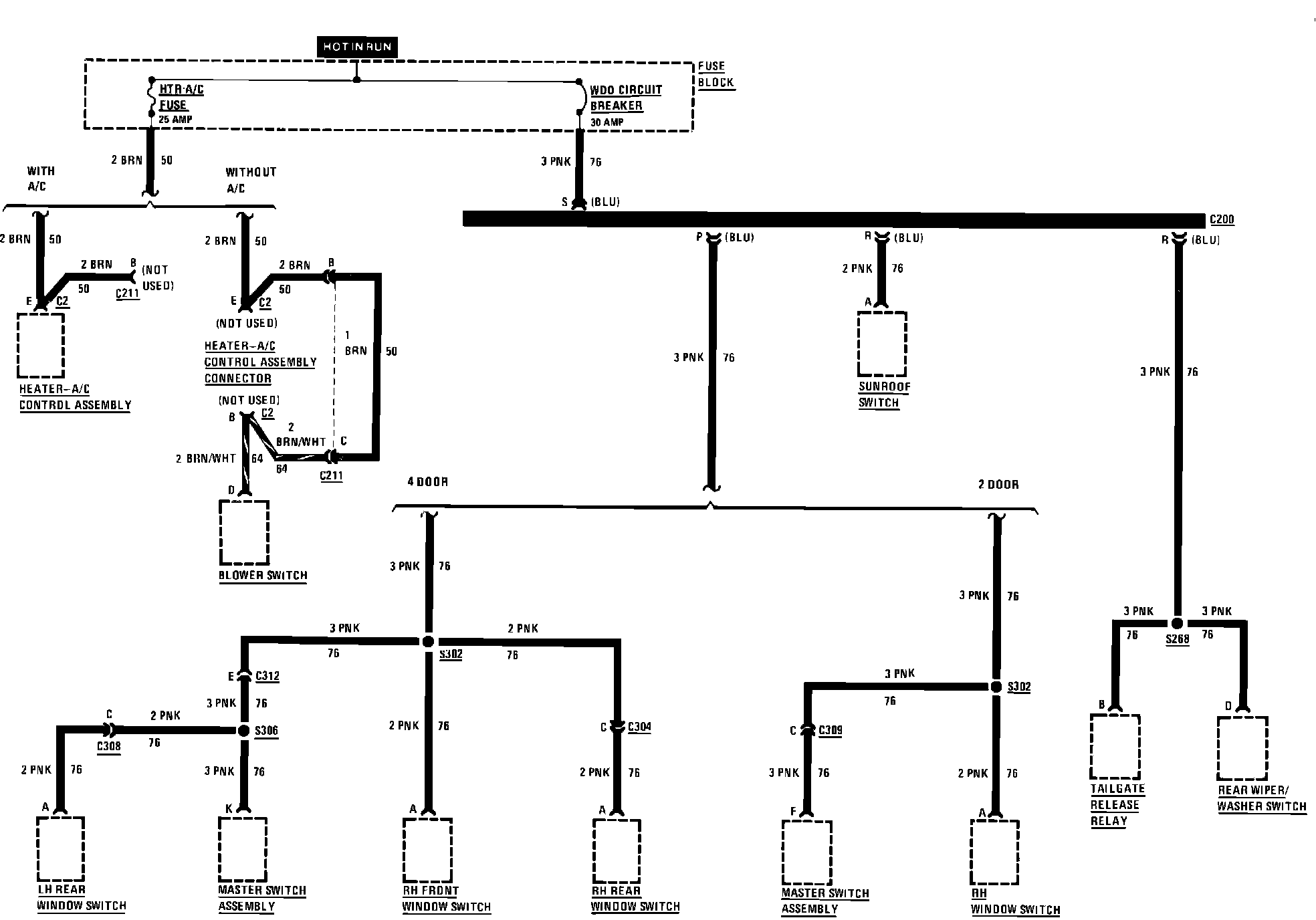

Fuse Block Details (Window Circuit Breaker & Heater-A/C):
