Electrical - Revised Component Location Figures

89Oldsmobile08

SUBJECT: SERVICE MANUAL UPDATE - SECTION 8A - COMPONENT LOCATION FIGURES, (REVISED PAGES)

MODELS/YEARS: 1989 CUTLASS CIERA AND CUTLASS CRUISER
NUMBER: 89-T-102

CORP. REF. NO: 938123

DATE: July 1989

SECTION: 8A

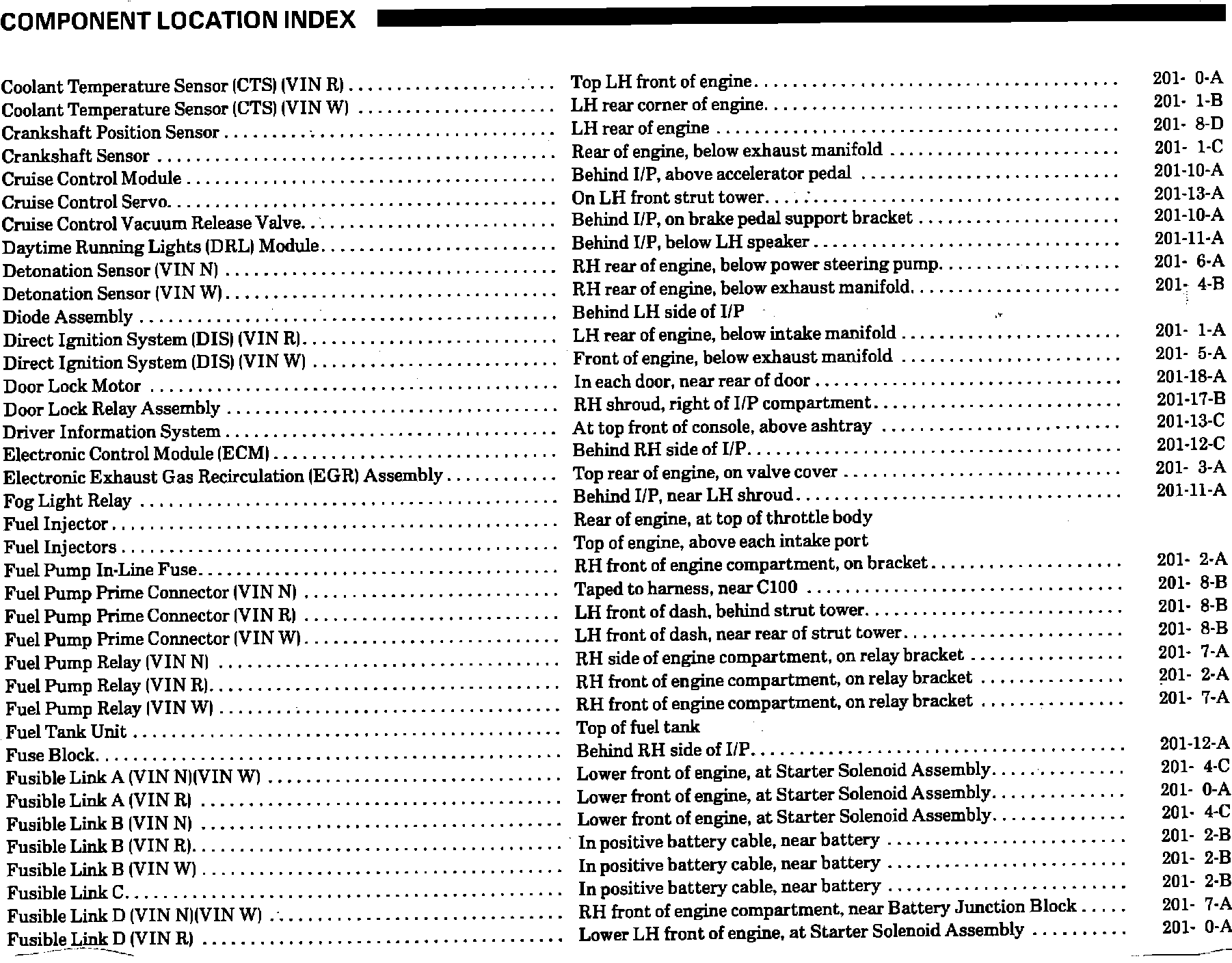

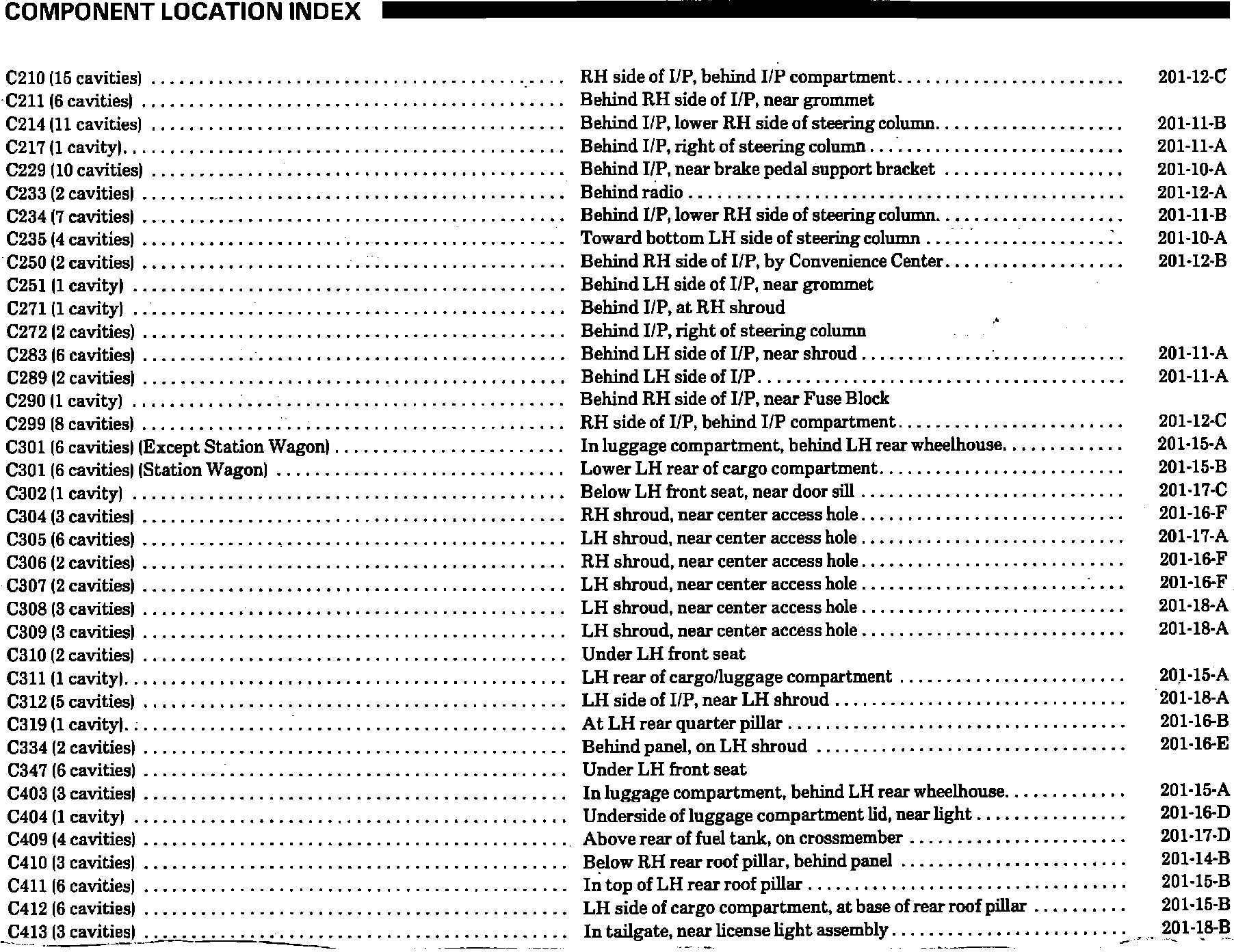

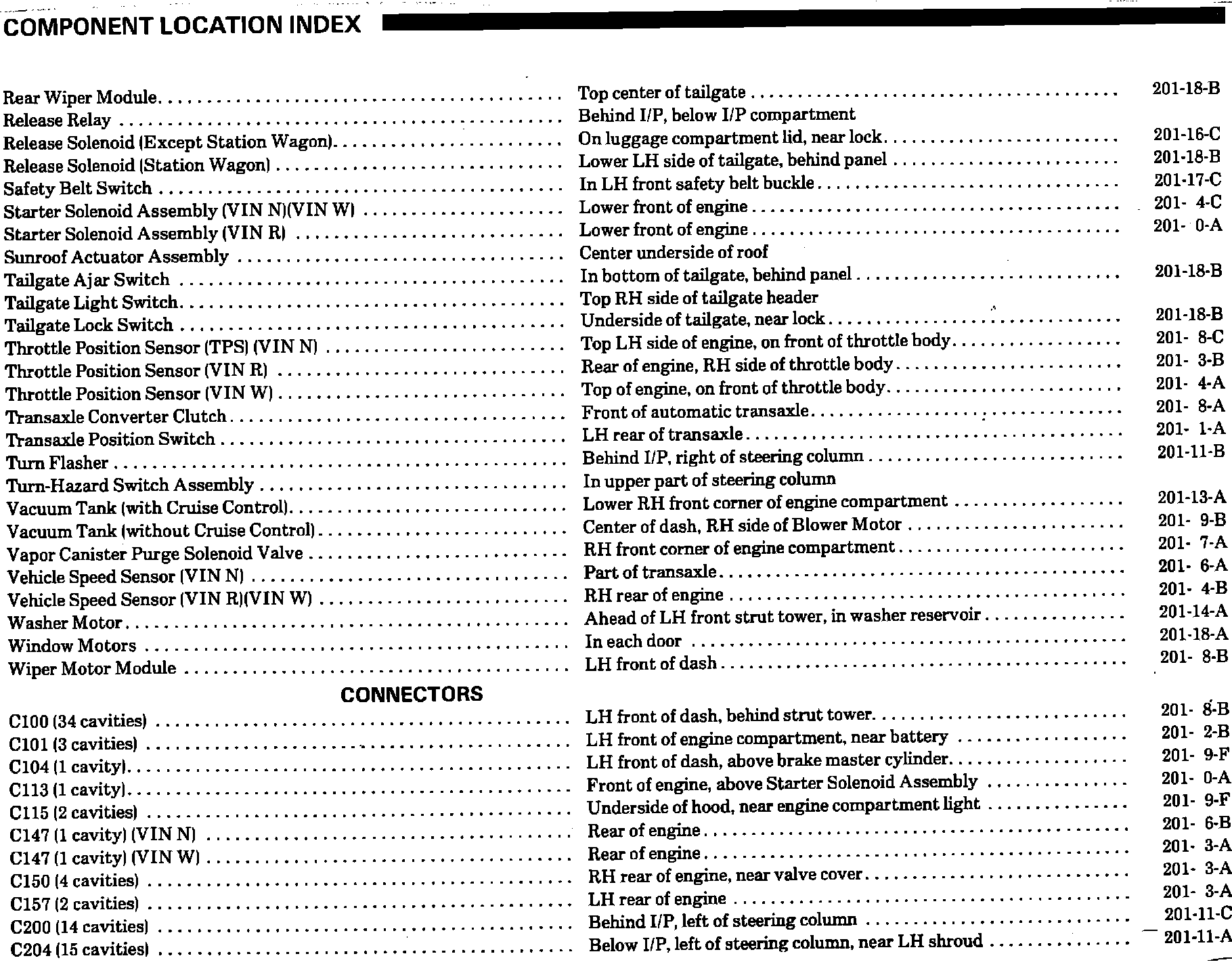

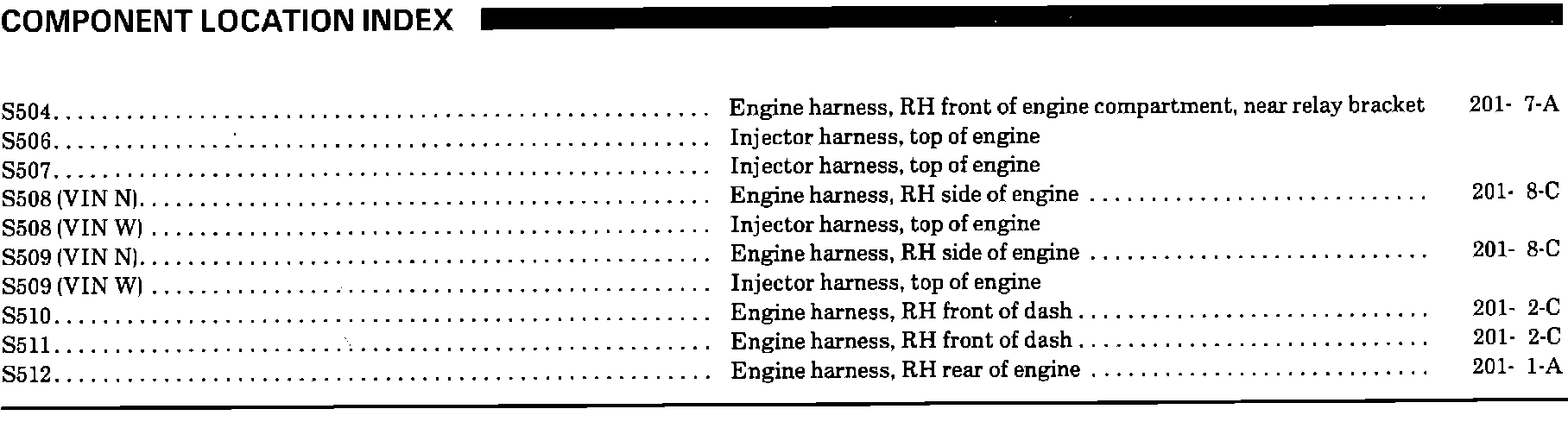

A number of the Component Location Figure references in the 1989 Cutlass Ciera/Cutlass Cruiser Service Manual for Section 8A are incorrect. Please remove pages 8A-201-20 through 8A-201-28 in the component location index and replace with pages contained in this bulletin.
