Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
ECM/Battery, Radio & Wiper
ECM/Battery, Radio & Wiper

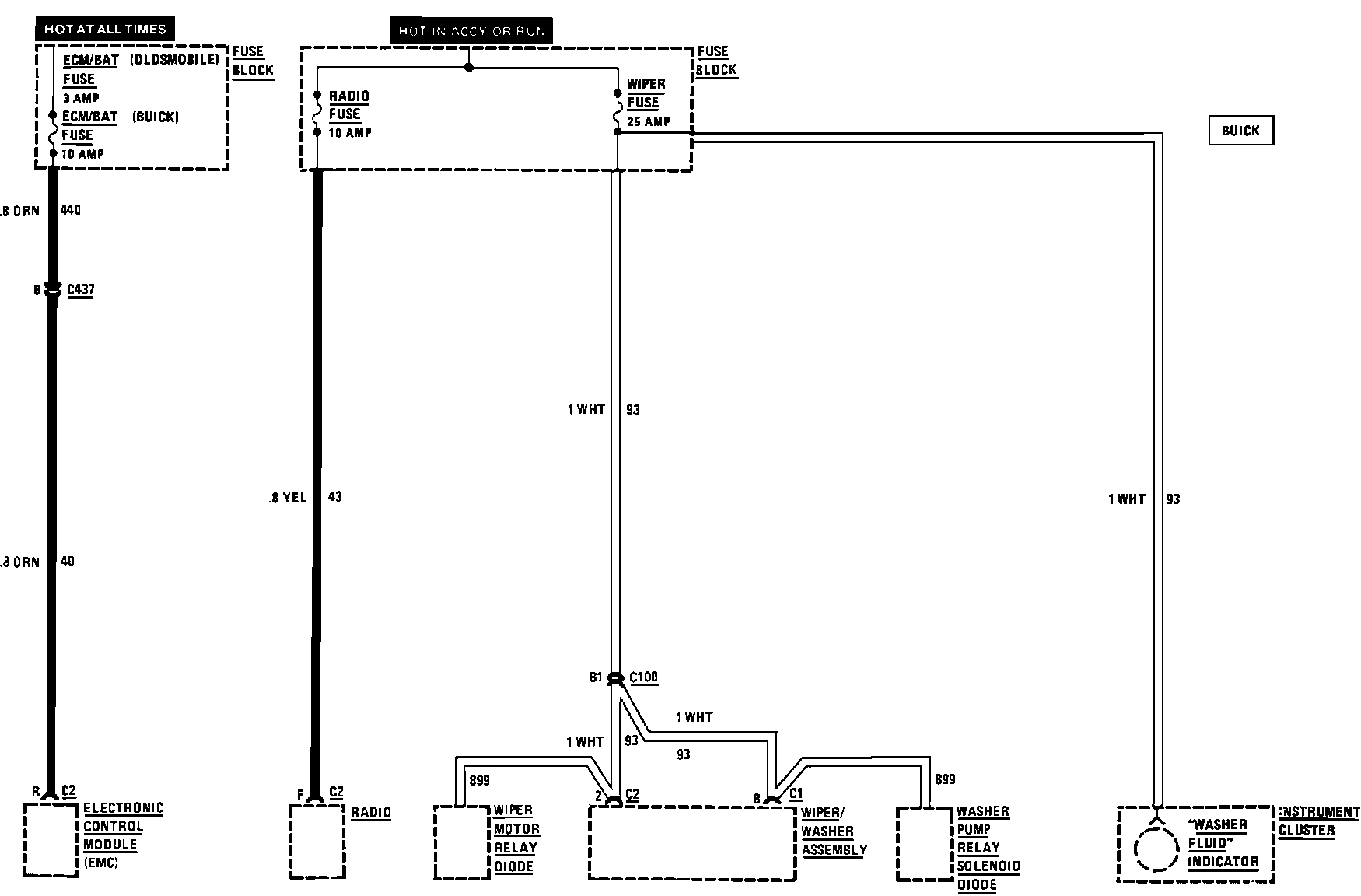

Fuse Block Details (ECM/Battery, Radio & Wiper):
