Home
>>
Oldsmobile
>>
1989
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Dome
Dome

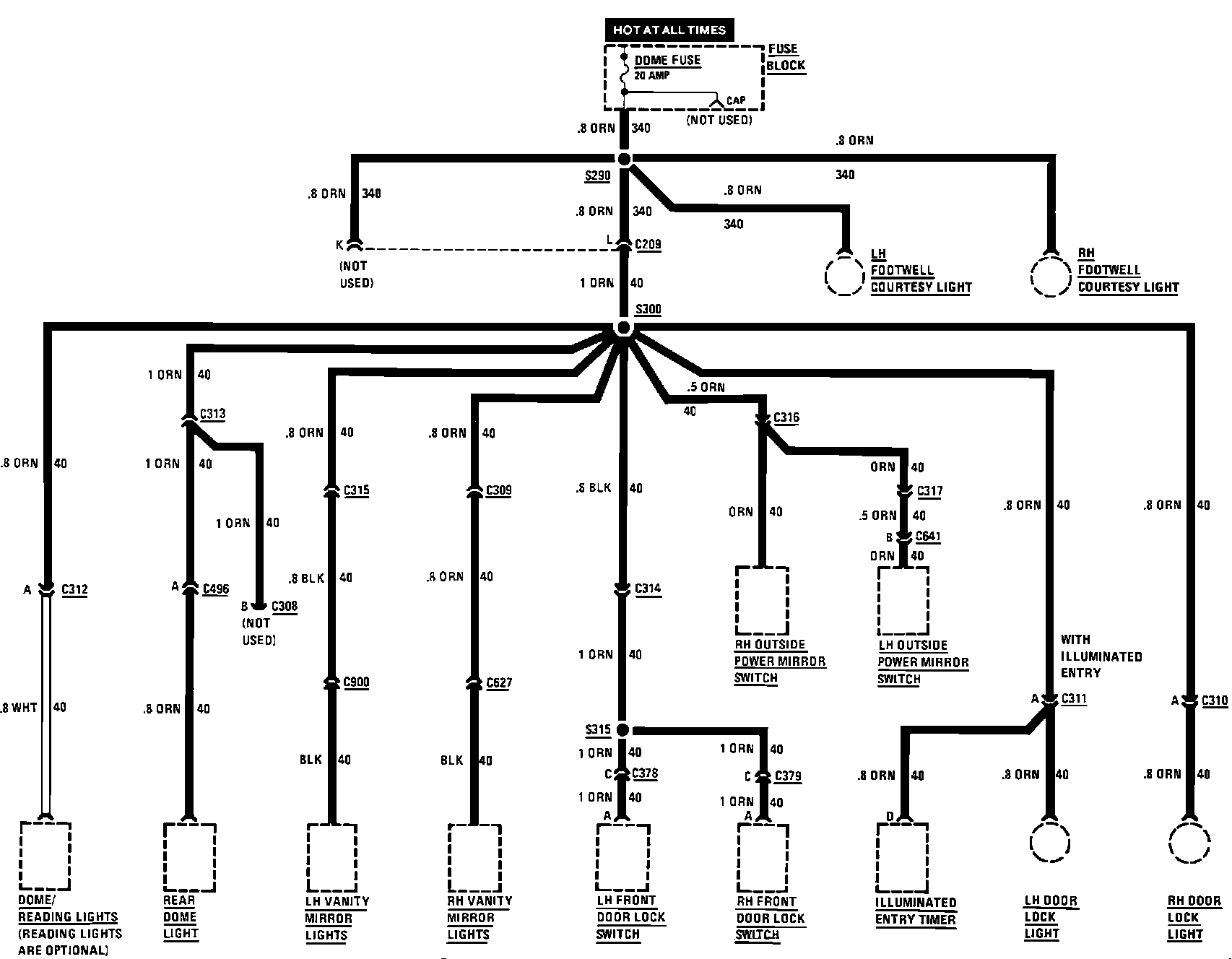

Fuse Block Details (Dome):
