Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1989
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Marker Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

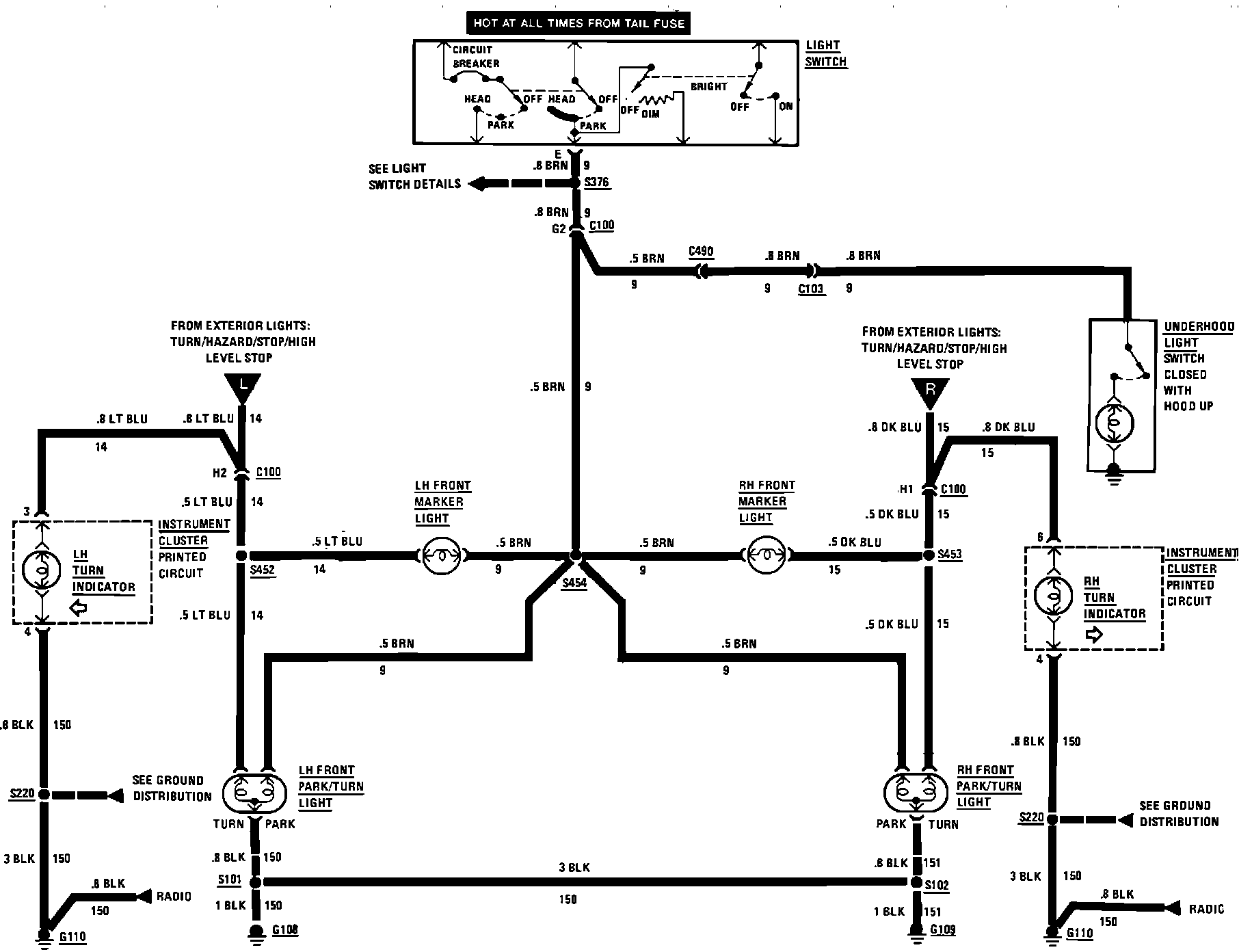

Exterior Lamps (Front Marker, Front Park, Hazard/Turn & Underhood):
