Electrical Diagrams

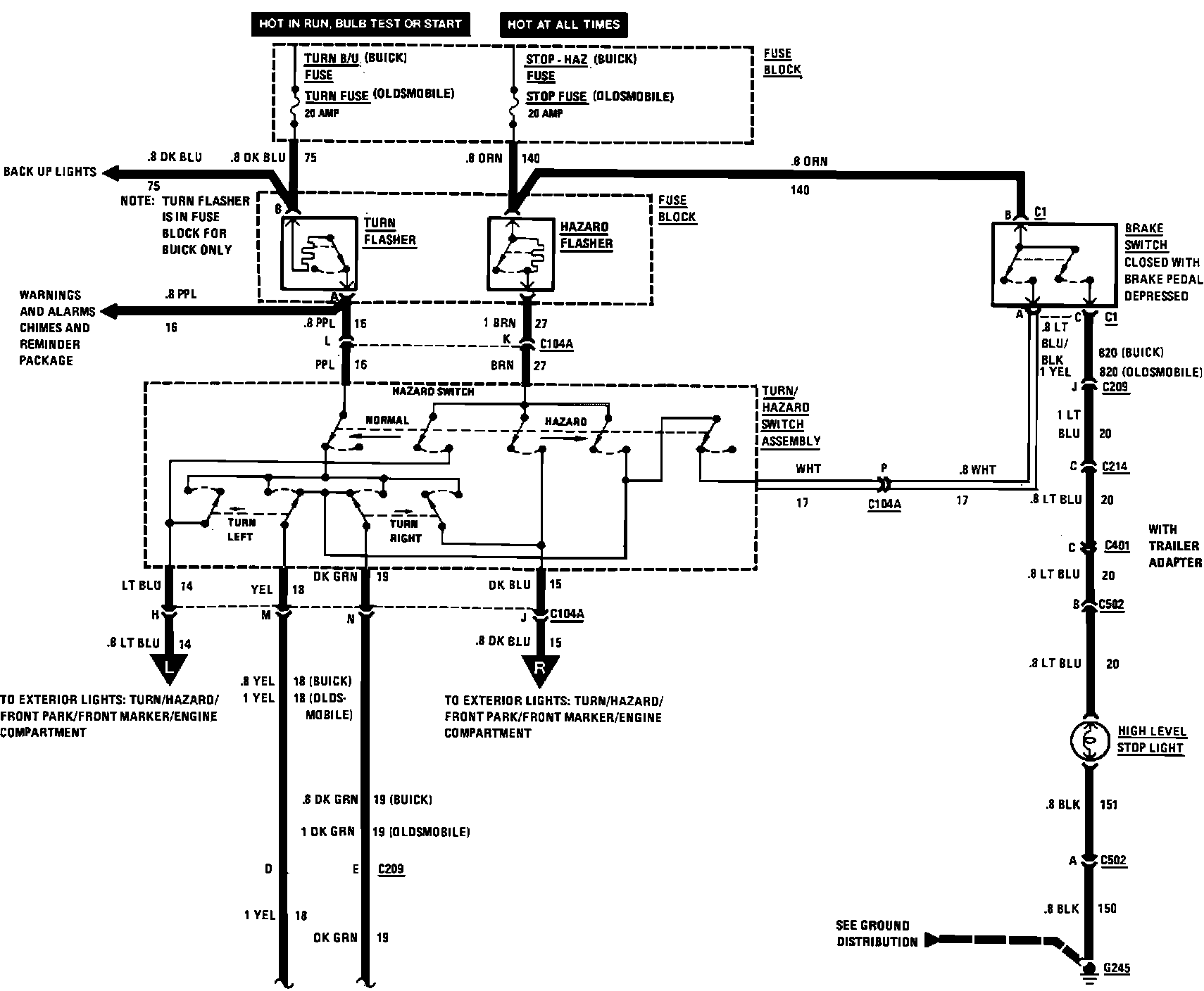

Exterior Lamps (Hazard/Turn, High Level Stop & Stop):

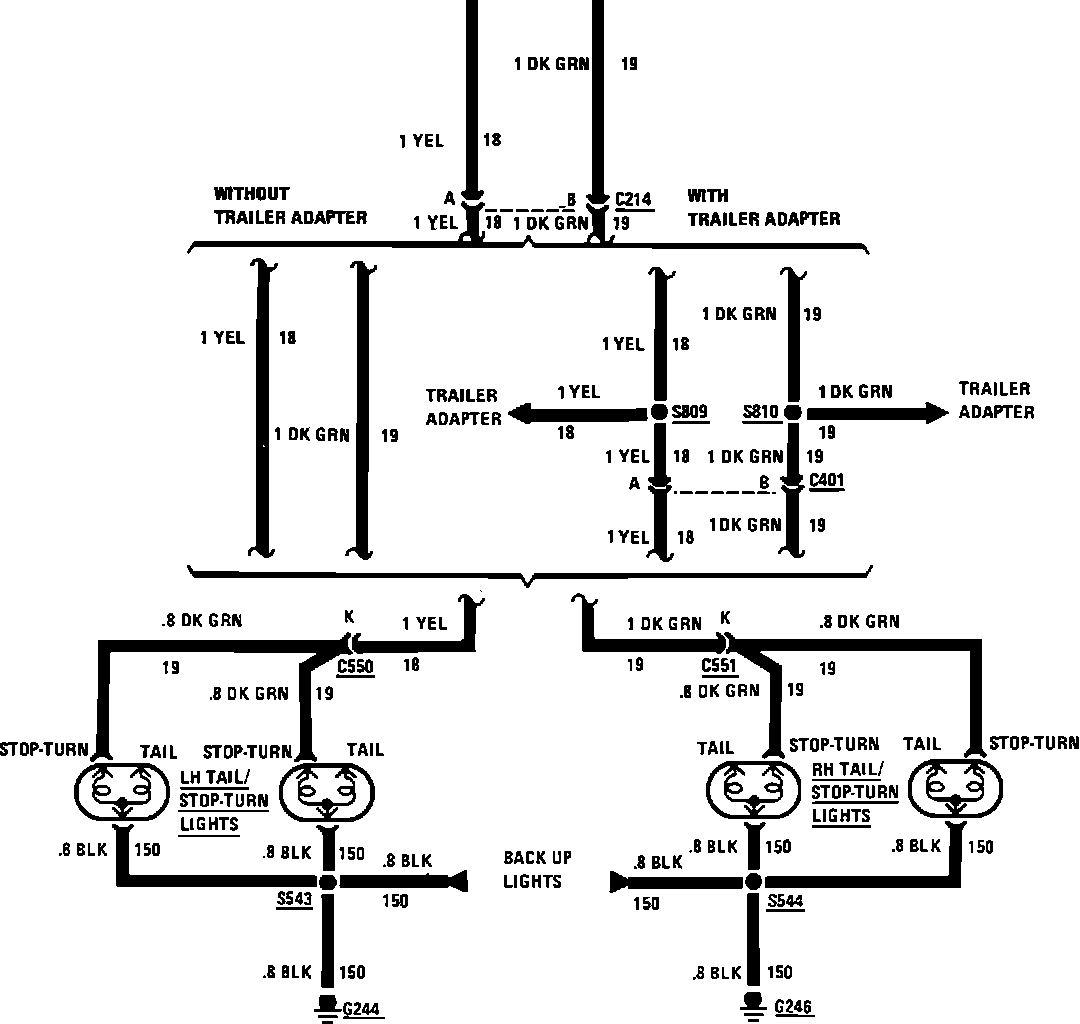

Exterior Lamps (Hazard/Turn, High level Stop & Stop):
