Oldsmobile
>>
1989
>>
Custom Cruiser V8-307 5.0L
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Key Reminder Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

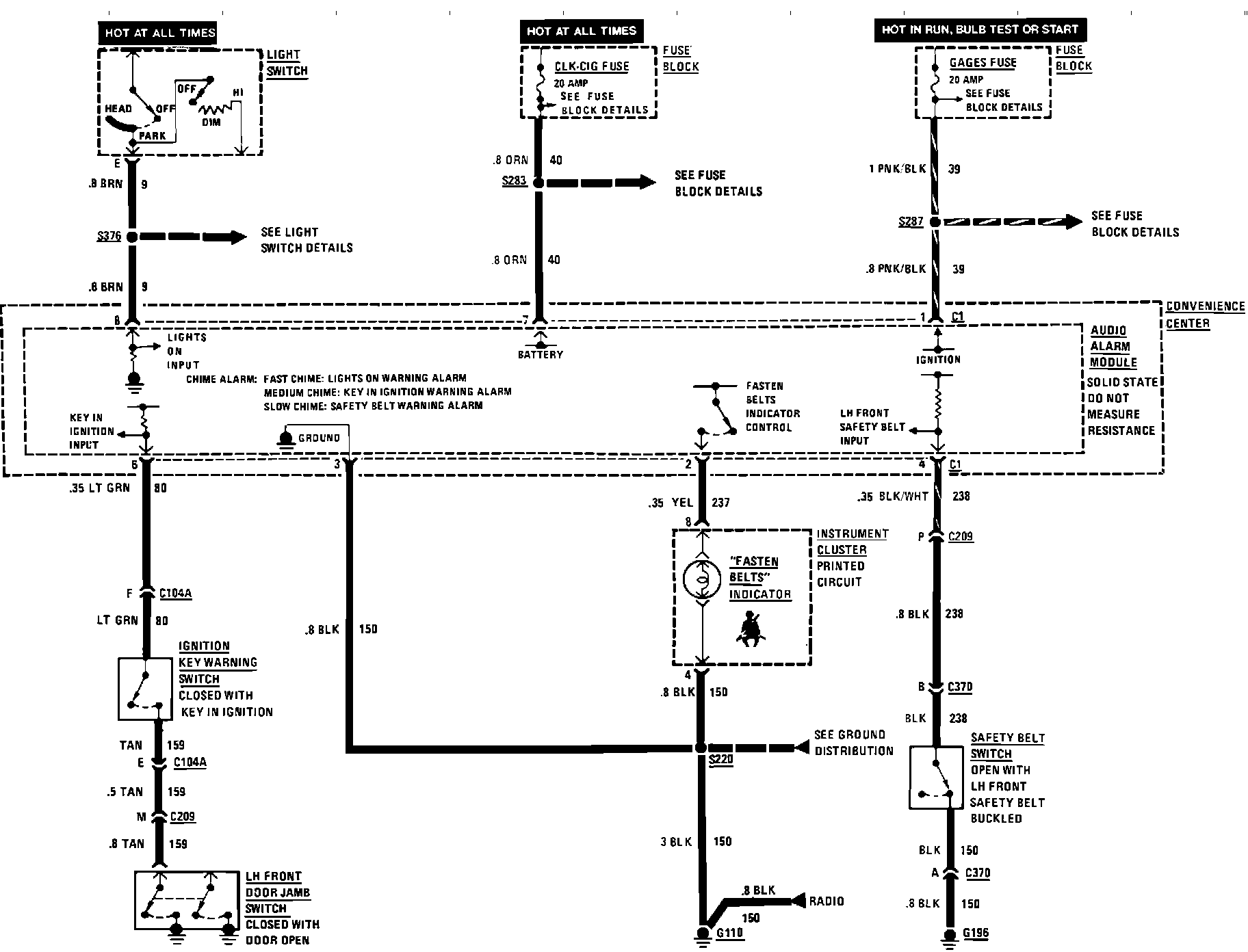

Alarms & Warnings (Fasten Belts, Key In & Lights On):
