Oldsmobile
>>
1989
>>
Calais L4-151 2.5L VIN U TBI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Injectors
Fuel Injectors

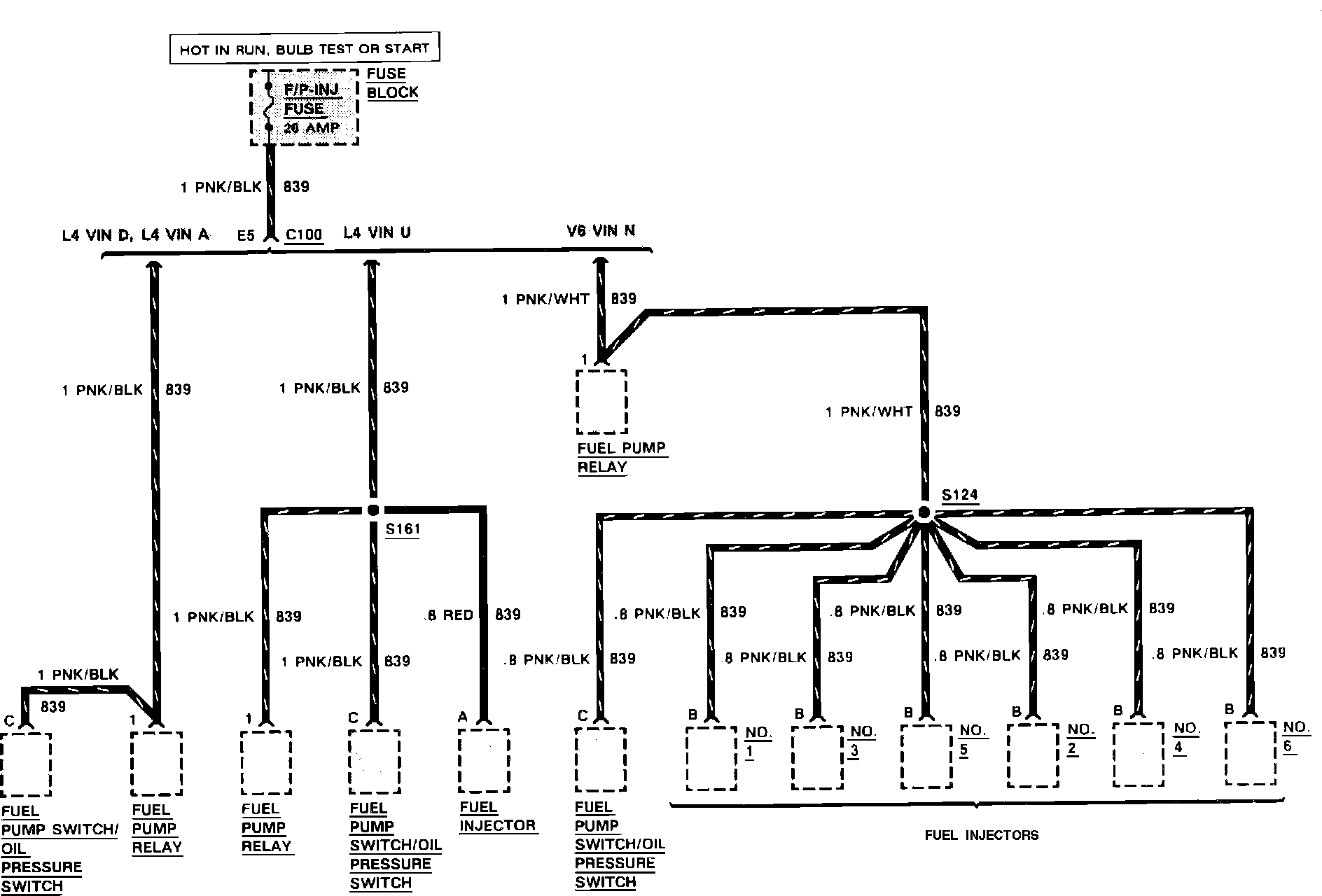

Fuse Block Details (Fuel Pump & Fuel Injectors):
