Home >> Oldsmobile >> 1989 >> Calais L4-151 2.5L VIN U TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Courtesy Lamp >> I/P Compartment >> 2 Door

2 Door

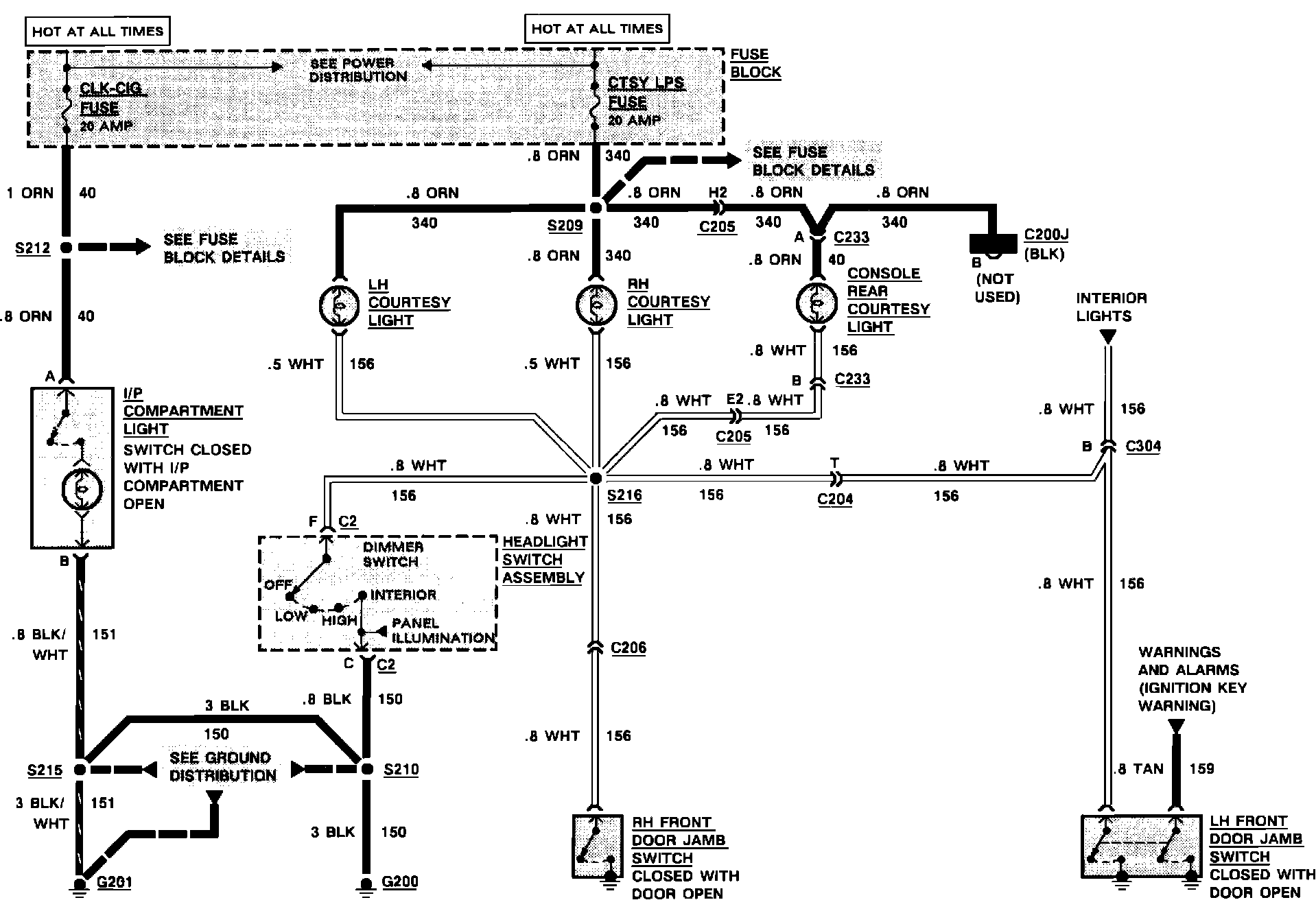

Interior Lights (Courtesy, I/P Compartment) 2 Door Standard:
