A/T - New Spring Dowel Case Cover Pins
89oldsmobile03SUBJECT: NEW SPRING DOWEL CASE COVER PINS (NEW PRODUCT INFORMATION)
MODELS/YEARS: 1989 CUTLASS CALAIS, CUTLASS CIERA EQUIPPED
WITH 125C/HYDRA-MATIC 3T40 (MD9) TRANSAXLE
NUMBER: 89-T-28
CORP. REF. NO: 877158
DATE: January 1989
SECTION: 7A
FIGURE 1:
BULLETIN COVERS: (Refer to Figure 1)
New Spring Dowel Case Cover Pins (101) for the Case Cover (401) to Case (15) that are hollow in design to prevent coming out of the case while the Case Cover is removed during service and/or reassembly of any THM 125/125C/HYDRA-MATIC 3T40.

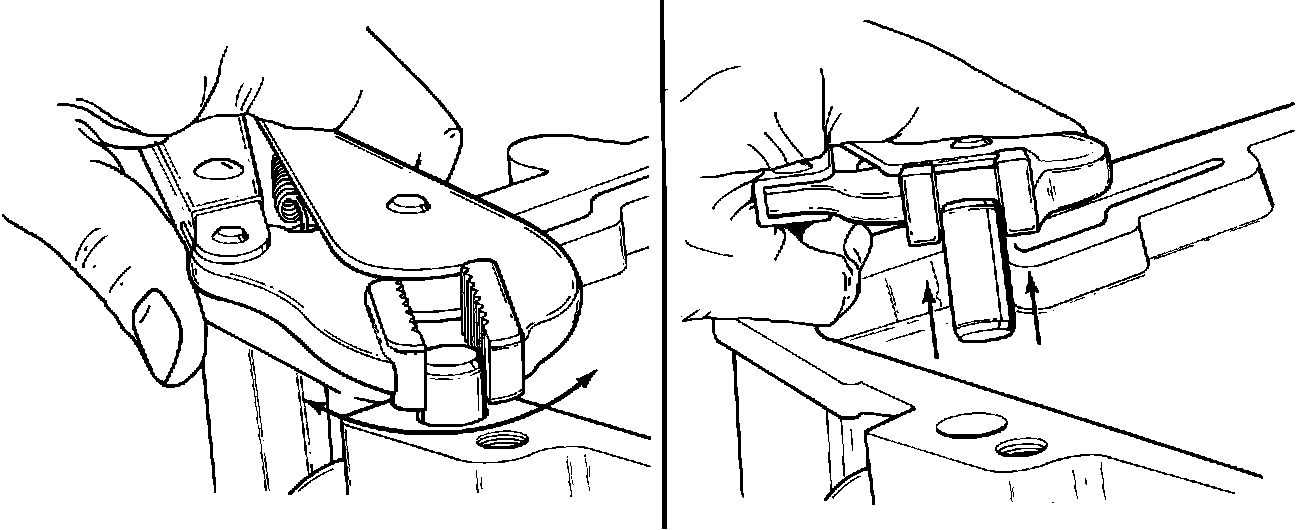

FIGURE 2 - REMOVAL OF PREVIOUS DOWEL PIN:

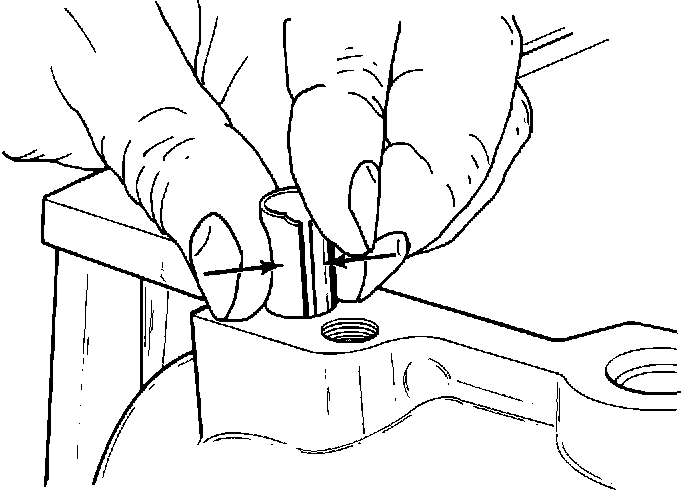

FIGURE 3 - INSTALLATION OF NEW DOWEL PIN:
DATE OF PRODUCTION CHANGE:
The new Spring Dowel Case Cover Pins went into production November 14, 1988 (Julian Date 319).
SERVICE ACTION: (Refer to Figures 2-3)
The new Pins can be used to service all past model THM 125/125C/HYDRA-MATIC 3T40 transaxles. Do not mix new style Spring Dowel Case Cover Pins with previous style Dowel Pins.
If removal of the old Pin is necessary use the following procedure:
1. Grasp the sides of Dowel Pin, twist and pull out of Case. (Figure 2)
2. Install the new pin by squeezing the Pin together and seating in the Case. (Figure 3)
SERVICE PARTS INFORMATION:
When ordering new Spring Dowel Case Cover Pins refer to the following part number:
Part No. Package Description
8665946 2 Pins, Spring Dowel
Pans are expected to be available on 2/6/89. Until then normal part orders will not be accepted by GMSPO. Only verifiable emergency VIP orders will be accepted. GMSPO will make every effort to obtain parts. All parts will be placed on 400 control to waive VIP surcharges. However, the part will be shipped premium transportation at the dealer's expense. All other order types will be cancelled as incorrectly ordered while the 400 control is in place.
SERVICE MANUAL REFERENCE:
Whenever service to any THM 125/125C/HYDRA-MATIC 3T40 is necessary, refer to the Unit Repair Section of your Service Manual.
