Engine Controls - Revised Chart C3, Canister Purge Valve

89Oldsmobile10

SUBJECT: SERVICE MANUAL UPDATE - SECTION 6E3 - DRIVEABILITY AND EMISSIONS REVISED CHART C-3

MODELS/YEARS: 1987-1989 CUTLASS CALAIS WITH
2.3L (VIN CODE A, D) ENGINE
NUMBER: 89-T-114

CORP. REF. NO: 916518

DATE: August 1989

SECTION: 6E

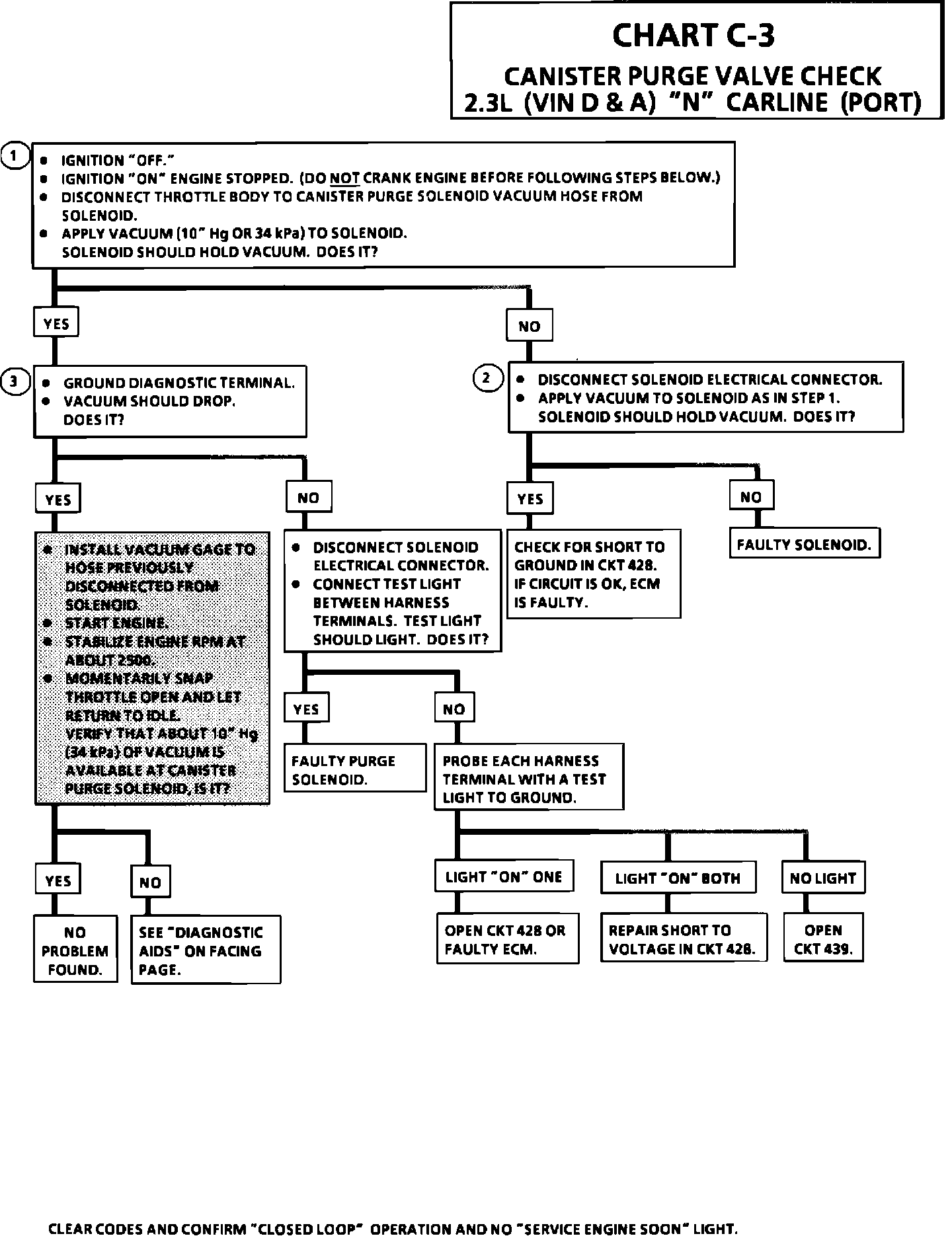

This bulletin serves to update Chart C-3, "Canister Purge Valve Check" in Section 6E3-C3-5, "Driveability And Emissions" in the 1987 through 1989 Service Manuals with 2.3L "N" (VIN D and A) applications.
