Home >> Oldsmobile >> 1989 >> Calais L4-138 2.3L VIN D FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Courtesy Lamp >> Console Shift

Console Shift

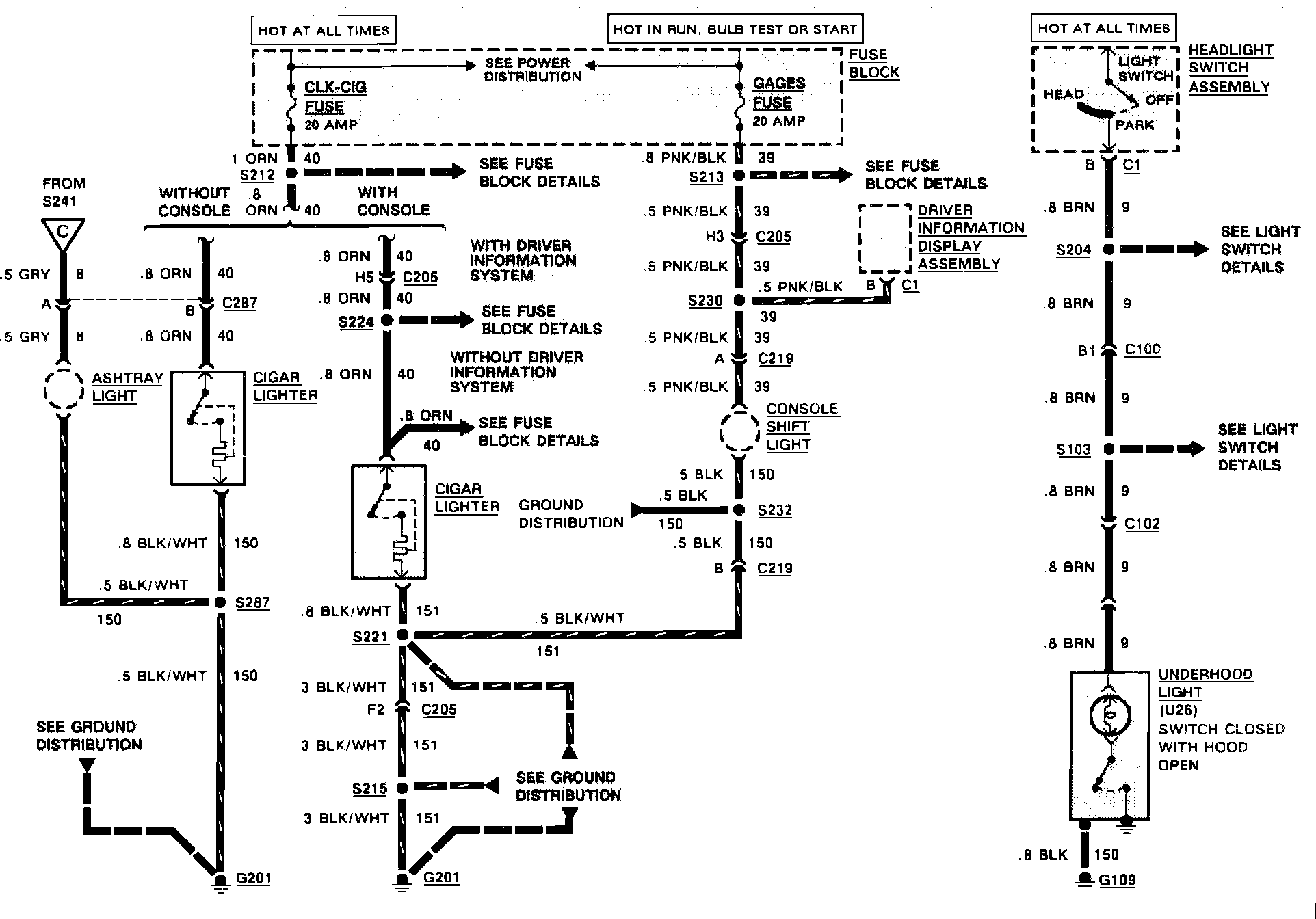

Interior Lights (Ashtray, Cigar Lighter, Console Shift & Underhood):
