ECM Power & Fuel Control

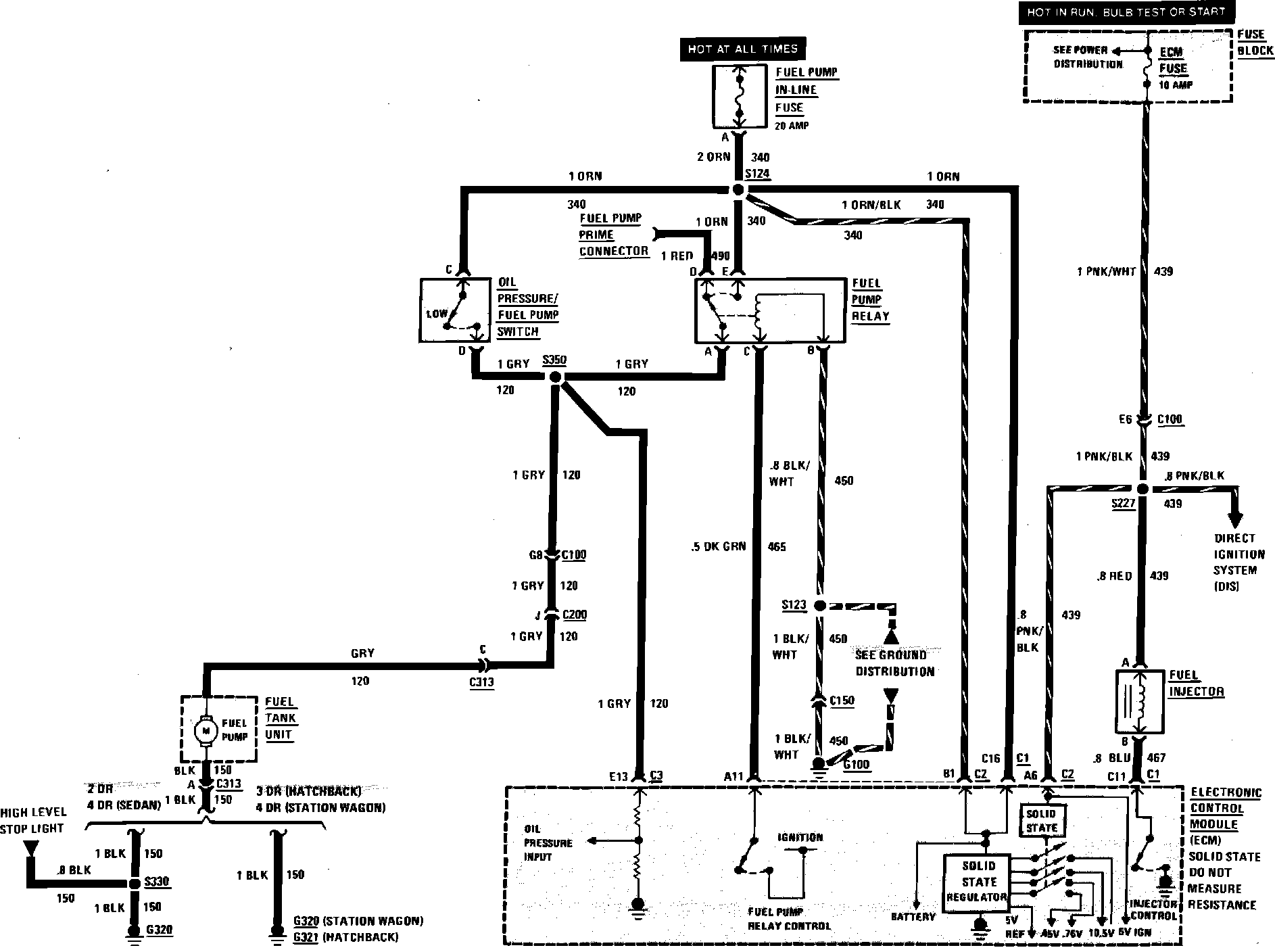

Fig. 295 Throttle Body Injection Wiring Circuit (ECM Power & Fuel Control) W/4-121/2.0L VIN 1 Engine:
