Oldsmobile
>>
1987
>>
Firenza L4-121 2.0L VIN 1 TBI
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
With Pulse
With Pulse

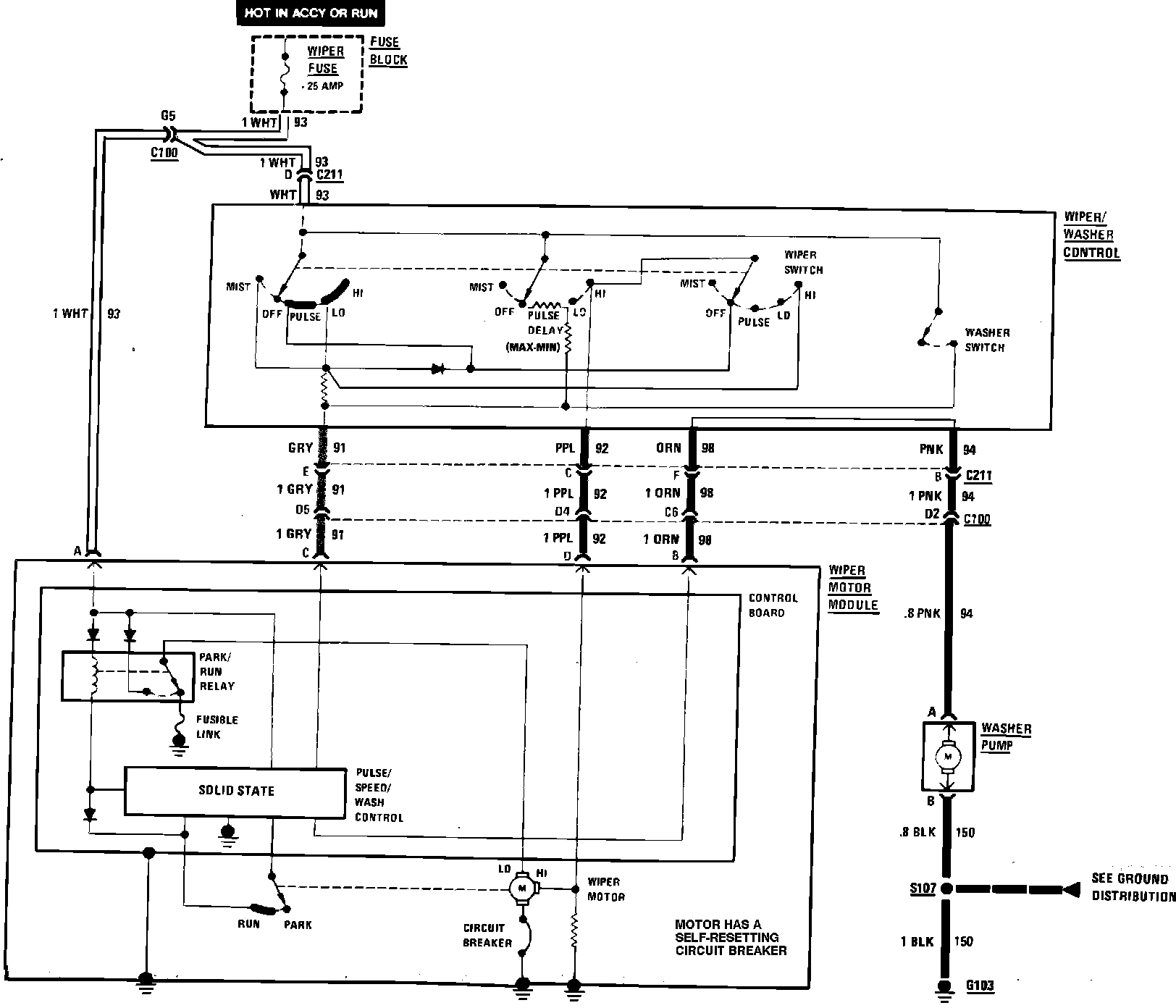

Fig. 326 Wiper/Washer Wiring Circuit Front With Pulse:
