Power Accessory Circuit Breaker & Stop Lamp Fuse

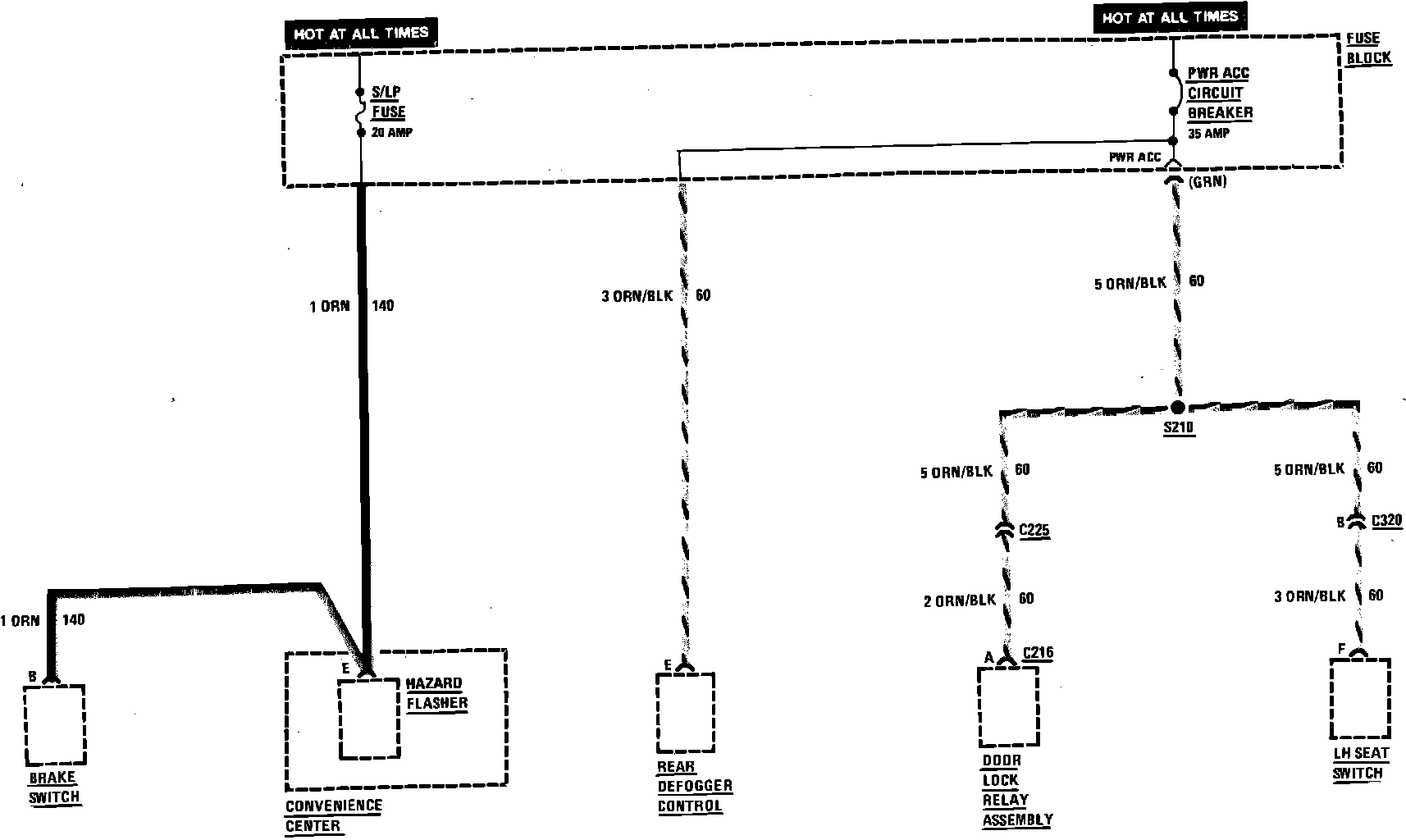

Fig. 117 Fuse Block Details Power Accessory Circuit Breaker & Stop Lamp Fuse:
