Oldsmobile
>>
1987
>>
Firenza L4-121 2.0L VIN 1 TBI
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
ECM Fuse & Tail Lamp Fuse
ECM Fuse & Tail Lamp Fuse

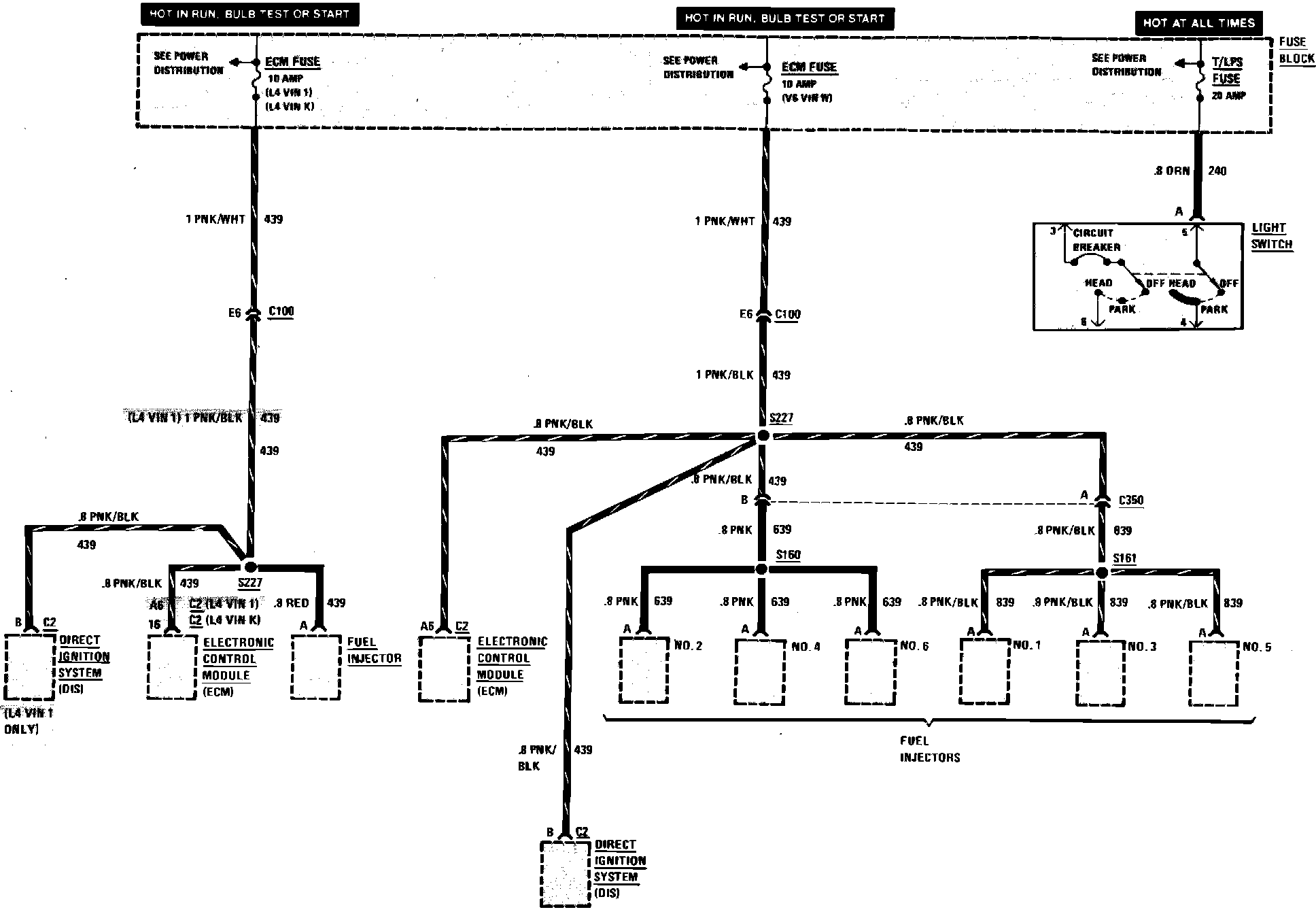

Fig. 114 Fuse Block Details (ECM Fuse & Tail Lamp Fuse):
