Ignition System & Service Engine Soon (SES) Indicator
Ignition System & Service Engine Soon (SES) Indicator

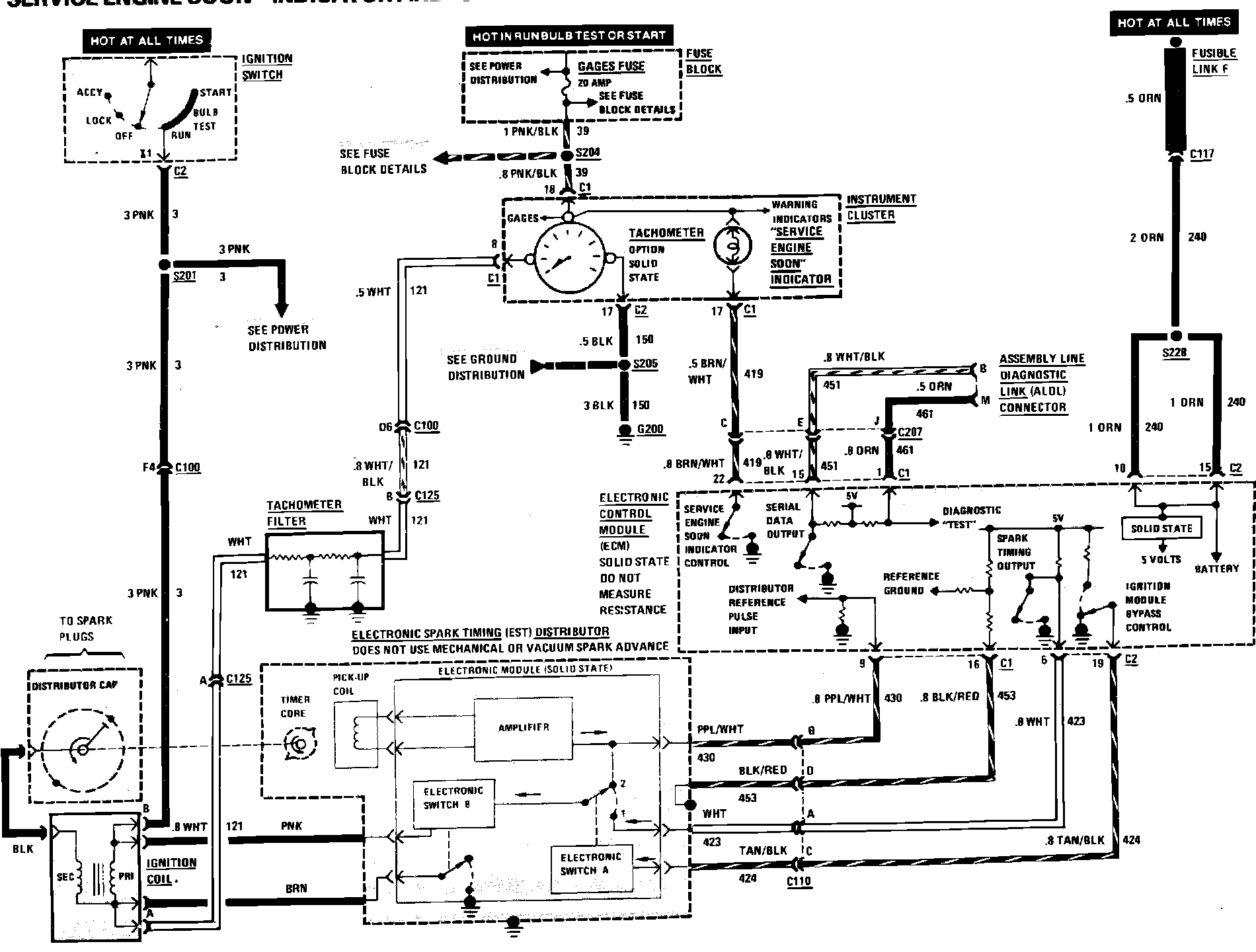

Fig. 301 Throttle Body Injection Wiring Circuit (Igniton & Service Engine Soon Indicator) W/4-121/2.0L VIN K Engine:
