Part 1 of 2

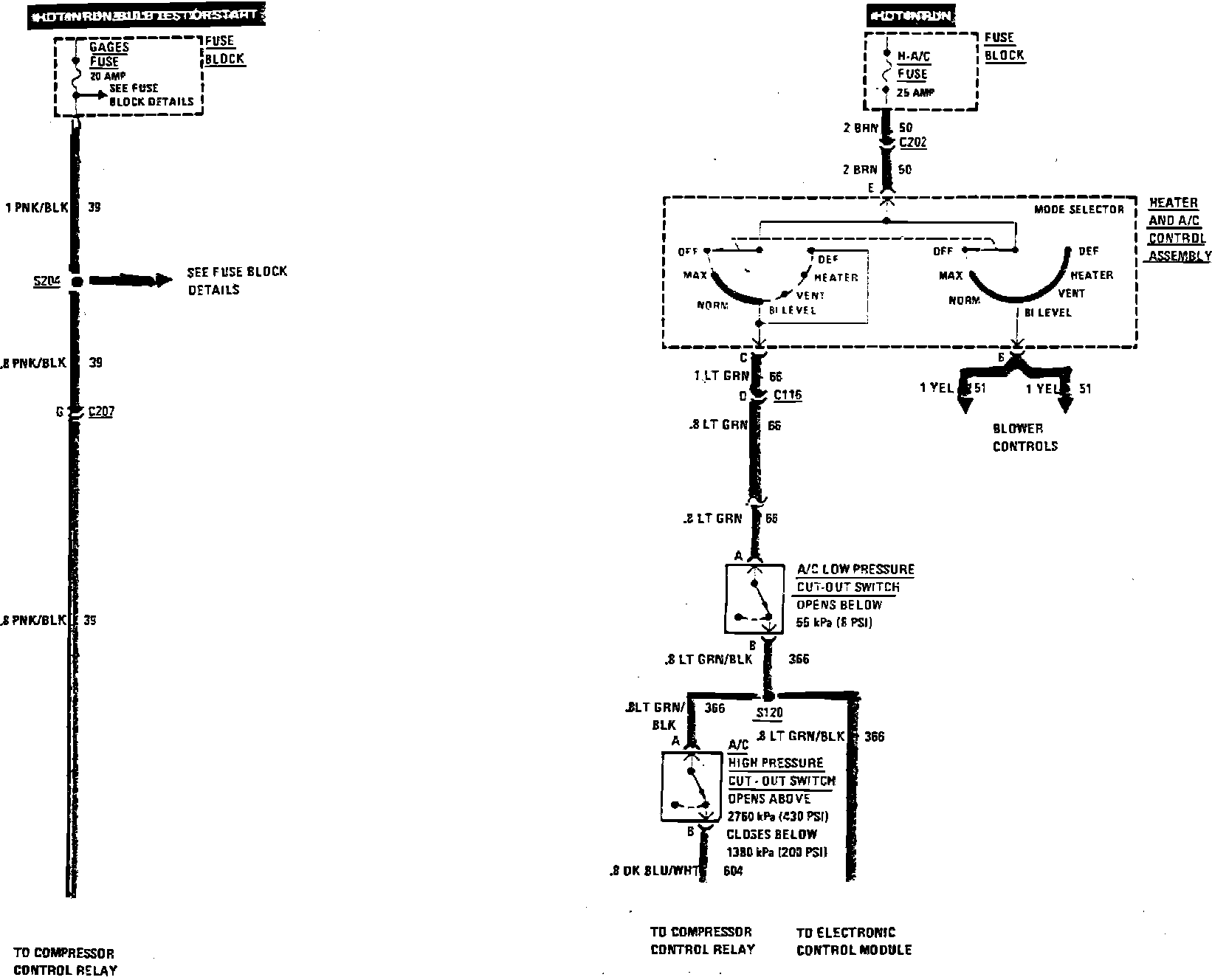

Fig. 16 Air Conditioning Wiring Circuit Compressor Control (Part 1 Of 2) W/4-121/2.0L VIN K Engine:
