Power Trunk / Liftgate Lock Actuator
>>
Manual Transmission
Manual Transmission

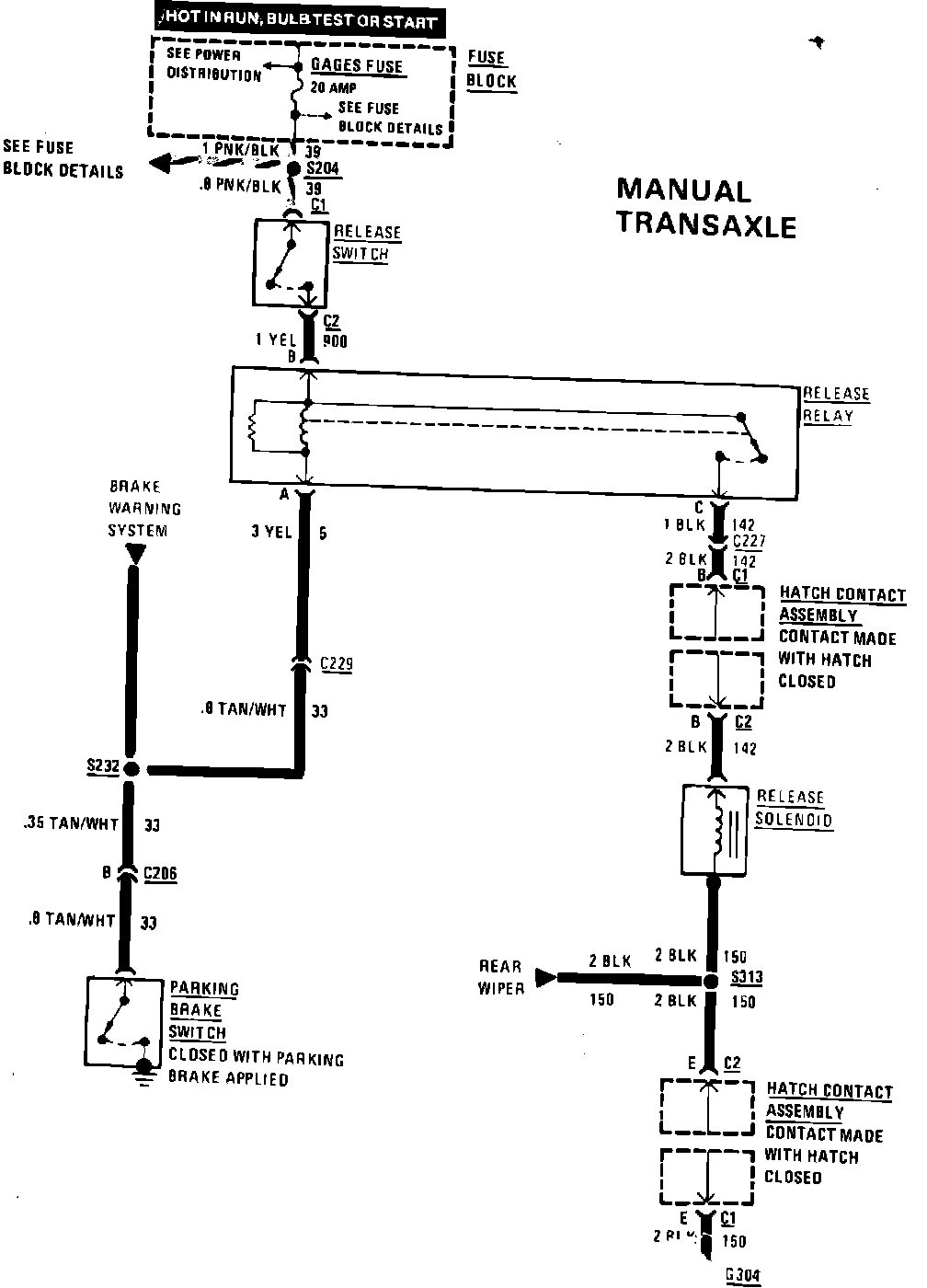

Fig. 170 Hatch Release Wiring Circuit W/Manual Transaxle:
