Firenza L4-121 2.0L VIN 1 TBI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
With Mono System
With Mono System

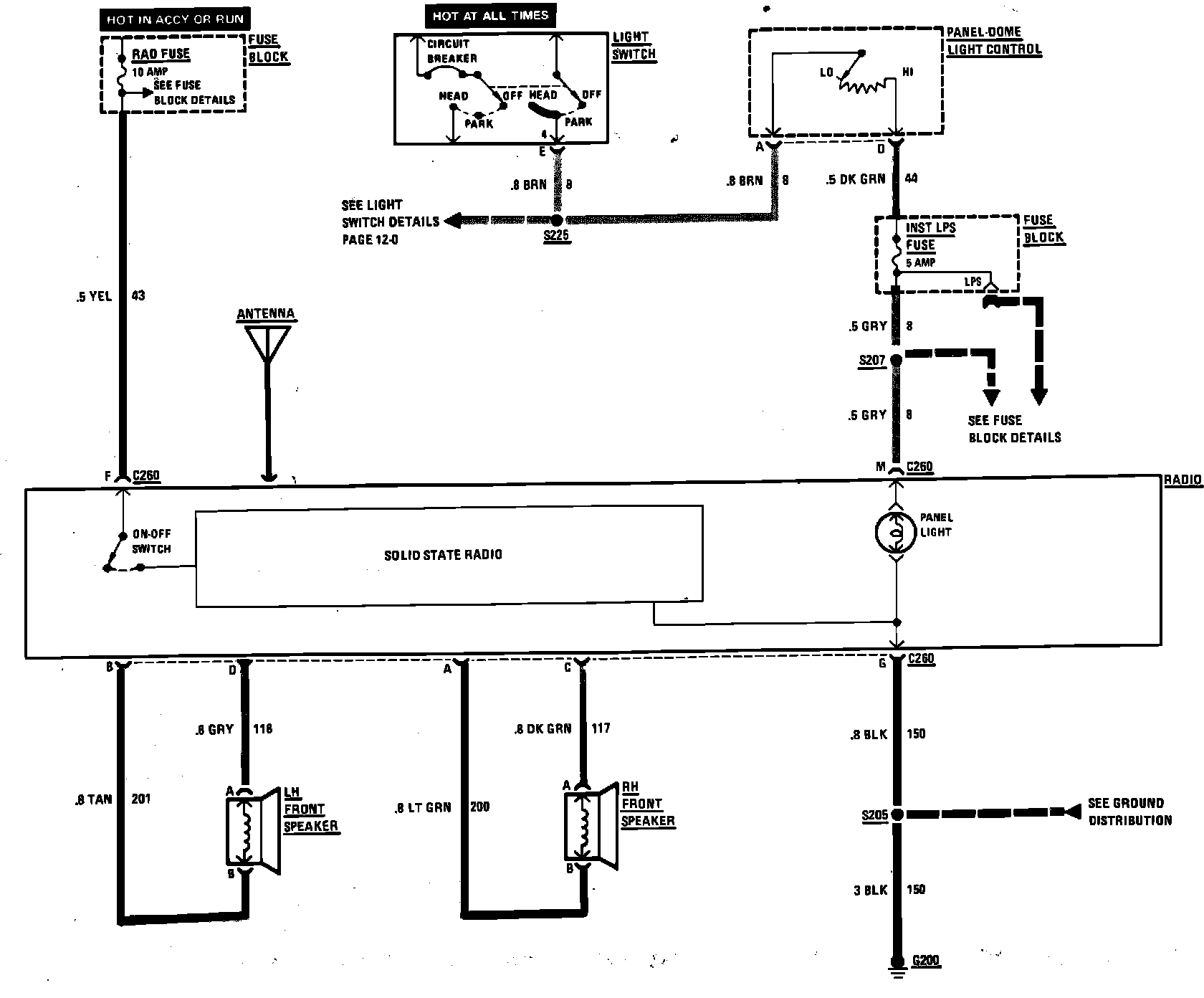

Radio Wiring Circuit (Exc. Stereo):
