Home >> Oldsmobile >> 1987 >> Firenza L4-121 2.0L VIN 1 TBI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Powertrain Controls >> Engine Data Sensors & Torque Converter Clutch >> VIN K

VIN K

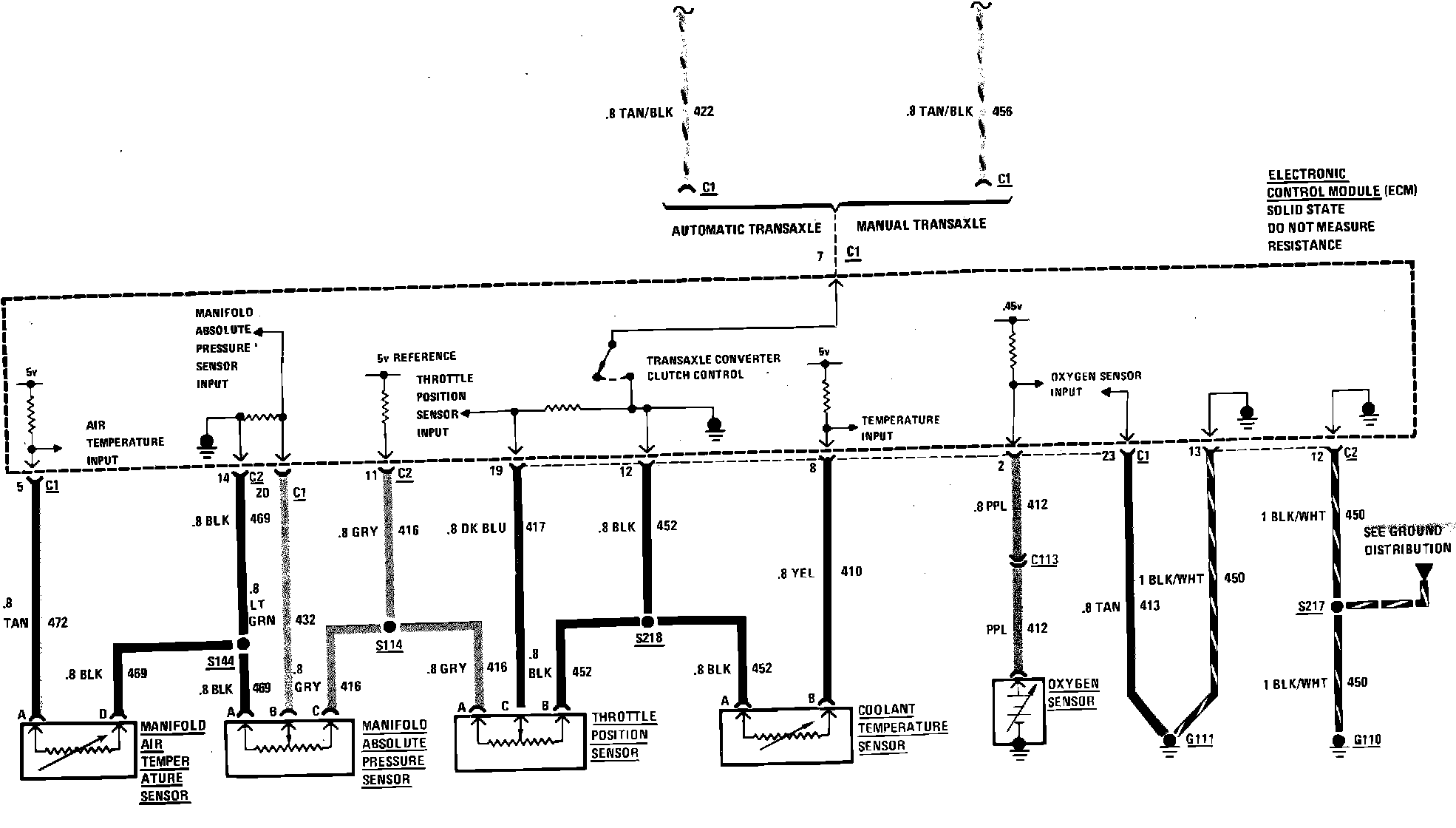

Fig. 299 Throttle Body Injection Wiring Circuit (Engine Data Sensors & Torque Converter Part 1 Of 2) W/4-121/2.0L VIN K Engine:



Fig. 299 Throttle Body Injection Wiring Circuit (Engine Data Sensors & Torque Converter Part 2 Of 2) W/4-121/2.0L VIN K Engine:
