Home
>>
Oldsmobile
>>
1987
>>
Cutlass V8-307 5.0L VIN Y 4-bbl
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>

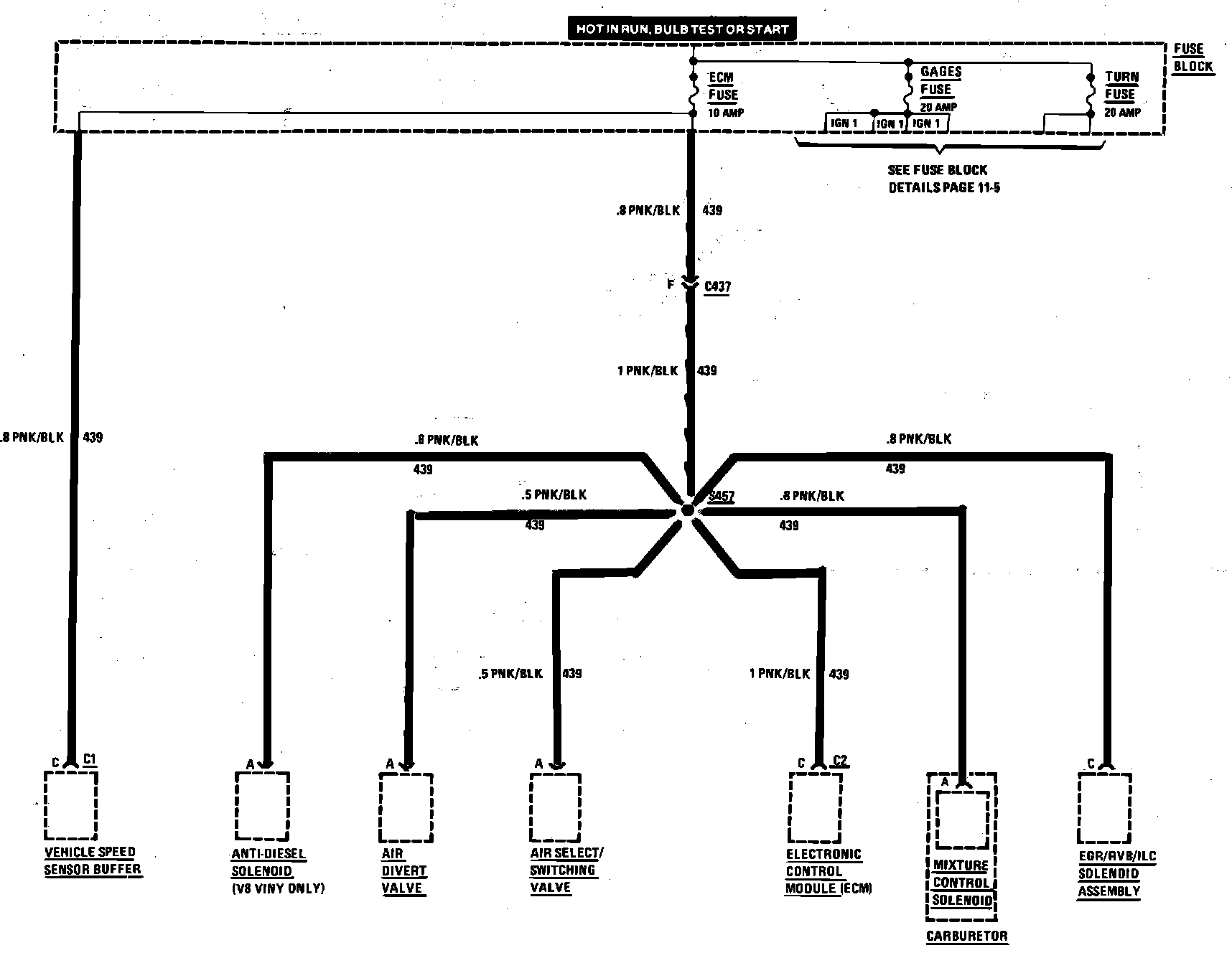

ECM Fuse
ECM Fuse
Fuse Block Details (ECM Fuse):
