A/C Fuse, F/P-C/H & WDO Circuit Breaker
A/C Fuse, F/P-C/H & WDO Circuit Breaker

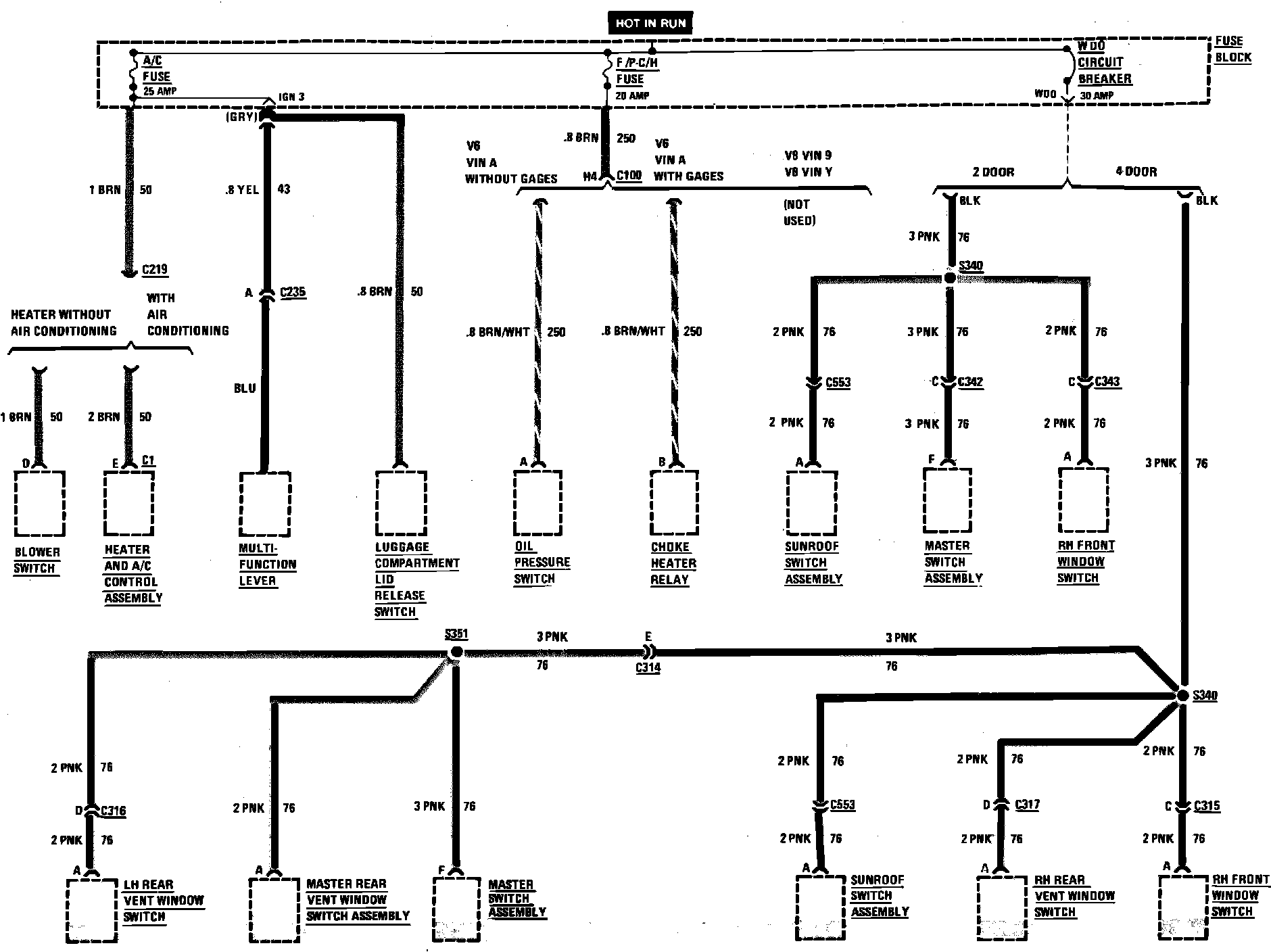

Fuse Block Details (A/C Fuse, F/P-C/H & WDO Circuit Breaker):
