Oldsmobile
>>
1987
>>
Cutlass V6-231 3.8L VIN A 2-bbl
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Trunk Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

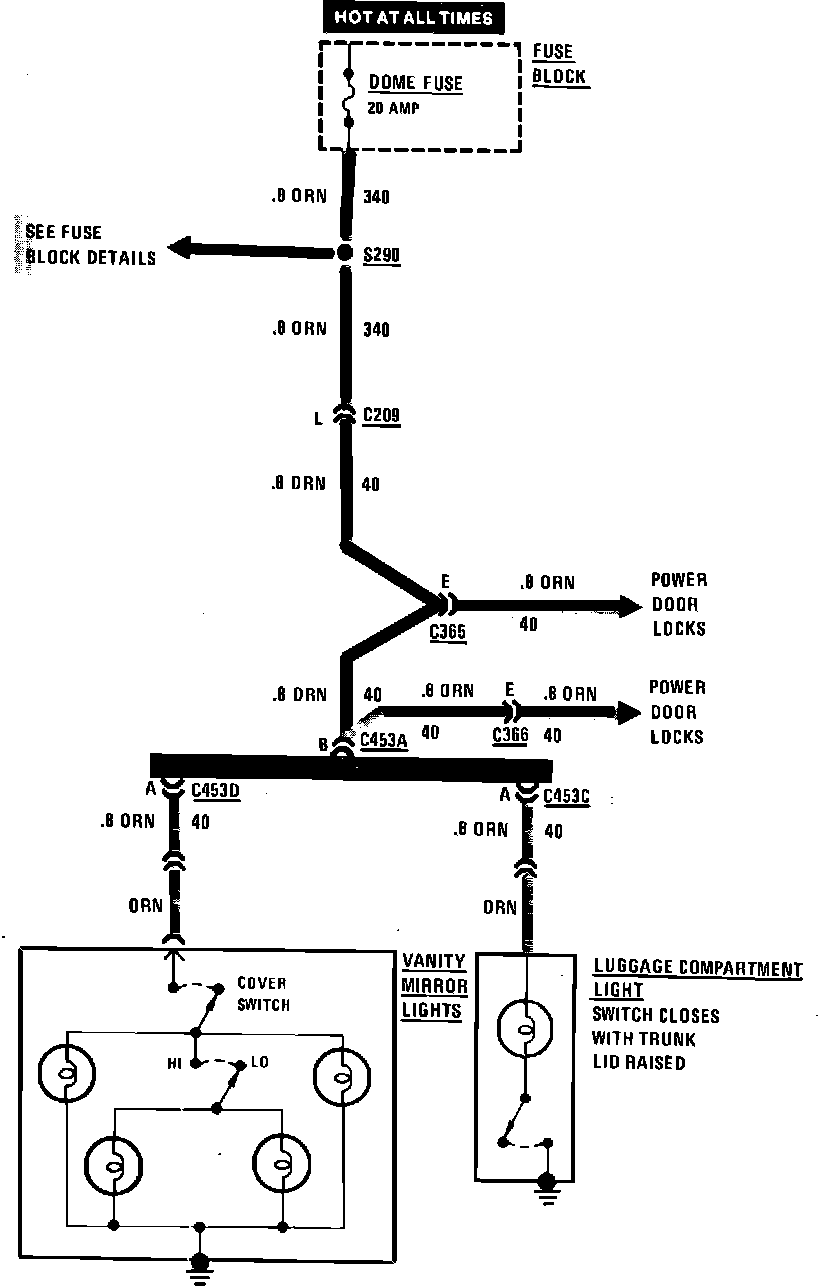

Interior Lamp Wiring Circuit (Trunk & Vanity Lamp):
