Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1987
>>
Cutlass V6-231 3.8L VIN A 2-bbl
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
Insufficient Cooling
>>
Chart B - C.C.O.T. System
Chart B - C.C.O.T. System

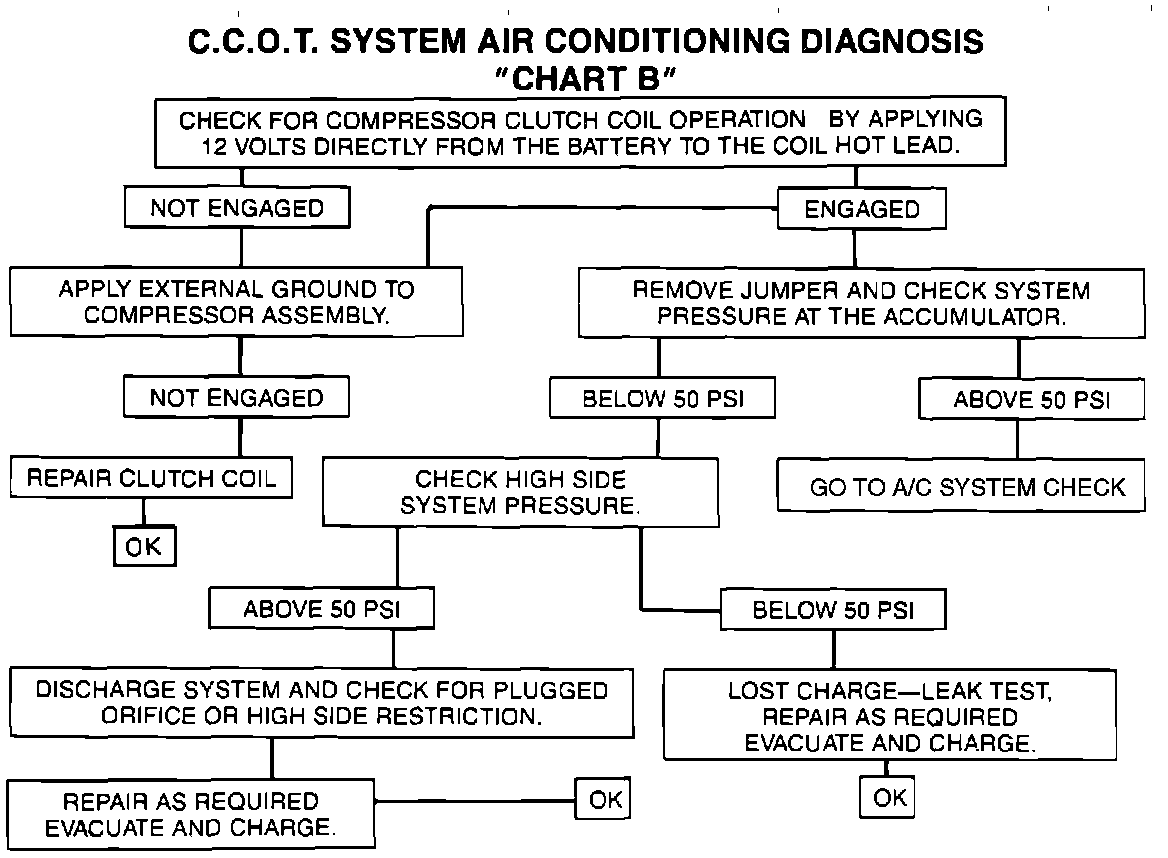

Fig. 21b A/C cooling system diagnosis (Part 2 of 5). Models w/CCOT system:
