Home >> Oldsmobile >> 1987 >> Cutlass V6-231 3.8L VIN A 2-bbl >> Repair and Diagnosis >> Heating and Air Conditioning >> Blower Motor >> Testing and Inspection >> Component Tests and General Diagnostics >> With A/C >> Test D - Blower Switch Test >> Table 2 of 2

Table 2 of 2

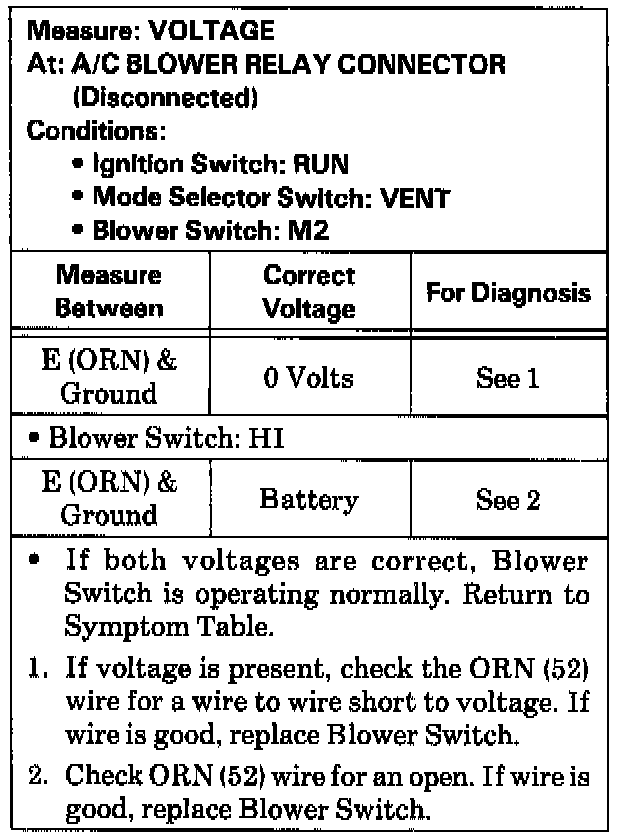

Blower Switch Test Table 2 of 2:
