Home
>>
Oldsmobile
>>
1987
>>
Cutlass V6-231 3.8L VIN A 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
System Diagram
>>
Ground Distribution
>>
G177 2 Door
G177 2 Door

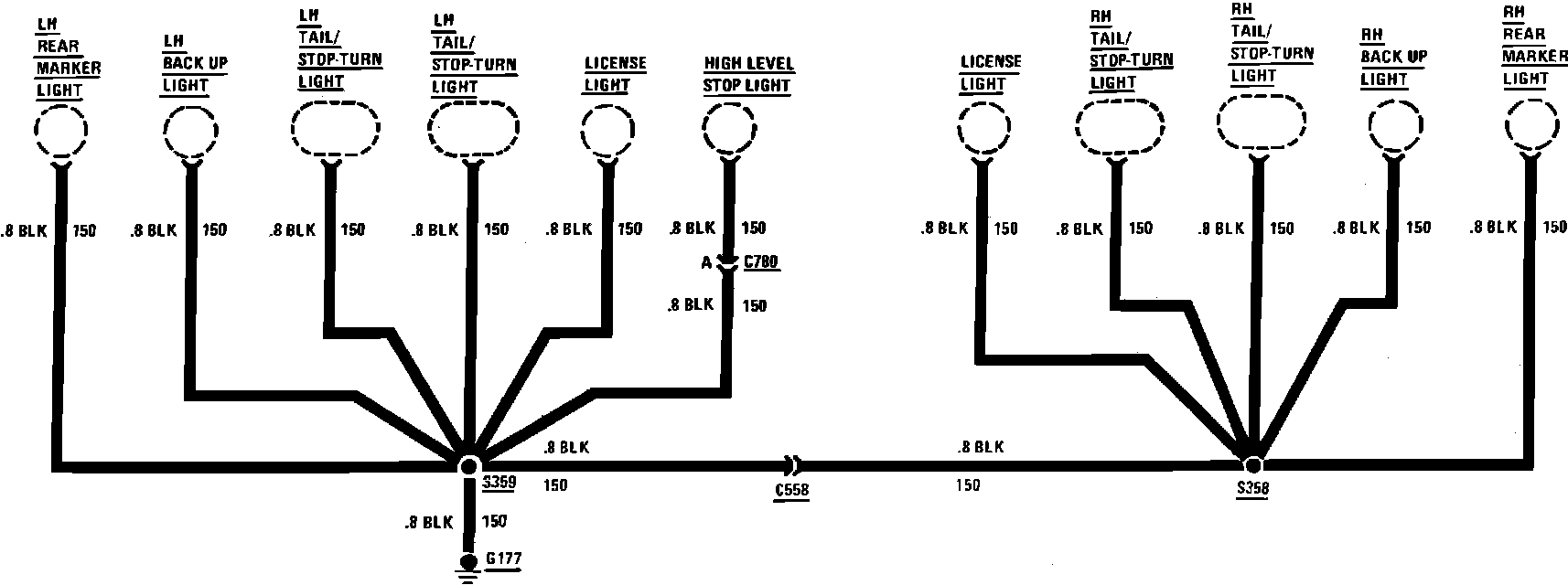

Ground Distribution G177:
