Home
>>
Oldsmobile
>>
1987
>>
Cutlass V6-231 3.8L VIN A 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Mono
Mono

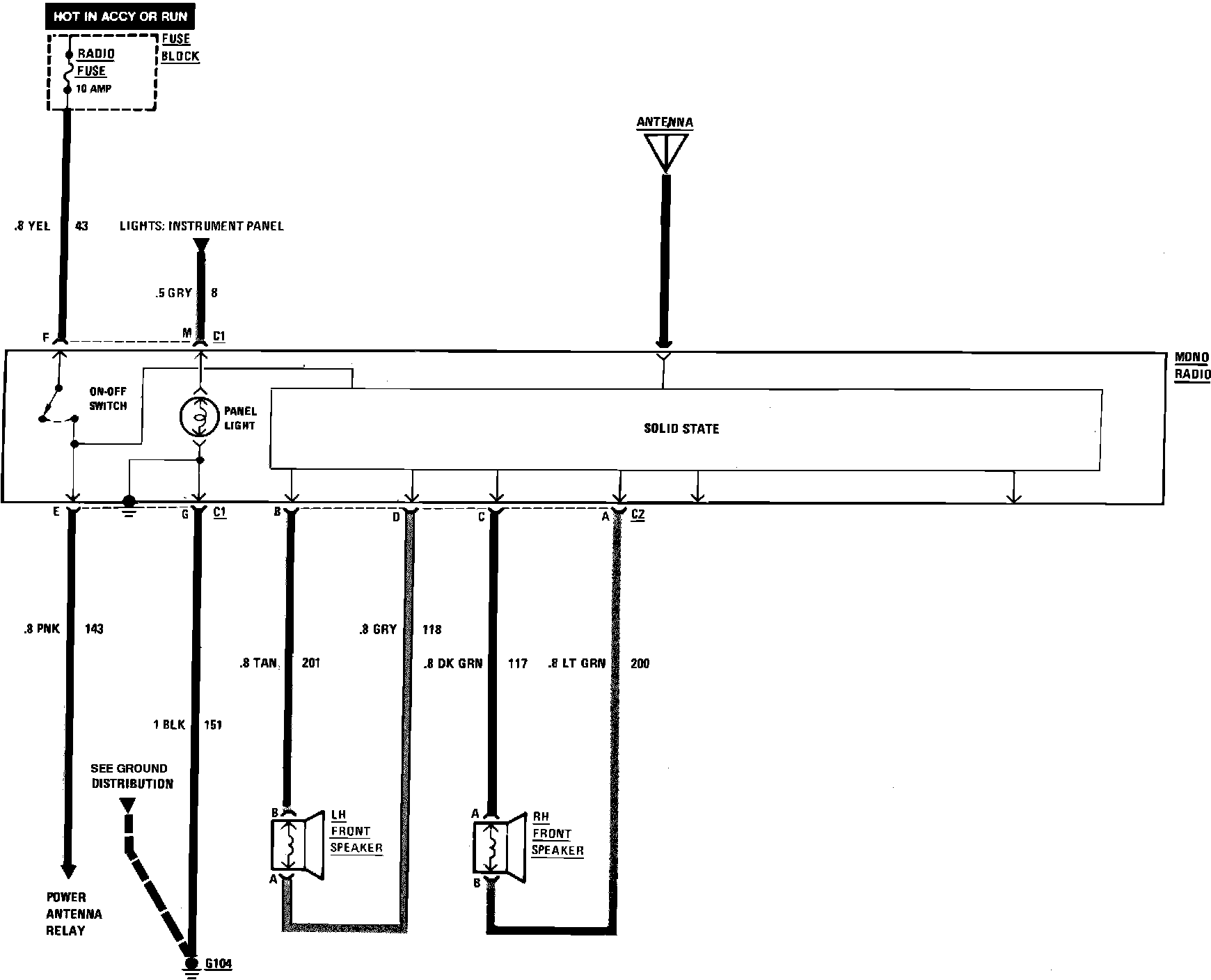

Radio Wiring Circuit (With Mono System):
