Home >> Oldsmobile >> 1987 >> Cutlass V6-231 3.8L VIN A 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Blower Motor >> With A/C >> Table 1 of 2

Table 1 of 2

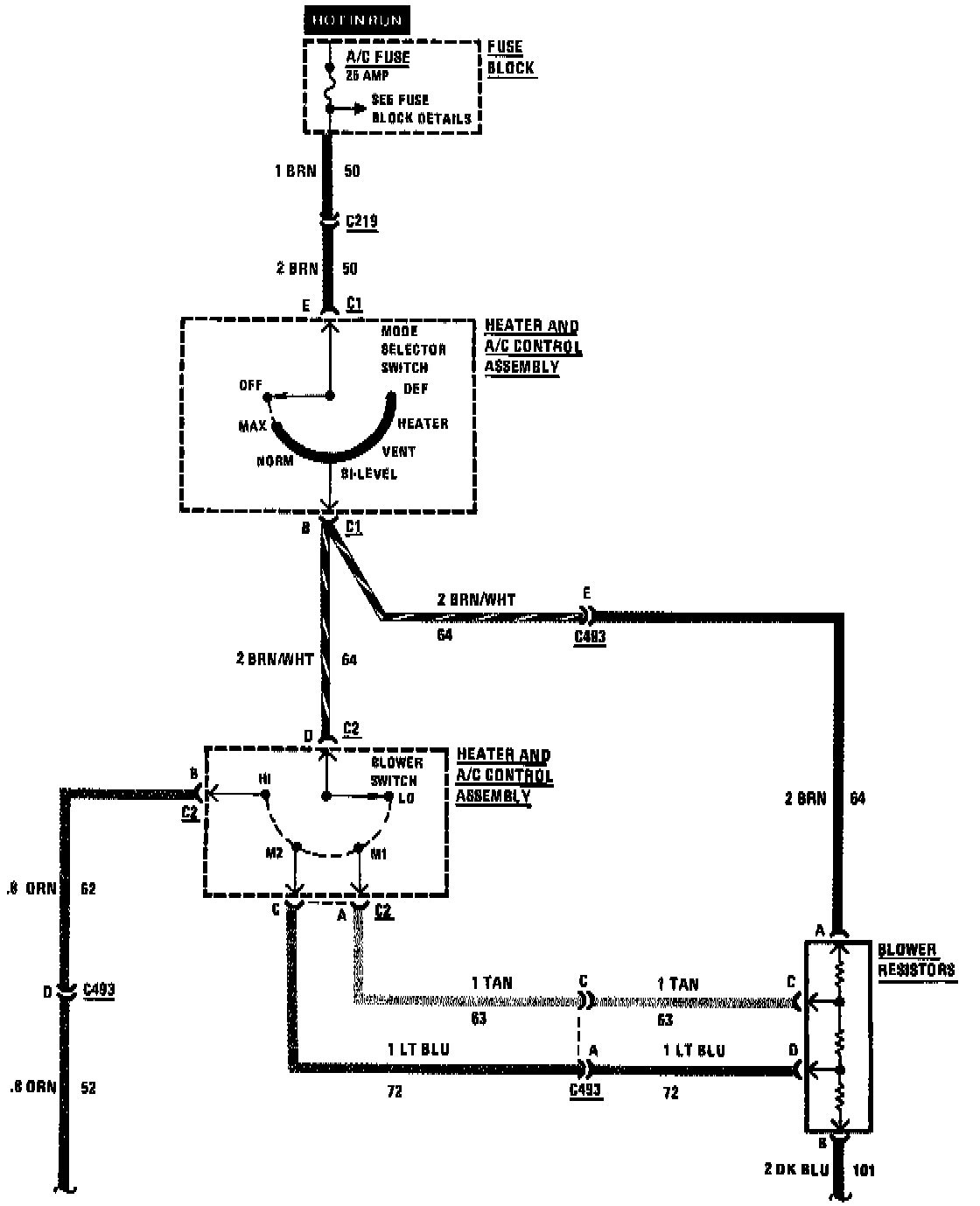

Blower Controls Table 1 of 2:
