Home
>>
Oldsmobile
>>
1987
>>
Cutlass Ciera Cruiser V6-231 3.8L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Pump & Injector Fuse
Fuel Pump & Injector Fuse

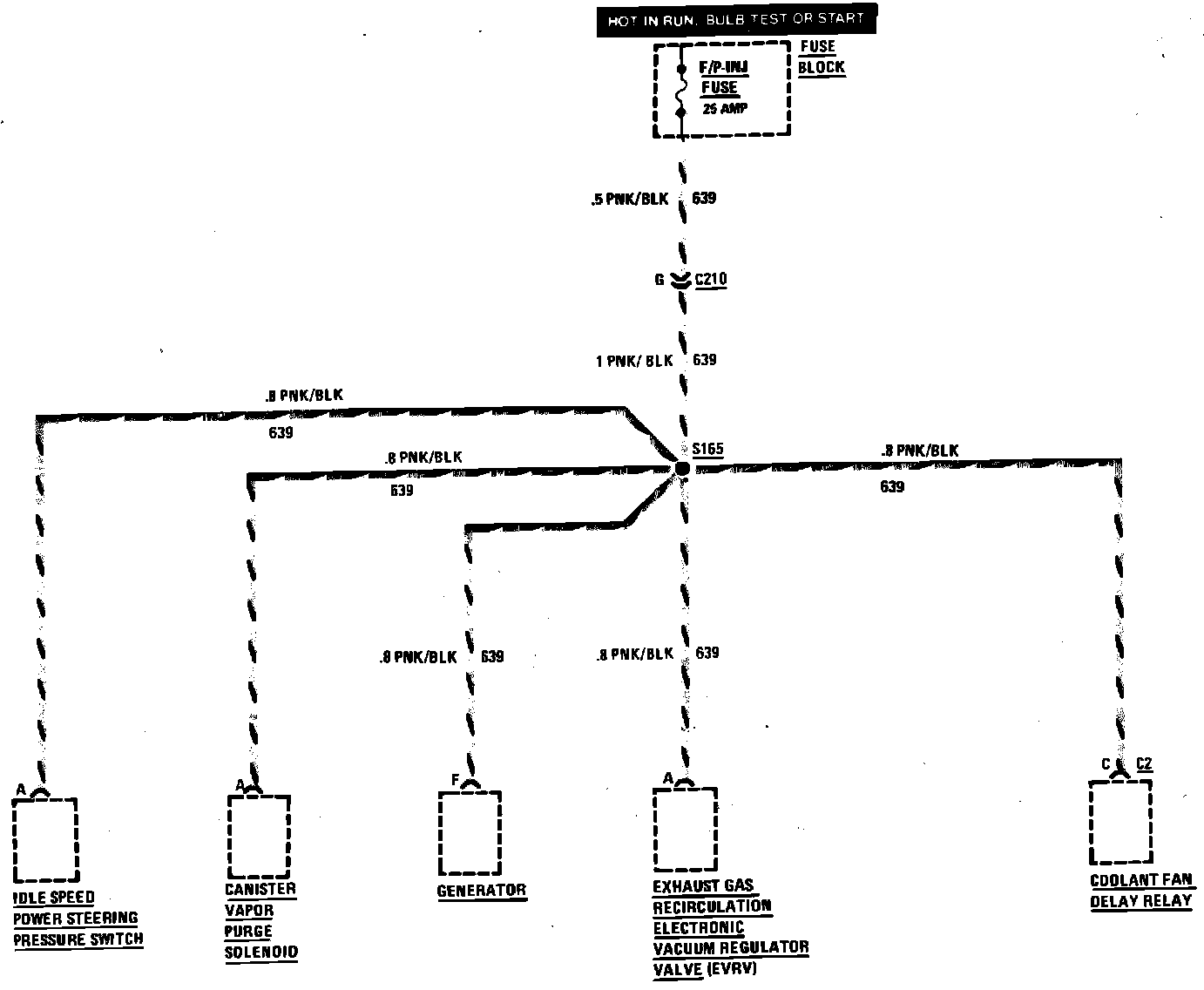

Fuse Block Details (Fuel Pump & Injector Fuse):
