Cutlass Ciera Cruiser V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
System Diagram
>>
Vehicle Speed Sensor (VSS)
>>
W/Gauges/Indicators Cluster
W/Gauges/Indicators Cluster

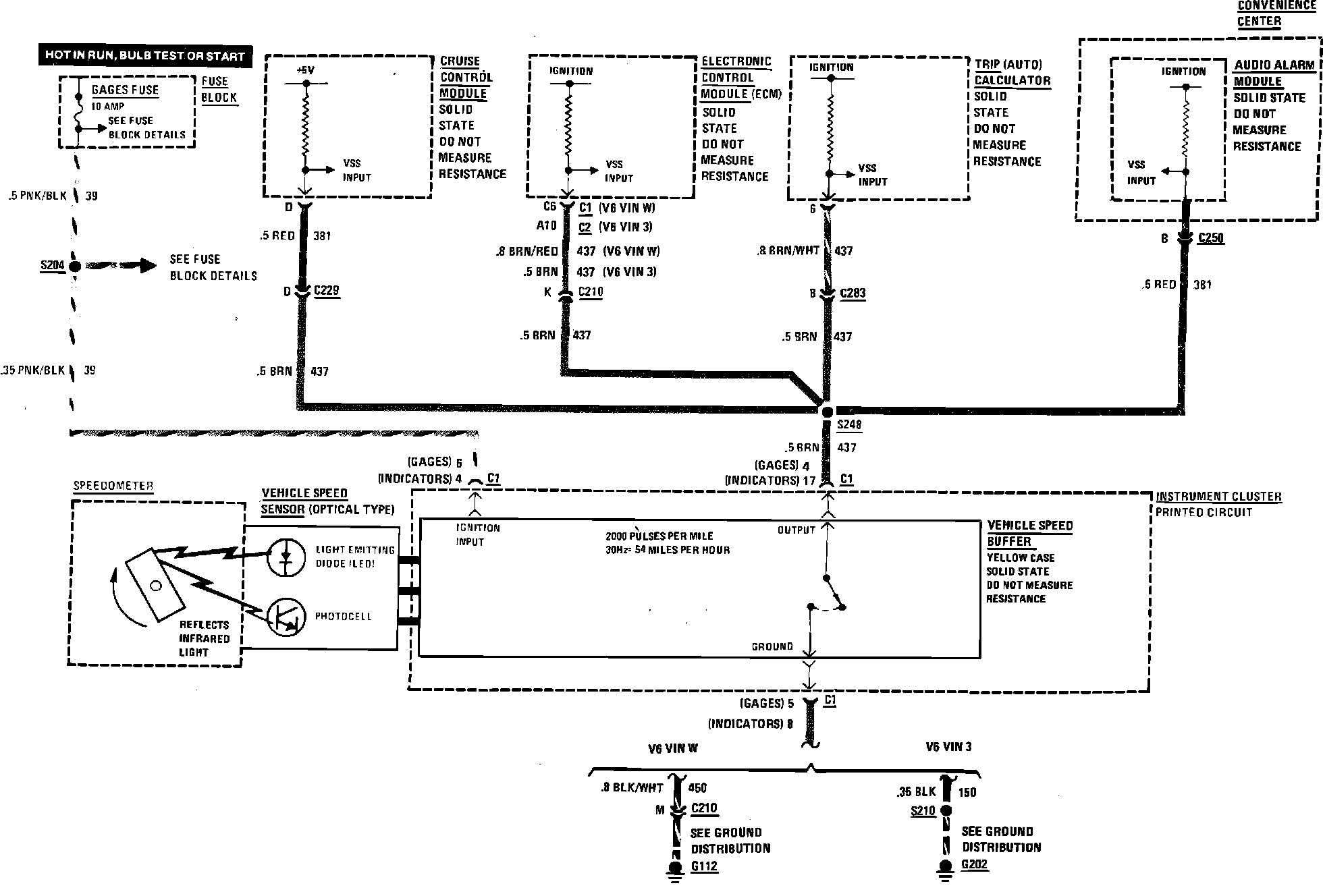

Vehicle Speed Sensor (W/Gauges/Indicators Cluster):
