Turn Signal Indicator
>>
Less Digital Cluster
Less Digital Cluster

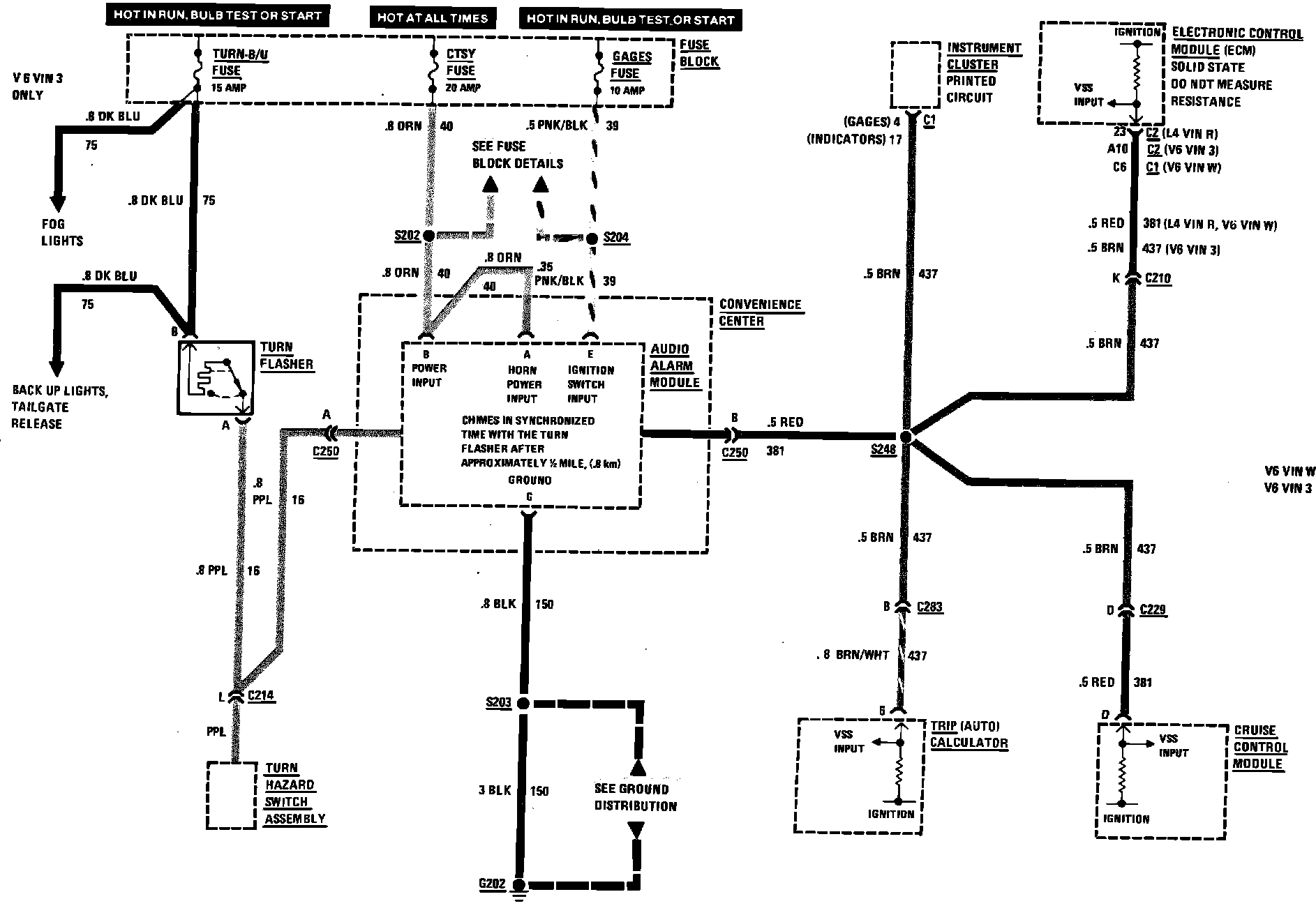

Turn Signal On Reminder Wiring Circuit. Less Digital Cluster:
