Home
>>
Oldsmobile
>>
1987
>>
Cutlass Ciera Cruiser V6-173 2.8L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Diagrams
>>
Electrical Diagrams
>>
ERLS Fuse
ERLS Fuse

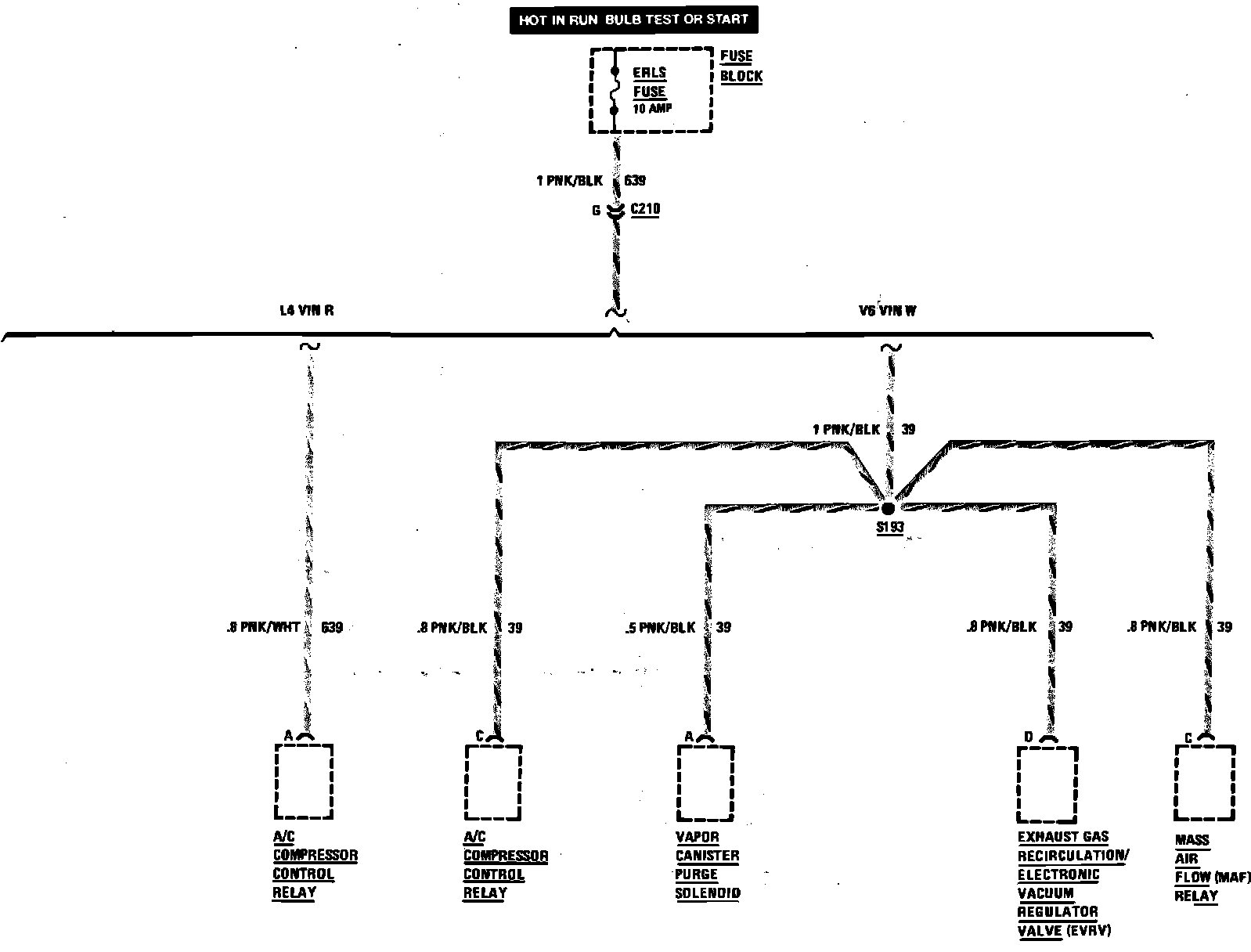

Fuse Block Details (ERLS Fuse). W/4-151/2.5L & V6-231/3.8L Engine:
