A/T - Service Manual Update
87olds2SUBJECT 1987 SERVICE MANUAL UPDATE - 200-4R NUMBER: 87-T-28
TRANSMISSIONS
DATE: June 9, 1987
MODELS/YEARS 1987 THM 200-4R EQUIPPED VEHICLES
SECTION: 7A

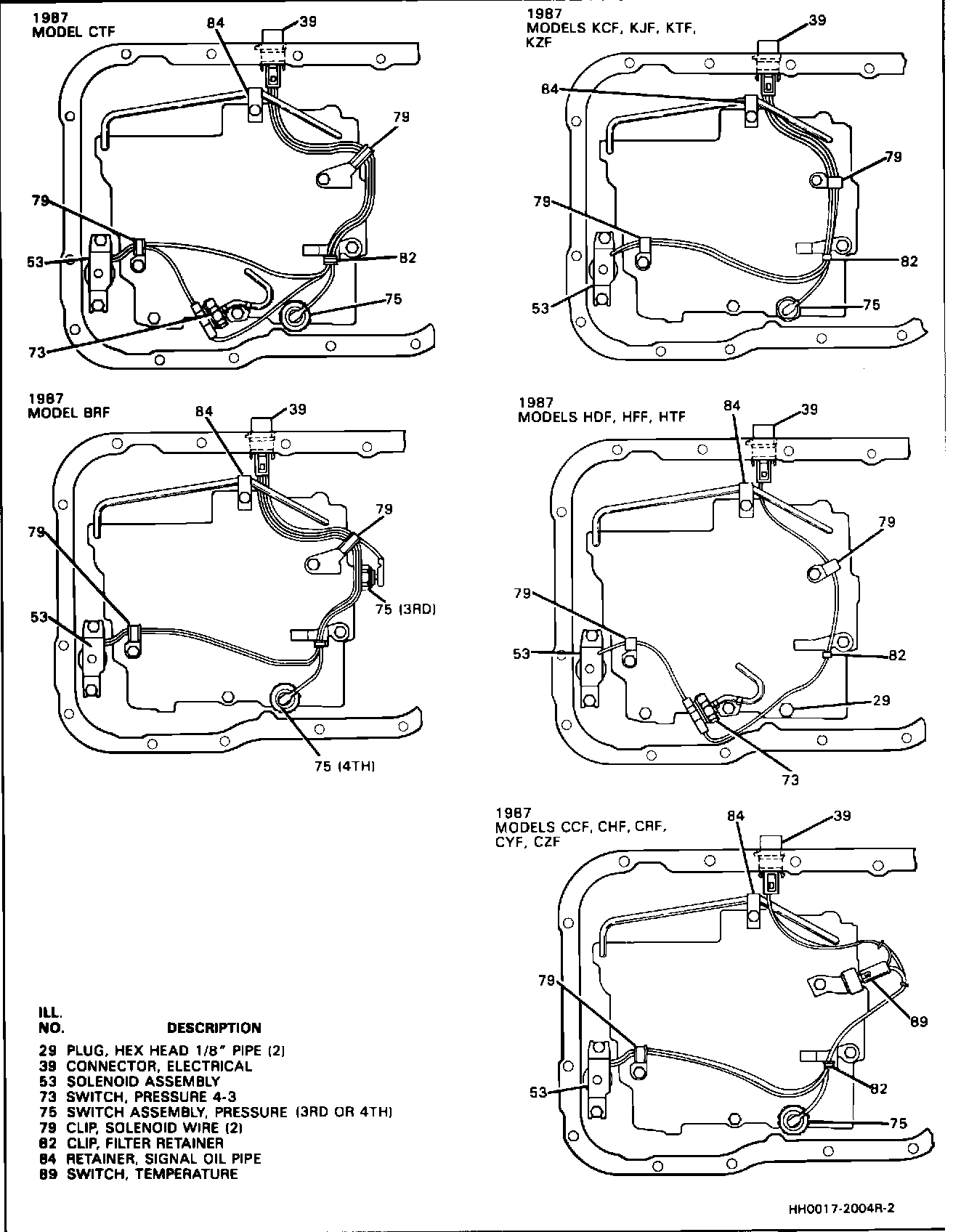

WIRING DIAGRAM:
The transmission electrical wiring diagram on Hydraulic Diagnosis page 200-4R-46 of the 1987 Cutlass Supreme, Cutlass Salon, Custom Cruiser Chassis Manual has been revised.
The new illustration updates wiring diagrams by transmission model usage. For non-Oldsmobile vehicles the addition of a temperature switch and 7CTF model is shown. Please update your manual with this revised page.
