PWR ACC Circuit Breaker
PWR ACC Circuit Breaker

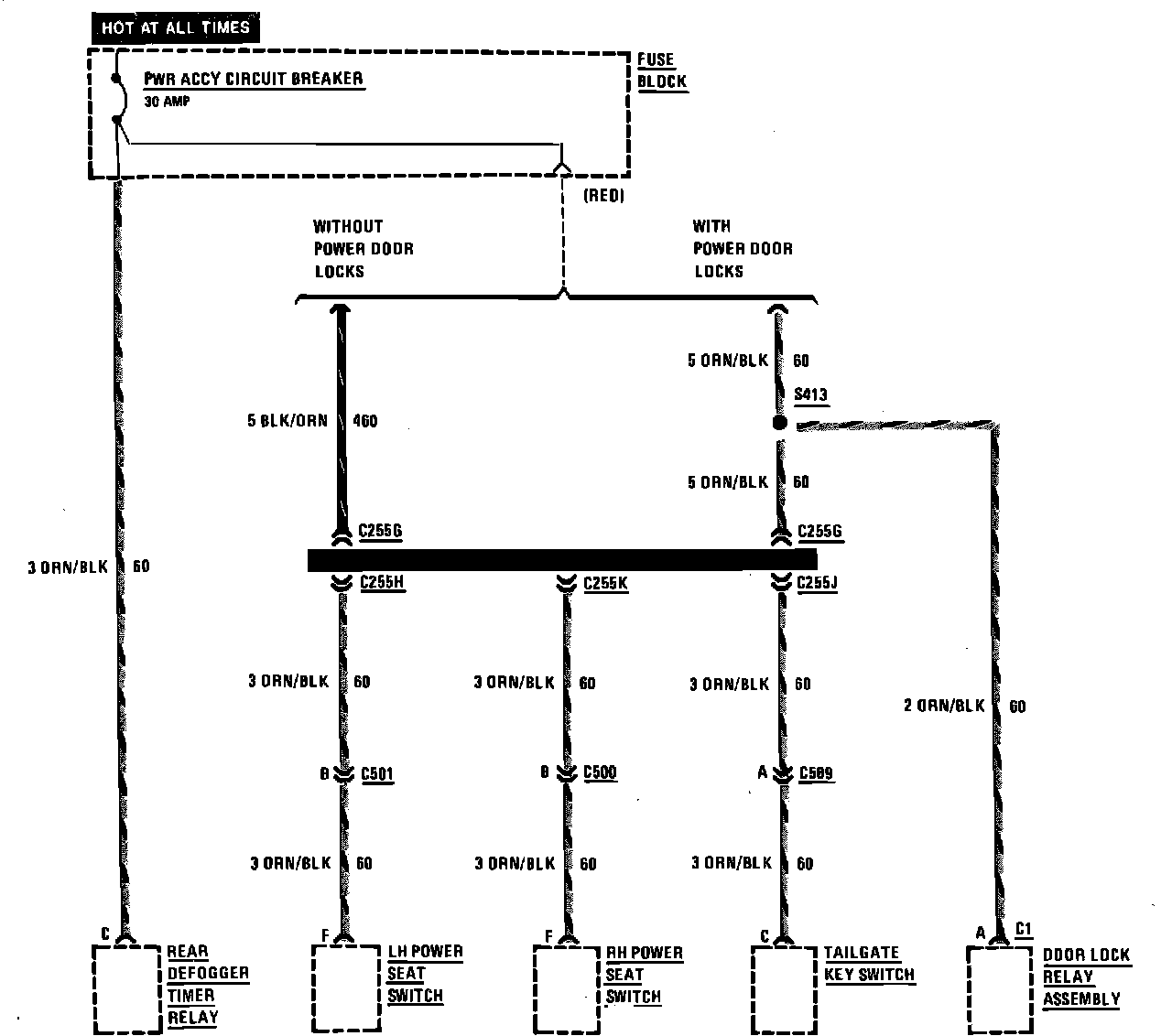

Fuse Block Details (Power Accessory Circuit Breaker):
